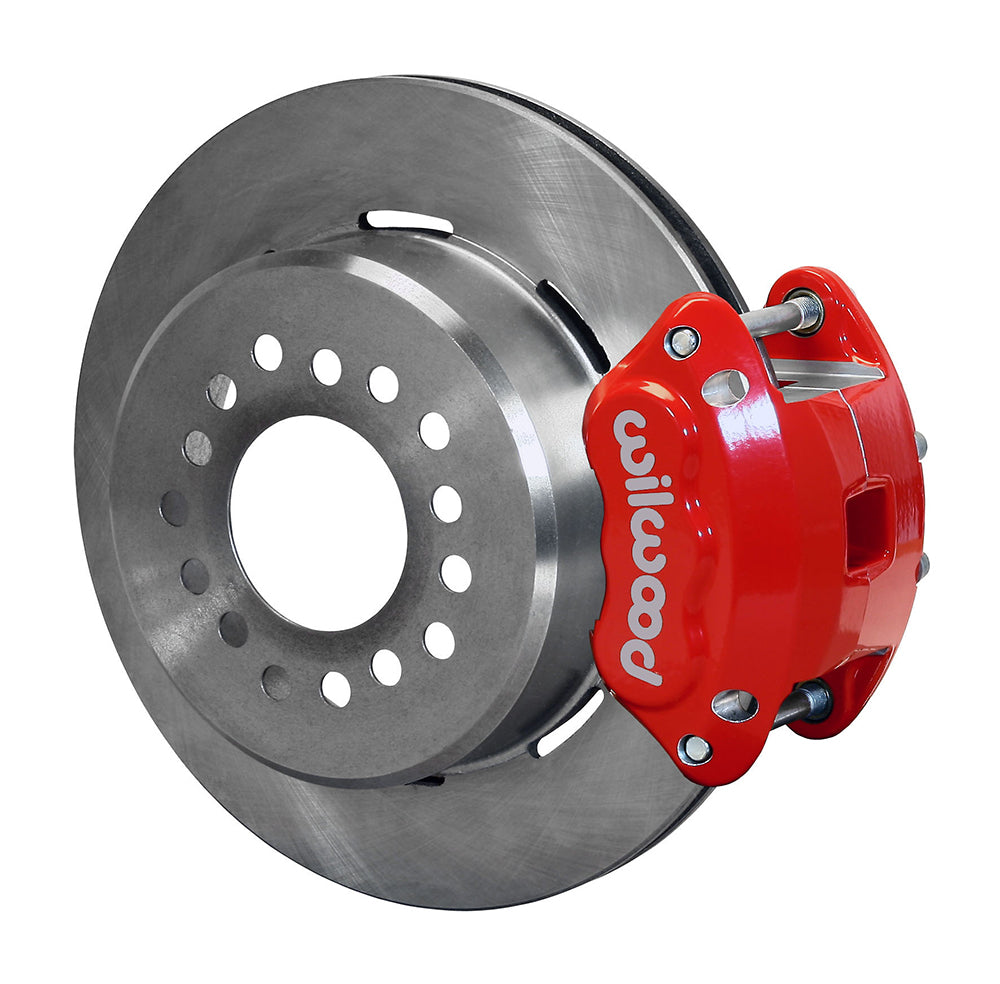

Wilwood Rear Plain-Rotor Brake Kit with Red D154 Calipers, Camaro/Chevelle/Apollo/Beaumont/442 1964–1974, Measured 12-Bolt C-Clip Rear End

This red Wilwood rear package supplies plain vented rotors, D154 calipers and internal parking-brake assemblies for a matching C-clip 12-bolt axle. The rotor diameter is 12.19 inches, with alignment based on the specified 2.75–2.81-inch axle offset. It is an axle-dependent conversion rather than a fit established by front suspension parts. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12215-R
• Type: D154 Rear Parking Brake Kit
• Calipers: D154; 2 pistons per caliper; Red Powder Coat; floating mounting.
• Piston bores: 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face; Iron; Plain finish.
• Rear housing end: 12 Bolt. Axle-flange offset: 2.75 - 2.81 inches.

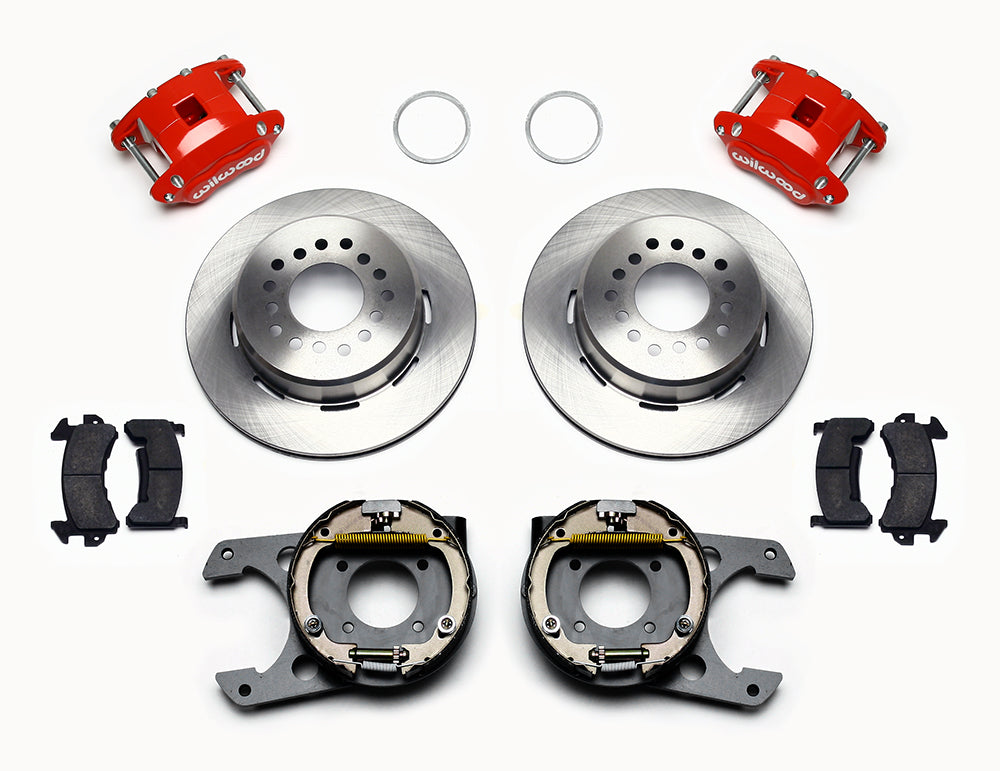

• Included: paired hydraulic calipers, pads, rotor/hat assemblies, internal parking-shoe assemblies and mounting components.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 16 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Confirm rear flange and bearing details against DS860 before using the Camaro, Chevelle, Apollo, Beaumont or 442 vehicle entries. Front Ridetech pin/hub spindle options in those rows do not identify the rear assembly and require clarification. Inspect wheel-stud diameter, axle-flange size and suspension clearance. Supply the parking-cable connections and brake hoses separately. The conditional 16-inch wheel requirement still needs a full profile check, including for any potential 15-inch fit.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
