Wilwood Rear D154 Parking Brake Kit, Chevrolet Chevelle/Camaro, Oldsmobile 442, Pontiac Beaumont and Buick Apollo (1964–1974), C-Clip 12-Bolt Axle, Black Calipers

This Wilwood rear package combines black D154 calipers, plain 12.19-inch rotors and internal parking-brake shoes for the specified C-clip 12-bolt axle. Its axle-flange offset range is 2.75–2.81 inches. The Chevrolet, Oldsmobile, Pontiac and Buick model entries must be checked for this rear geometry; their front drop-spindle details do not identify the rear axle. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12215
• Type: D154 Rear Parking Brake Kit

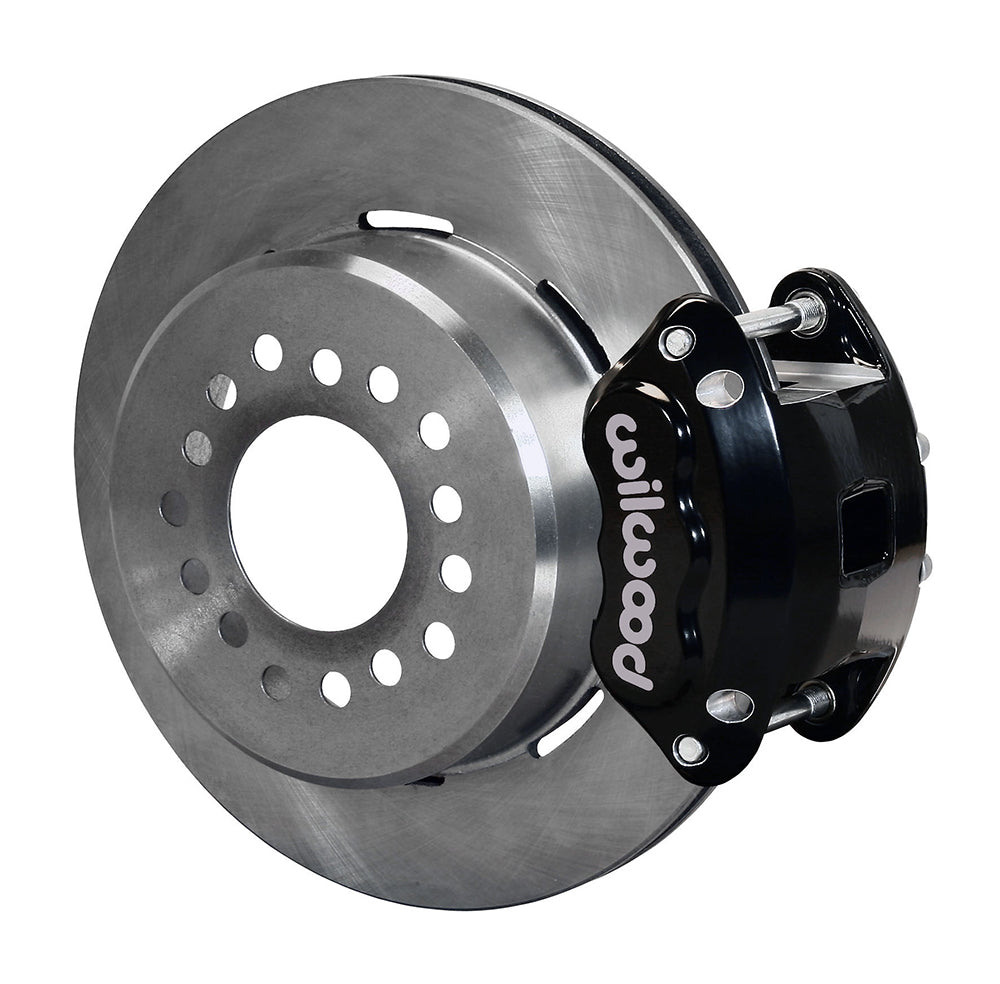

• Calipers: D154; 2 pistons per caliper; Black Powder Coat; floating mounting.
• Piston bores: 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face; Iron; Plain finish.
• Rear housing end: 12 Bolt. Axle-flange offset: 2.75 - 2.81 inches.

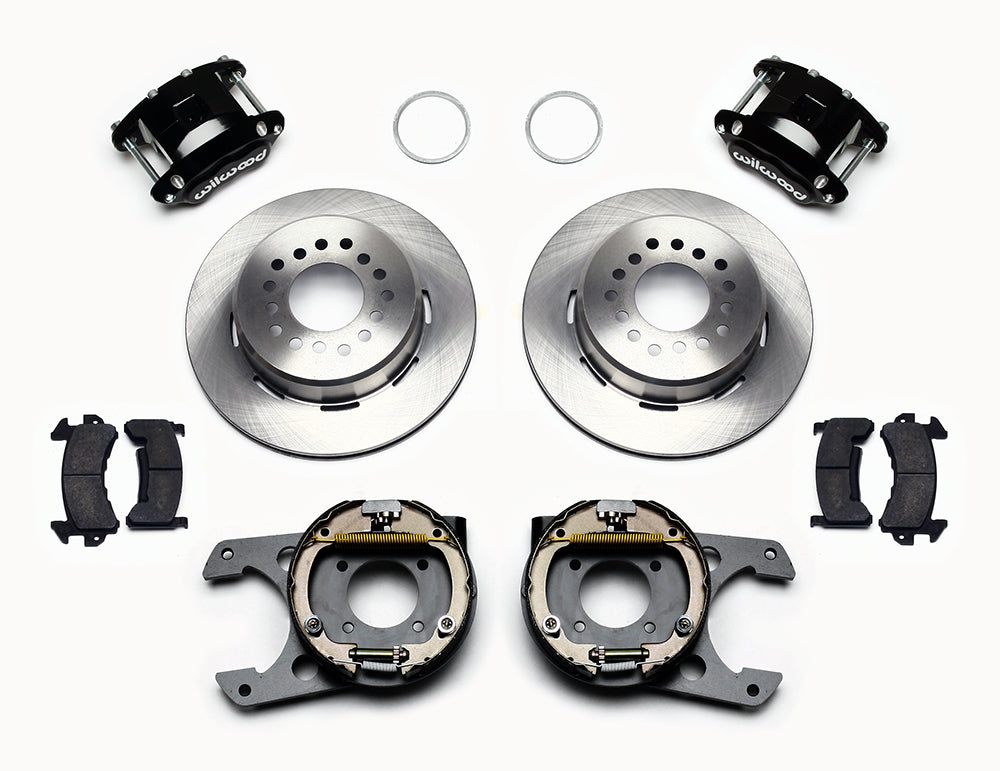

• Included: paired hydraulic calipers, pads, rotor/hat assemblies, internal parking-shoe assemblies and mounting components.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 16 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Read DS860 and measure the actual axle-end flange, bearing arrangement, rotor register and offset. The Chevelle, Camaro, 442, Beaumont and Apollo rows include front Ridetech spindle options, which cannot establish fitment of this rear conversion. Obtain confirmation of the rear assembly before ordering. Cable linkage and hydraulic hoses are separate. Use the conditional 16-inch wheel profile and assess any proposed 15-inch wheel individually; sufficient diameter does not guarantee spoke clearance.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
