Wilwood Rear Plain-Rotor Kit with Red D154 Calipers, Big Ford 2.36-Inch Offset; Lincoln Town Car 1990 Axle-Dependent Fit

This red Wilwood Big Ford package adds hydraulic disc brakes and internal parking shoes to the matching rear housing. Plain 12.19-inch rotors work with D154 calipers and BP-10 pads at a 2.36-inch axle offset. The listed 1990 Lincoln Town Car application must be reconciled with the actual axle before ordering. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12213-R
• Type: D154 Rear Parking Brake Kit

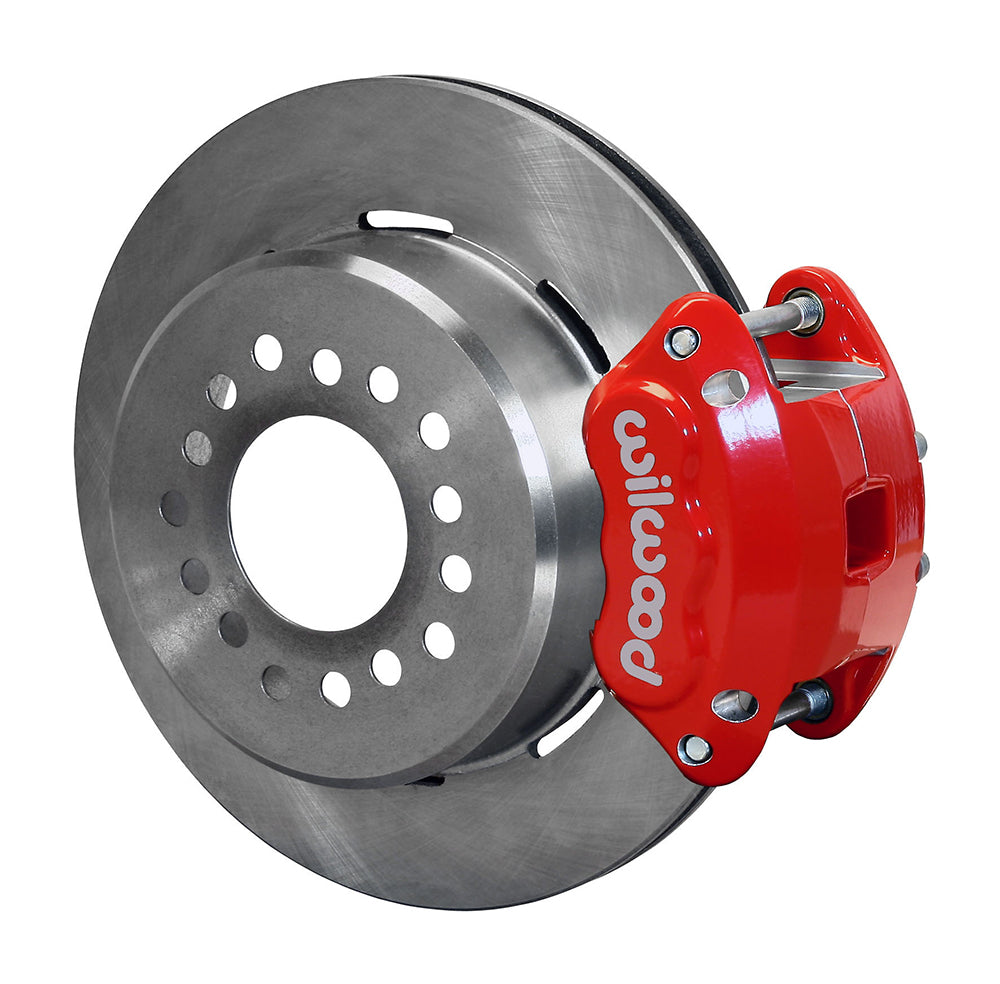

• Calipers: D154; 2 pistons per caliper; Red Powder Coat; floating mounting.
• Piston bores: 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face; Iron; Plain finish.
• Rear housing end: Big Ford. Axle-flange offset: 2.36 inches.

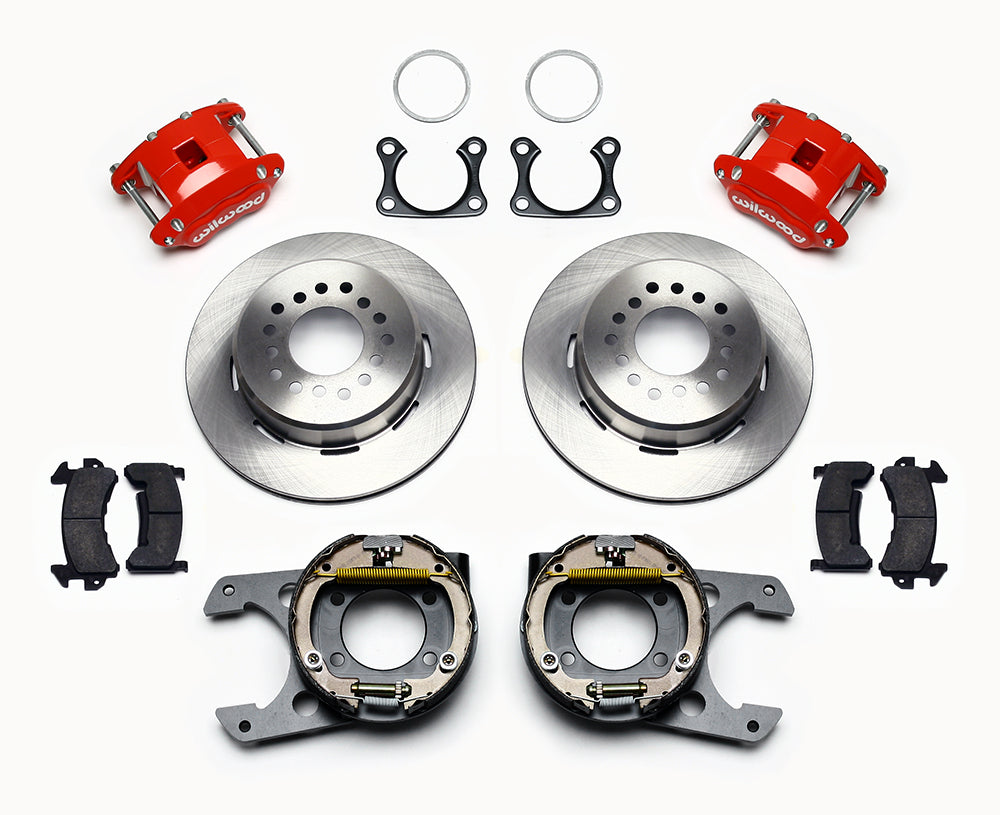

• Included: paired hydraulic calipers, pads, rotor/hat assemblies, internal parking-shoe assemblies and mounting components.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 16 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Use DS858 to identify the rear housing flange before relying on the Town Car application. Record the bearing and axle-offset measurements and ask Wilwood to confirm that the actual Lincoln rear assembly suits this package. The rotor hat must sit flush on the axle flange with its register properly located; correct stud size and unobstructed flange clearance are essential. Plan the parking-cable pull and return path independently from the hydraulic hose route. After mounting, adjust the internal shoes as directed and confirm the rotor rotates with the intended slight adjustment drag rather than a bound parking mechanism. Both cable and hydraulic plumbing are additional. Check the conditional 16-inch caliper envelope and individually assess any 15-inch wheel.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
