Wilwood Rear Red D154 Brake Conversion, Big Ford 2.36-Inch Axle Offset, Drilled/Slotted Rotors; Conditional Lincoln Town Car 1990

Red D154 calipers and SRP drilled/slotted rotors distinguish this Wilwood rear parking-brake package. The brackets are selected for a Big Ford housing end at 2.36-inch axle offset. The Town Car application is conditional on the physical rear assembly; the badge and year do not prove the required flange or bearing dimensions. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12213-DR
• Type: D154 Rear Parking Brake Kit
• Calipers: D154; 2 pistons per caliper; Red Powder Coat; floating mounting.
• Piston bores: 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat finish.
• Rear housing end: Big Ford. Axle-flange offset: 2.36 inches.

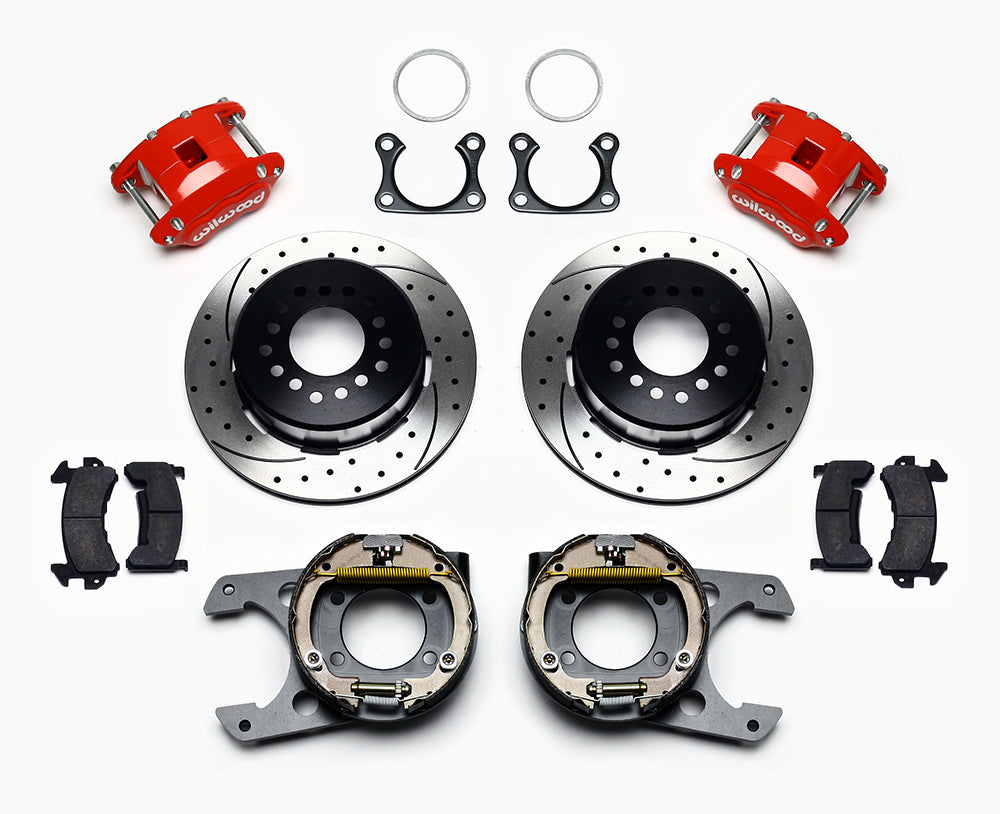

• Included: paired hydraulic calipers, pads, rotor/hat assemblies, internal parking-shoe assemblies and mounting components.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 16 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Verify the housing against DS858 and record the axle measurements before purchase. Manufacturer confirmation is needed for the listed 1990 Lincoln installation. Inspect the axle flange and studs, checking clearance around the shocks and the internal parking assembly. Parking cables and hydraulic hoses are additional. Use the conditional 16-inch wheel section to check the caliper envelope; selected 15-inch designs may work only when the complete drawing fits behind their spokes and inside the barrel.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
