Wilwood Rear SRP Conversion with Black D154 Calipers, Big Ford 2.36-Inch Axle Offset; Lincoln Town Car (1990) With Matching Axle

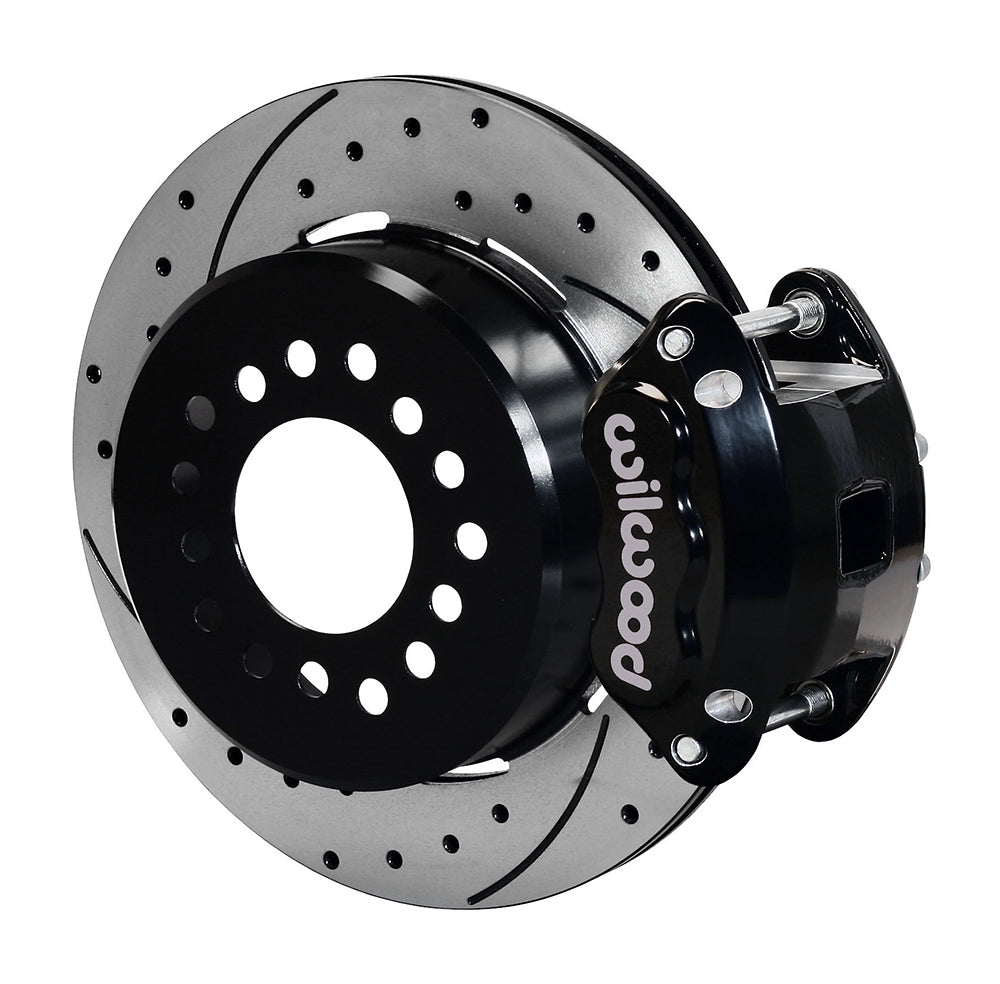

Black floating D154 calipers clamp drilled/slotted 12.19-inch rotors in this Wilwood Big Ford rear conversion. Parking shoes inside the rotor hats provide mechanical holding separately from the hydraulic calipers. This kit requires a 2.36-inch offset and matching bearing/flange layout, including for the conditional 1990 Town Car entry. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12213-D
• Type: D154 Rear Parking Brake Kit
• Calipers: D154; 2 pistons per caliper; Black Powder Coat; floating mounting.
• Piston bores: 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat finish.
• Rear housing end: Big Ford. Axle-flange offset: 2.36 inches.

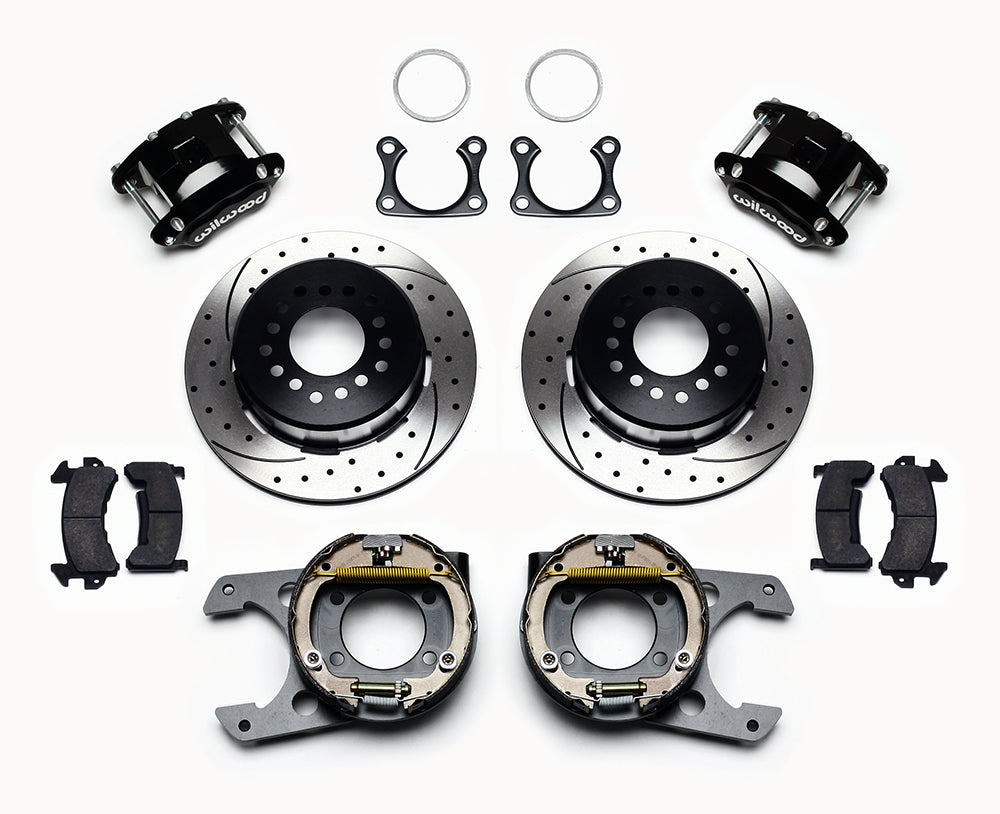

• Included: paired hydraulic calipers, pads, rotor/hat assemblies, internal parking-shoe assemblies and mounting components.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 16 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Inspect the rear end as an assembly of housing flange, retained bearing, axle register and wheel studs. Match it to DS858 and the worksheet; an axle's brand name does not establish its measured offset. Obtain confirmation of the listed Lincoln Town Car application from Wilwood before choosing the package. Check the rotor/hat envelope over the axle flange and locate the parking-brake bracket without suspension interference. Its mechanical cable needs a restrained route that allows the shoes to release, while the hydraulic hoses need room for suspension travel. Neither connection is supplied as a vehicle-specific system here. The conditional 16-inch wheel profile is the clearance reference, and a proposed 15-inch wheel must pass the same full section check.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
