Wilwood Rear Brake Conversion, 1990 Lincoln Town Car With Big Ford Housing and 2.36-Inch Axle Offset, Plain Rotors and Black D154 Calipers

This black Wilwood D154 rear package combines plain vented rotors with separate internal parking shoes for a Big Ford housing end. The specified axle-flange offset is 2.36 inches, which controls rotor and caliper alignment. Any listed 1990 Lincoln Town Car must be verified for that exact axle arrangement before the conversion is chosen. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12213
• Type: D154 Rear Parking Brake Kit

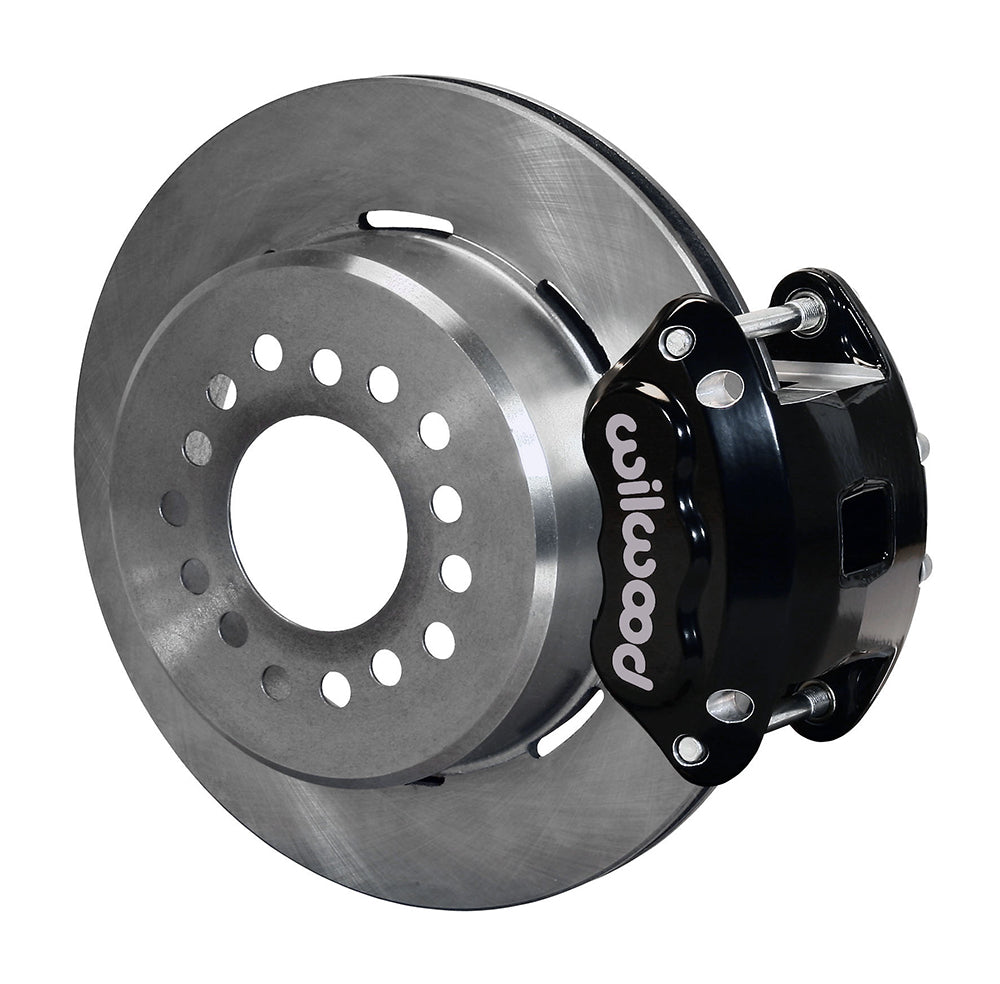

• Calipers: D154; 2 pistons per caliper; Black Powder Coat; floating mounting.
• Piston bores: 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face; Iron; Plain finish.
• Rear housing end: Big Ford. Axle-flange offset: 2.36 inches.

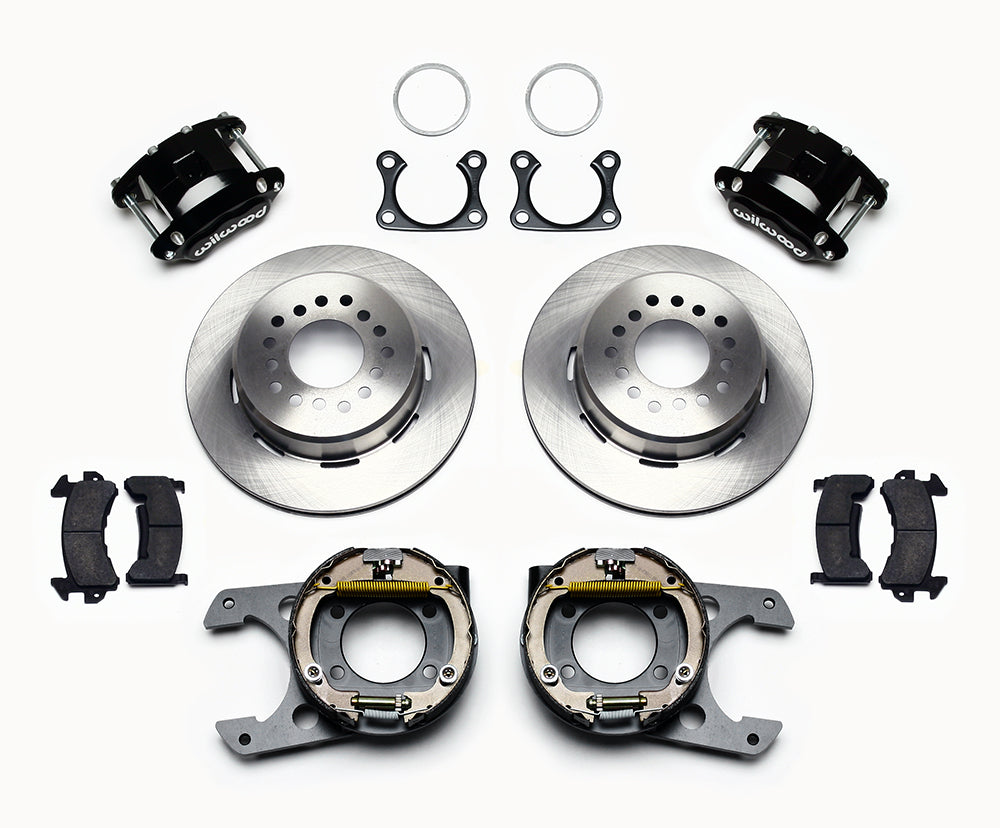

• Included: paired hydraulic calipers, pads, rotor/hat assemblies, internal parking-shoe assemblies and mounting components.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 16 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

First identify the housing-end flange and bearing arrangement using DS858, then measure the installed axle offset. Big Ford is a specific flange family, not a promise of fit for a Lincoln vehicle. The preserved Town Car year must be confirmed with Wilwood for the actual rear end before ordering. Inspect the axle flange for the hat's required clearance and verify the wheel-stud diameter. The bracket and parking-shoe assembly also needs space around the shocks; check that envelope before arranging the cable route. Supply the hydraulic hoses and parking linkage independently. When adjusting the parking shoes, follow the slight-drag procedure and establish full release. Compare the proposed wheel to the conditional 16-inch section, including any 15-inch design being considered.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
