Wilwood Rear Plain-Rotor Parking Brake Package, Red Calipers, Small Ford 2.66-Inch Offset; Lincoln Town Car 1990 Axle-Dependent Application

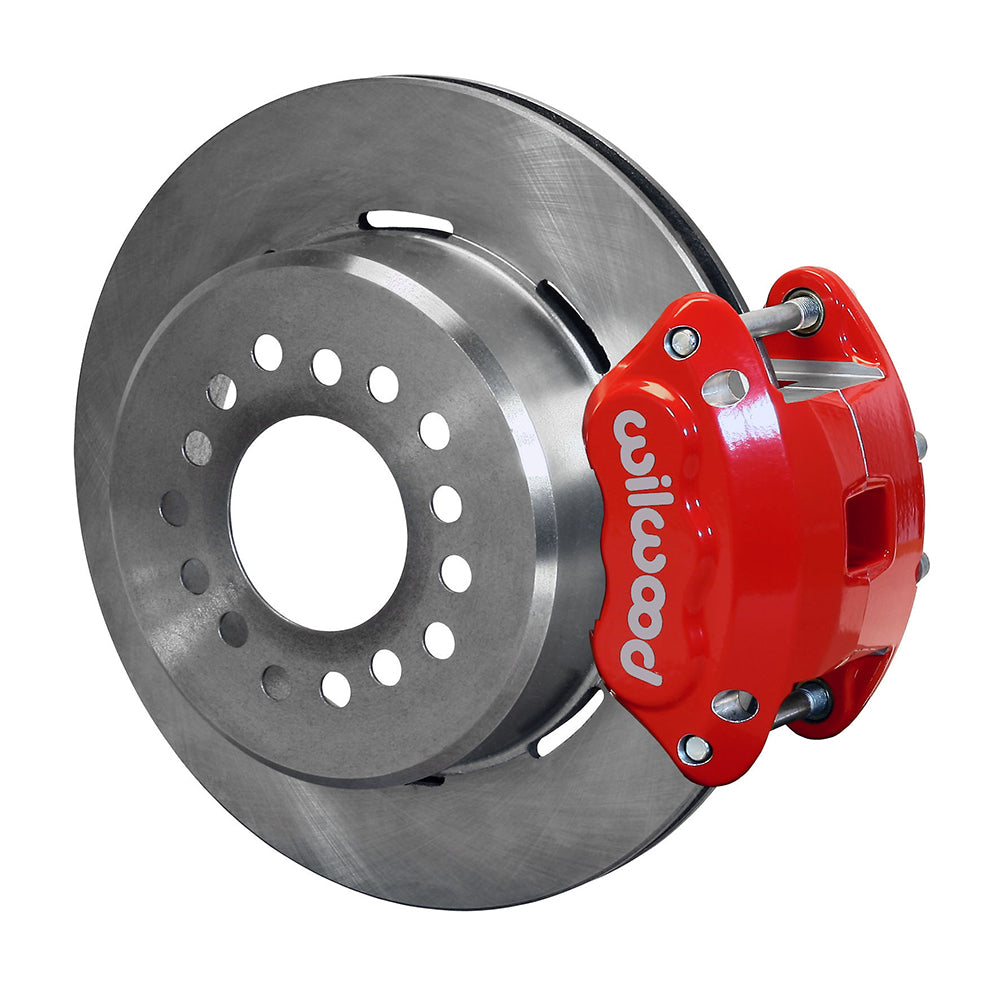

This red Wilwood Small Ford rear conversion pairs plain-face vented rotors with D154 calipers and an internal-drum parking brake. The rotor package measures 12.19 inches in diameter and is located by the specified 2.66-inch axle offset. A 1990 Town Car application requires confirmation of the measured rear assembly before this kit can be selected. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12210-R
• Type: D154 Rear Parking Brake Kit
• Calipers: D154; 2 pistons per caliper; Red Powder Coat; floating mounting.
• Piston bores: 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face; Iron; Plain finish.
• Rear housing end: Small Ford. Axle-flange offset: 2.66 inches.
• Included: paired hydraulic calipers, pads, rotor/hat assemblies, internal parking-shoe assemblies and mounting components.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 16 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Review DS855 with the axle accessible and measure its flange, bearing and register. Obtain Wilwood confirmation for the Lincoln application; the housing-end specification is more precise than the vehicle name. Check shock clearance and wheel-stud fit before assembling the parking-brake brackets. Cable connections and hydraulic lines are additional. The catalog lists a conditional 16-inch wheel size and allows some 15-inch wheels only when the complete clearance diagram fits their section.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
