Wilwood Rear Black Caliper/SRP Kit, Small Ford 2.66-Inch Axle Offset; Lincoln Town Car (1990) With Verified Housing

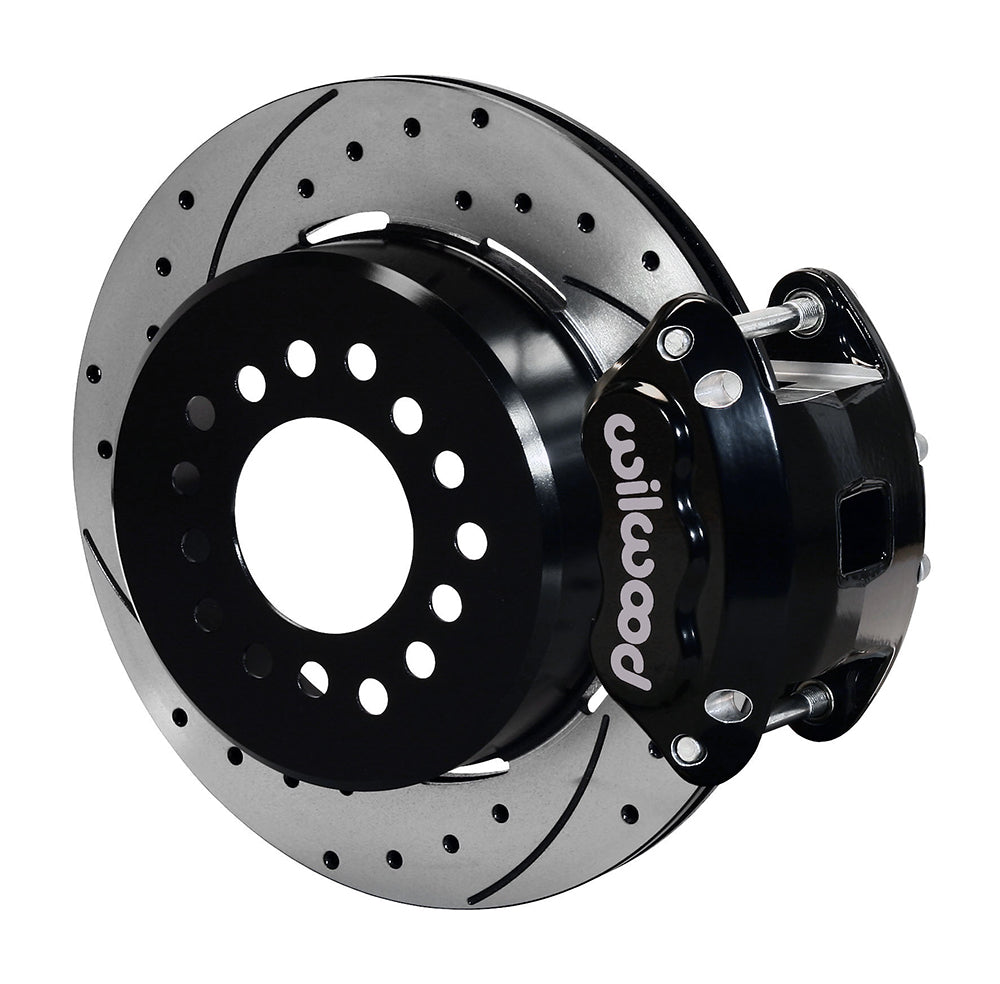

Drilled/slotted SRP rotors and black D154 calipers form this Wilwood Small Ford rear parking-brake kit. The 12.19-inch vented rotors, internal shoes and application brackets require a 2.66-inch axle-flange offset. The Town Car entry is a conditional vehicle reference that must not be treated as proof of standard 1990 axle fitment. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12210-D
• Type: D154 Rear Parking Brake Kit
• Calipers: D154; 2 pistons per caliper; Black Powder Coat; floating mounting.
• Piston bores: 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat finish.
• Rear housing end: Small Ford. Axle-flange offset: 2.66 inches.

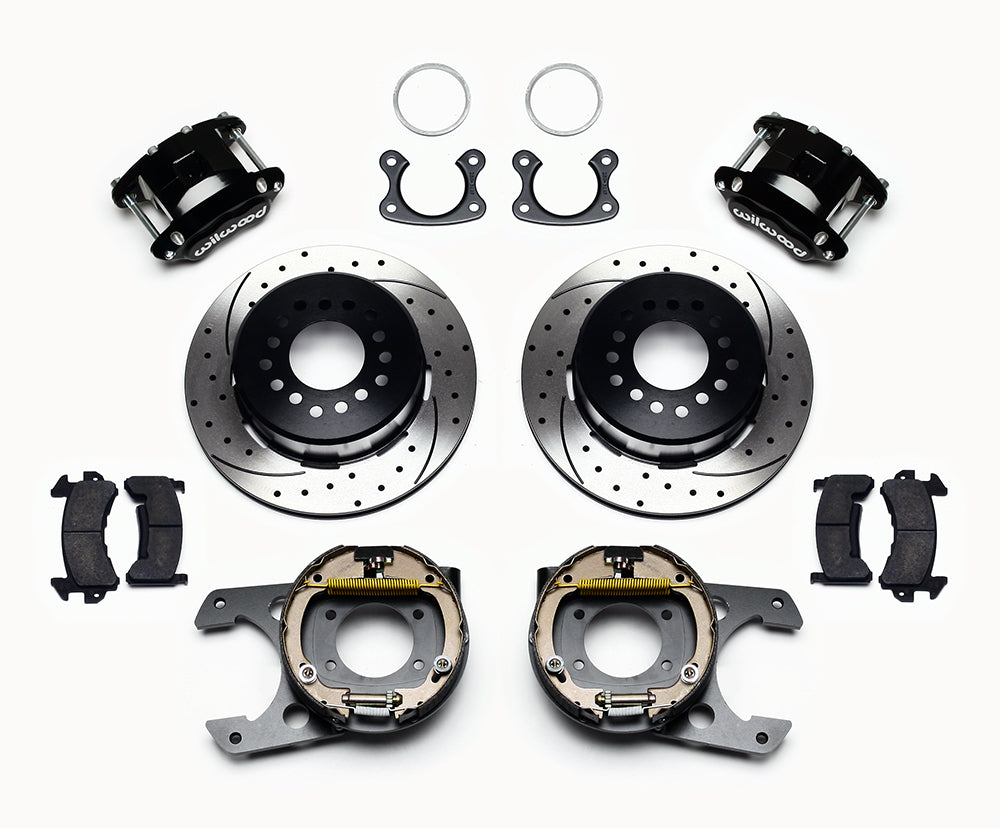

• Included: paired hydraulic calipers, pads, rotor/hat assemblies, internal parking-shoe assemblies and mounting components.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 16 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Match the rear bearing and housing-flange measurements to DS855, then verify the Town Car installation directly with Wilwood. The axle register and flange diameter must fit within the rotor hat, and the wheel studs must have the appropriate diameter and engagement. Arrange cable linkage and hydraulic hoses separately. Check the wheel's barrel and spoke space using the conditional 16-inch drawing. Some 15-inch wheels may clear only after the full template demonstrates it.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
