Wilwood Rear Drilled/Slotted D154 Conversion for Big Ford New Style, Black Calipers, 2.50-Inch Offset; Lincoln Town Car (1990), Axle Verification Required

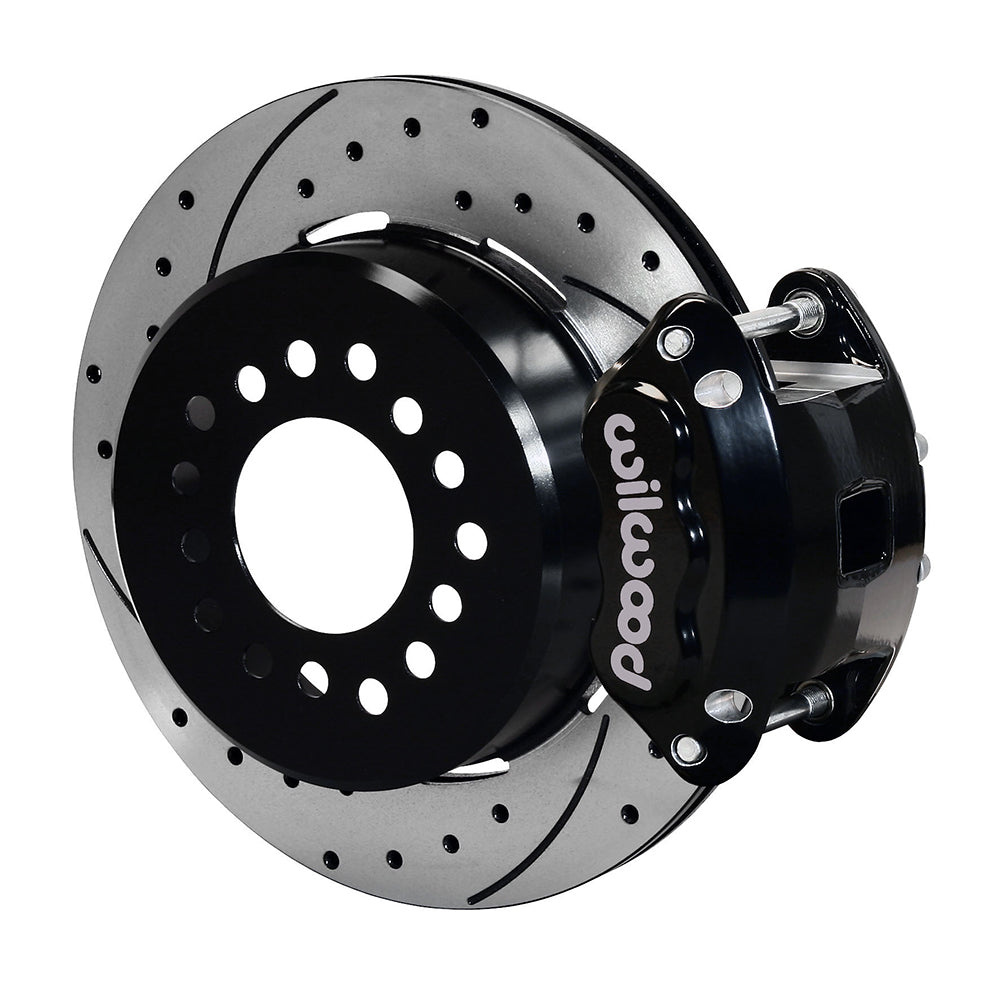

This Wilwood rear kit pairs black D154 calipers with drilled/slotted SRP rotors and internal parking-brake shoes. The 12.19-inch rotor package is built for a Big Ford New Style housing end at 2.50-inch axle offset. Any 1990 Lincoln Town Car installation depends on those measured axle details, not just the vehicle application name. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12209-D
• Type: D154 Rear Parking Brake Kit
• Calipers: D154; 2 pistons per caliper; Black Powder Coat; floating mounting.
• Piston bores: 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat finish.
• Rear housing end: Big Ford New Style. Axle-flange offset: 2.50 inches.

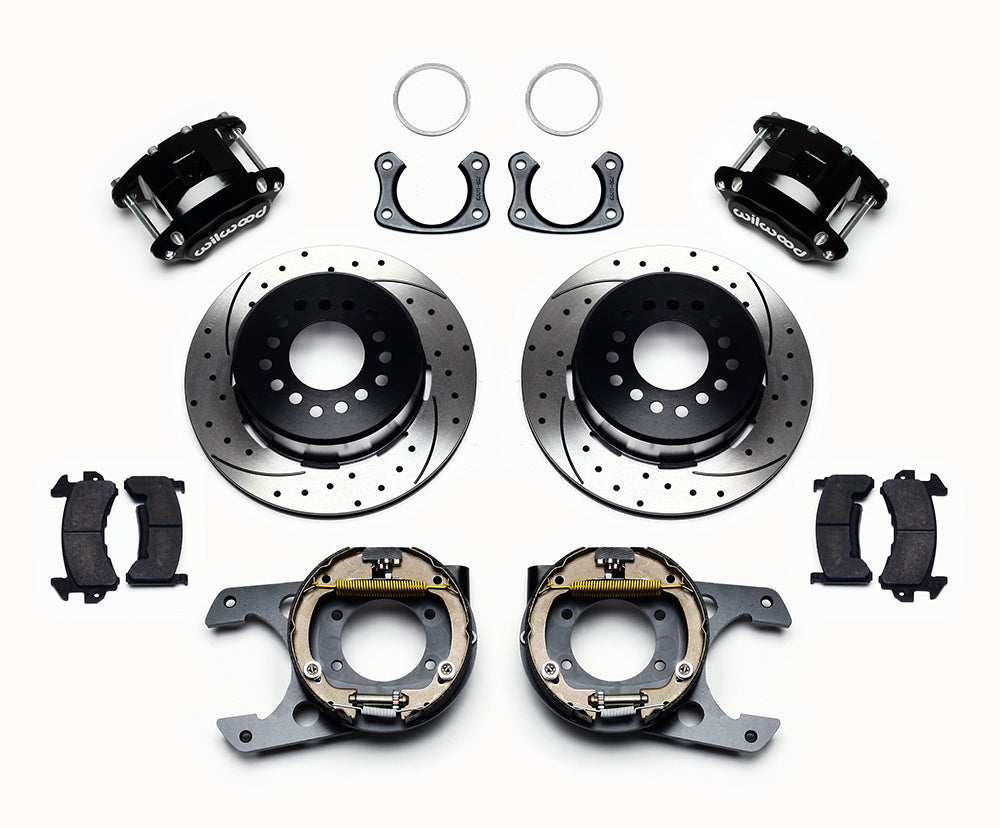

• Included: paired hydraulic calipers, pads, rotor/hat assemblies, internal parking-shoe assemblies and mounting components.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 16 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Compare the axle to DS854 before selecting this conversion. Establish bearing retention, housing flange dimensions and rotor register fit, and confirm the Town Car application with Wilwood. Wheel-stud size and axle-flange diameter must also suit the hats. The parking cables and brake hoses are separate installation items. Check the completed caliper/rotor section against the wheel template; the listed 16-inch minimum is conditional and does not exclude the need to measure a proposed 15-inch wheel.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
