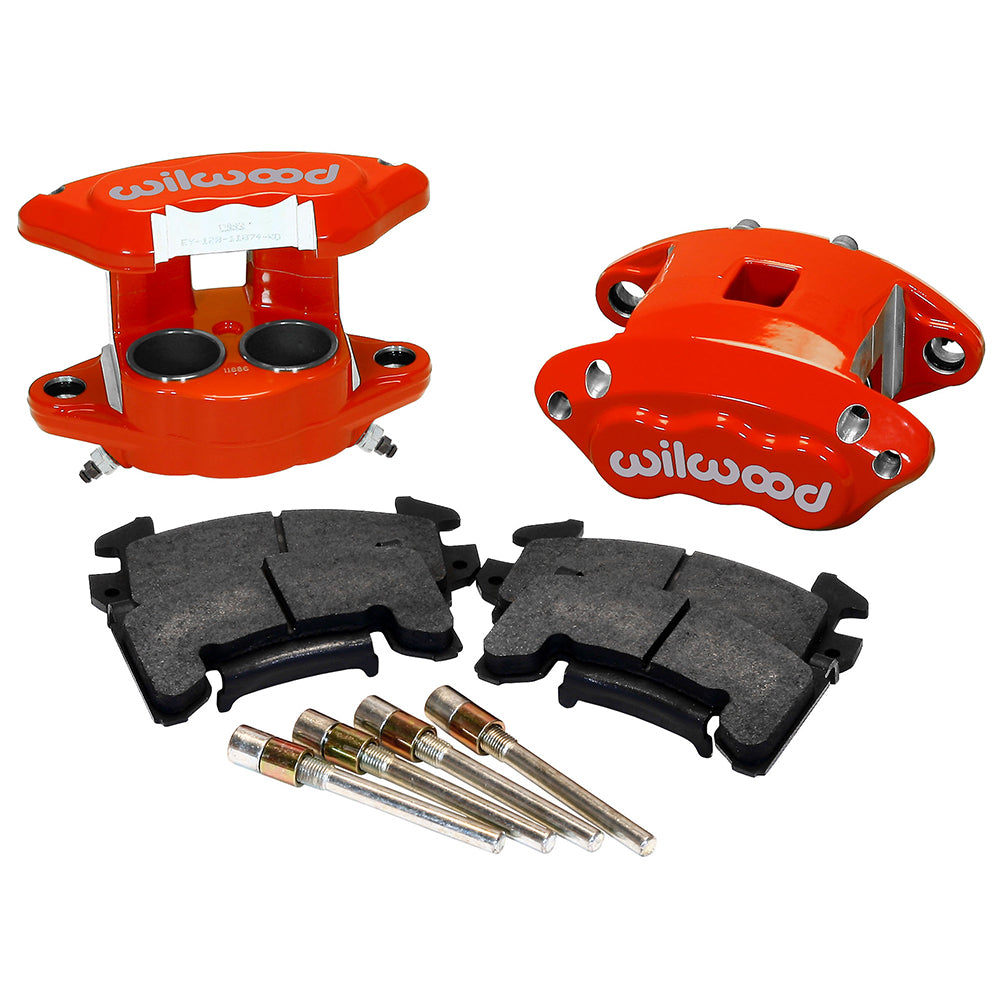

Wilwood Red Metric Front Brakes, 0.81-Inch Rotor Width, paired red calipers, pads and slide pins, closer product view

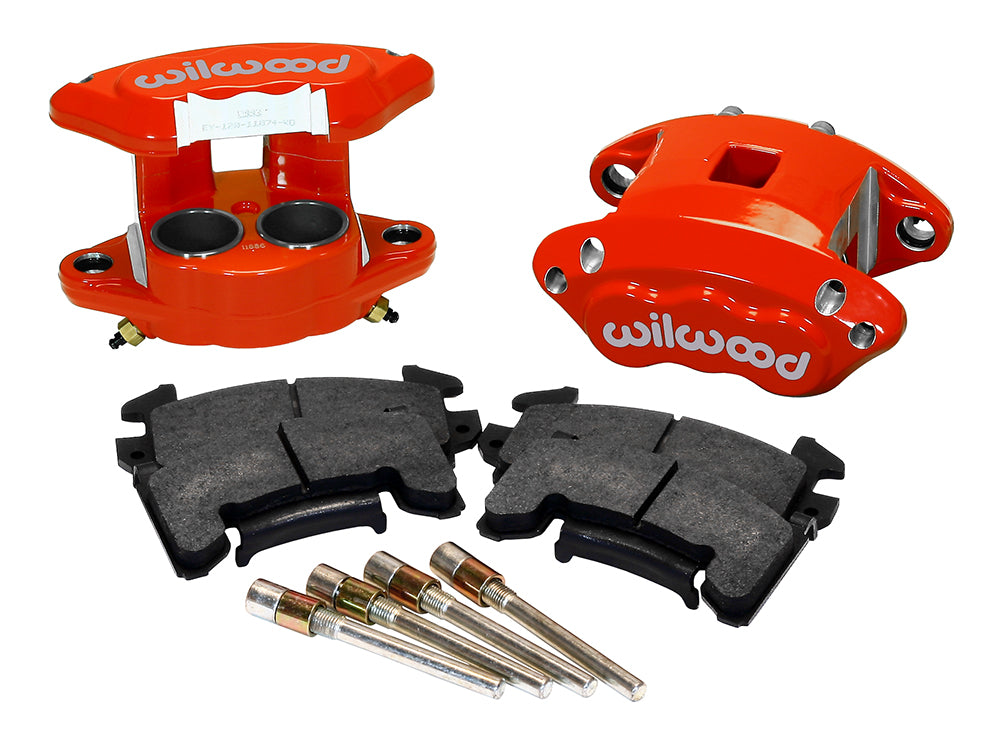

Wilwood Red Metric Front Brakes, 0.81-Inch Rotor Width, paired red calipers, pads and slide pins, wider product view
Wilwood Red Metric Front Brakes, 0.81-Inch Rotor Width, paired red calipers, pads and slide pins, closer product view
Wilwood Red Metric Front Brakes, 0.81-Inch Rotor Width, paired red calipers, pads and slide pins, wider product view

Wilwood Front Red Twin-Piston Brake Caliper Kit with Pads and Slide Pins, D154 Mount, 0.81-Inch Rotor Width

SKU: 140-12100-R

$501.07 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This red Wilwood front caliper kit is the 0.81-inch-wide rotor-width version of the twin-piston D154 arrangement. Two 1.62-inch stainless pistons operate in each floating caliper, with BP-10 pads and hardened slide pins included. It supplies the caliper-side components for a matching existing or engineered metric-mount brake system. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

  • Manufacturer part number: 140-12100-R
  • Type: D154 Front Caliper Kit
  • Calipers: D154; 2 pistons per caliper; Red Powder Coat; floating mounting.
  • Piston bores: 1.62, 1.62 inches; Stainless pistons. Included pad compound: BP-10.
  • Mating rotor width: 0.81 inches. Rotors, hubs, spindles and mounting brackets are not included; verify the existing or separately engineered D154 mount.
  • Hydraulic connection: M10 × 1.50 banjo inlet. Included package: paired calipers, BP-10 pads and hardened slide pins; hoses and sealing hardware are separate as required.

Fitment & Compatibility

Establish the rotor thickness and bracket geometry directly, then review DS843 for assembly. A D154 pad outline does not distinguish narrow and wide rotor configurations by itself. Confirm the selected piston area suits the master cylinder and rear brakes. The caliper uses an M10 × 1.50 banjo inlet, so inspect the hose end, sealing washers and routing. Separate serviceable rotors are required; check wheel clearance and the sliding mechanism before bleeding and controlled brake testing.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
