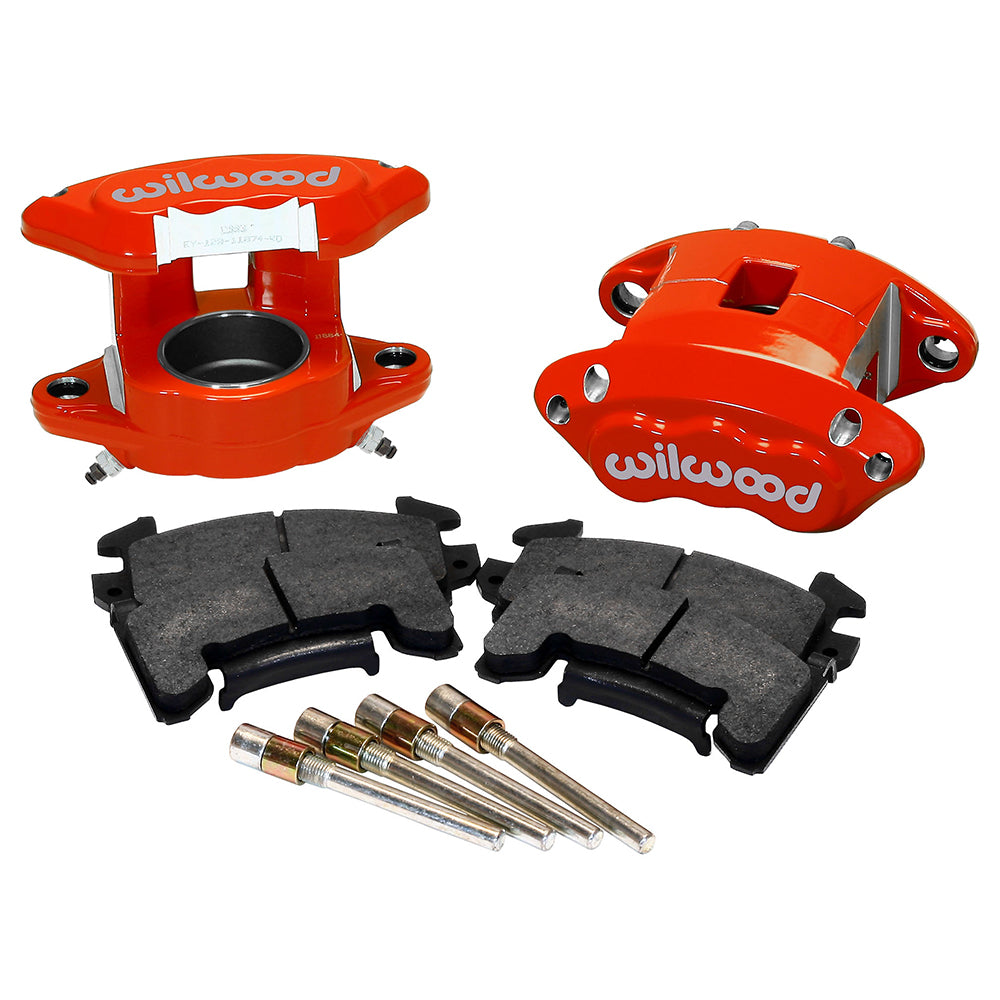

Wilwood Front Red D154 Brakes, 1.04-Inch Rotor Width, paired red calipers, pads and slide pins, closer product view

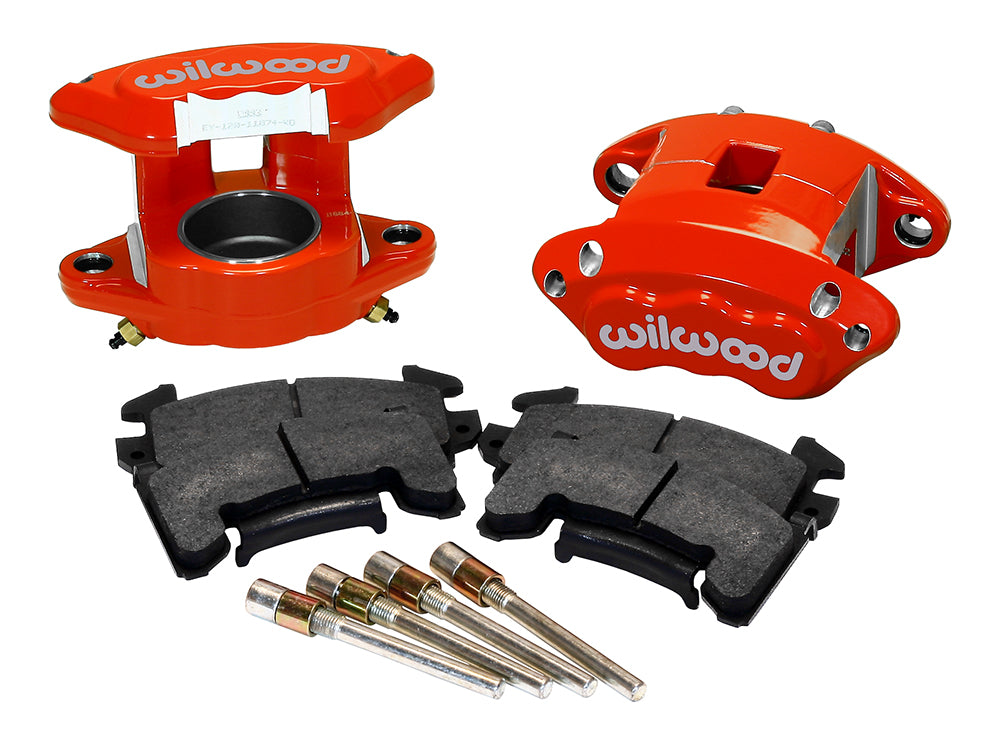

Wilwood Front Red D154 Brakes, 1.04-Inch Rotor Width, paired red calipers, pads and slide pins, wider product view
Wilwood Front Red D154 Brakes, 1.04-Inch Rotor Width, paired red calipers, pads and slide pins, closer product view
Wilwood Front Red D154 Brakes, 1.04-Inch Rotor Width, paired red calipers, pads and slide pins, wider product view

Wilwood Front Red Metric Brake Caliper Conversion, GM/Isuzu Applications 1977–2003, D154 Single-Piston 2.50-Inch Bores and BP-10 Pads

SKU: 140-12097-R

$501.07 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This red Wilwood front kit supplies a pair of D154 calipers, pads and hardened mounting slide pins for the specified metric mounts. The 2.50-inch single-piston version is selected for the matching front hydraulic arrangement and 1.04-inch-wide rotors. It is a caliper-and-pad replacement package; the existing rotors, hubs and spindle brackets are separate from its contents. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

  • Manufacturer part number: 140-12097-R
  • Type: D154 Front Caliper Kit
  • Calipers: D154; 1 piston per caliper; Red Powder Coat; floating mounting.
  • Piston bores: 2.50 inches; Stainless pistons. Included pad compound: BP-10.
  • Mating rotor width: 1.04 inches. Rotors, hubs, spindles and mounting brackets are not included; verify the existing or separately engineered D154 mount.
  • Hydraulic connection: M10 × 1.50 banjo inlet. Included package: paired calipers, BP-10 pads and hardened slide pins; hoses and sealing hardware are separate as required.

Fitment & Compatibility

Match the exact model, year and installed front brake system to DS840 and the table. Compact truck entries distinguish drivetrain and original rear-brake equipment, while several passenger-car rows require RWD. Check those conditions even if the caliper appears visually similar. Verify the M10 × 1.50 banjo connection and appropriate hose length. Inspect the retained rotor thickness and surface, confirm sliding-pin movement and measure wheel clearance before bleeding and testing the completed system.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.

California Proposition 65 warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1977 Oldsmobile Cutlass Supreme Brougham Brougham Disc Drum Front Kit 1, 2, 3
1977 Oldsmobile Cutlass Supreme Colonnade Colonnade Disc Drum Front Kit 1, 2, 3
1978 Buick Century Disc Brake Spindle Disc Drum Front Kit 1, 2, 3
1978 Buick Regal Disc Brake Spindle Disc Drum Front Kit 1, 2, 3
1978 Chevrolet El Camino All Disc Drum Front Kit 1, 2, 3
1978 Chevrolet Malibu Disc Brake Spindle Disc Drum Front Kit 1, 2, 3
1978 Chevrolet Monte Carlo Disc Brake Spindle Disc Drum Front Kit 1, 2, 3
1978-1987 GMC Caballero Base Base Disc Drum Front Kit 4, 1, 2, 3
1978-1987 GMC Caballero Diablo Diablo Disc Drum Front Kit 4, 1, 2, 3
1978-1980 GMC Caballero Laredo Laredo Disc Drum Front Kit 4, 1, 2, 3
1978 Oldsmobile Cutlass Disc Brake Spindle Disc Drum Front Kit 1, 2, 3
1978 Oldsmobile Cutlass Supreme Disc Brake Spindle Disc Drum Front Kit 1, 2, 3
1978 Pontiac Grand Am Disc Brake Spindle Disc Drum Front Kit 2, 3
1978 Pontiac Grand Prix Disc Brake Spindle Disc Drum Front Kit 1, 2, 3
1978 Pontiac LeMans Disc Brake Spindle Disc Drum Front Kit 1, 2, 3
1979-1981 Buick Century All Disc Drum Front Kit 4, 1, 2, 3
1979-1987 Buick Regal All Disc Drum Front Kit 4, 1, 2, 3
1979-1985 Buick Riviera Disc Brake Rear Disc Disc Front Kit 2, 3
1979-1985 Buick Riviera Drum Brake Rear Disc Drum Front Kit 2, 3
1979-1985 Cadillac Eldorado All Disc Disc Front Kit 2, 3
1979-1987 Chevrolet El Camino All Disc Drum Front Kit 4, 1, 2, 3
1979-1983 Chevrolet Malibu All Disc Drum Front Kit 4, 1, 2, 3
1979-1988 Chevrolet Monte Carlo All Disc Drum Front Kit 4, 1, 2, 3
1979 Oldsmobile Cutlass Vista Cruiser Vista Cruiser Disc Drum Front Kit 4, 1, 2, 3
1979-1984 Oldsmobile Cutlass Calais Base Base Disc Drum Front Kit 4, 1, 2, 3
1979, 1985-1986 Oldsmobile Cutlass Salon 442 442 Disc Drum Front Kit 4, 1, 2, 3
1979-1980, 1985-1987 Oldsmobile Cutlass Salon Base Base Disc Drum Front Kit 4, 1, 2, 3
1979-1980 Oldsmobile Cutlass Salon Brougham Brougham Disc Drum Front Kit 4, 1, 2, 3
1979 Oldsmobile Cutlass Salon Hurst Hurst Disc Drum Front Kit 4, 1, 2, 3
1979-1987 Oldsmobile Cutlass Supreme Base Base Disc Drum Front Kit 4, 1, 2, 3
1979-1981 Oldsmobile Cutlass Supreme Brougham Brougham Disc Drum Front Kit 4, 1, 2, 3
1979-1985 Oldsmobile Toronado Disc Brake Rear Disc Disc Front Kit 2, 3
1979-1985 Oldsmobile Toronado Drum Brake Rear Disc Drum Front Kit 2, 3
1979-1980 Pontiac Grand Am All Disc Drum Front Kit 2, 3
1979-1987 Pontiac Grand Prix All Disc Drum Front Kit 4, 1, 2, 3
1979-1980 Pontiac LeMans All Disc Drum Front Kit 4, 1, 2, 3
1980-1985 Cadillac Seville All Disc Disc Front Kit 2, 3
1980 Oldsmobile Cutlass Base Base Disc Drum Front Kit 4, 1, 2, 3
1980-1982 Oldsmobile Cutlass Cruiser All Disc Drum Front Kit 2, 3
1981-1986 GMC Caballero Amarillo Amarillo Disc Drum Front Kit 4, 1, 2, 3
1981 GMC Caballero Conquista Conquista Disc Drum Front Kit 4, 1, 2, 3
1981 GMC Caballero Royal Knight Royal Knight Disc Drum Front Kit 4, 1, 2, 3
1981 Oldsmobile Cutlass Brougham Brougham Disc Drum Front Kit 4, 1, 2, 3
1981 Oldsmobile Cutlass Supreme LS LS Disc Drum Front Kit 4, 1, 2, 3
1981 Pontiac LeMans All (Canada) Disc Drum Front Kit 4, 1, 2, 3
1982-1987 Chevrolet Camaro Disc Brake Rear Disc Disc Front Kit 1, 2, 3
1982-1987 Chevrolet Camaro Drum Brake Rear Disc Drum Front Kit 1, 2, 3
1982 Chevrolet S10 Pickup All Disc Drum Front Kit 4, 1, 2, 3
1982 GMC S15 All Disc Drum Front Kit 4, 1, 2, 3
1982-1987 Pontiac Bonneville All Disc Drum Front Kit 4, 1, 2, 3
1982-1987 Pontiac Firebird Disc Brake Rear Disc Disc Front Kit 1, 2, 3
1982-1987 Pontiac Firebird Drum Brake Rear Disc Drum Front Kit 1, 2, 3
1982-1983 Pontiac Grand LeMans Base Base Disc Drum Front Kit 4, 2, 3
1982-1983 Pontiac Grand LeMans BR BR Disc Drum Front Kit 4, 2, 3
1983-1997 Chevrolet S10 Blazer 4 x 2 Disc Drum Front Kit 4, 1, 2, 3
1983, 1990-1996 Chevrolet S10 Blazer 4 x 4 Disc Drum Front Kit 2, 3
1983-1996 Chevrolet S10 Pickup 4 x 2 Disc Drum Front Kit 4, 1, 2, 3
1983, 1990-1996 Chevrolet S10 Pickup 4 x 4 Disc Drum Front Kit 2, 3
1983-1990 GMC S15 4 x 2 Disc Drum Front Kit 4, 1, 2, 3
1983, 1990 GMC S15 4 x 4 Disc Drum Front Kit 2, 3
1983-1991 GMC S15 Jimmy 4 x 2 Disc Drum Front Kit 4, 1, 2, 3
1983, 1990-1991 GMC S15 Jimmy 4 x 4 Disc Drum Front Kit 2, 3
1983-1984 Oldsmobile Cutlass Calais Hurst Hurst Disc Drum Front Kit 4, 1, 2, 3
1983 Oldsmobile Cutlass Cruiser All Disc Drum Front Kit 4, 2, 3
1984-1987 Buick Regal Grand National Grand National Disc Drum Front Kit 4, 1, 2, 3
1984-1989 Chevrolet S10 Blazer 4 x 4 Disc Drum Front Kit 4, 1, 2, 3
1984-1989 Chevrolet S10 Pickup 4 x 4 Disc Drum Front Kit 4, 1, 2, 3
1984-1989 GMC S15 4 x 4 Disc Drum Front Kit 4, 1, 2, 3
1984-1989 GMC S15 Jimmy 4 x 4 Disc Drum Front Kit 4, 1, 2, 3
1987 Oldsmobile Cutlass Supreme 442 442 Disc Drum Front Kit 4, 1, 2, 3
1988-1992 Chevrolet Camaro OE Single Piston Caliper Spindles, Disc Brake Rear Disc Disc Front Kit 1, 2, 3
1988-1992 Chevrolet Camaro OE Single Piston Caliper Spindles, Drum Brake Rear Disc Drum Front Kit 1, 2, 3
1988 Oldsmobile Cutlass Supreme RWD only Disc Drum Front Kit 4, 1, 2, 3
1988-1992 Pontiac Firebird OE Single Piston Caliper Spindles, Disc Brake Rear Disc Disc Front Kit 1, 2, 3
1988-1992 Pontiac Firebird OE Single Piston Caliper Spindles, Drum Brake Rear Disc Drum Front Kit 1, 2, 3
1991-1996 GMC Sonoma 4 x 2 Disc Drum Front Kit 4, 1, 2, 3
1991-1996 GMC Sonoma 4 x 4 Disc Drum Front Kit 2, 3
1991 GMC Syclone All Disc Drum Front Kit 2, 3
1991-1994, 1996 Oldsmobile Bravada All Disc Drum Front Kit 2, 3
1992-1997 GMC Jimmy 4 x 2 Disc Drum Front Kit 4, 1, 2, 3
1992-1996 GMC Jimmy 4 x 4 Disc Drum Front Kit 2, 3
1992-1993 GMC Typhoon All Disc Drum Front Kit 2, 3
1996-2000 Isuzu Hombre 4 x 2 Disc Drum Front Kit 4, 1, 2, 3
1997 Chevrolet S10 Blazer 4 x 4, w/o AWD, w/ Drum Rear Disc Drum Front Kit 2, 3
1997-2003 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear Disc Drum Front Kit 4, 1, 2, 3
1997 Chevrolet S10 Pickup 4 x 4, w/o AWD, w/ Drum Rear Disc Drum Front Kit 2, 3
1997 GMC Jimmy 4 x 4, w/o AWD Disc Drum Front Kit 2, 3
1997-2002 GMC Sonoma 4 x 2 w/ Drum Rear Brake Disc Drum Front Kit 4, 1, 2, 3
1997 GMC Sonoma 4 x 4, w/o AWD Disc Drum Front Kit 2, 3
2003 Chevrolet S10 Pickup 4 x 2 w/ Disc Brake Rear Disc Disc Front Kit 4, 1, 2, 3
2003 GMC Sonoma 4 x 2 w/ Disc Brake Rear Disc Disc Front Kit 4, 1, 2, 3
2003 GMC Sonoma 4 x 2 w/ Drum Rear Disc Drum Front Kit 4, 1, 2, 3
