Product details

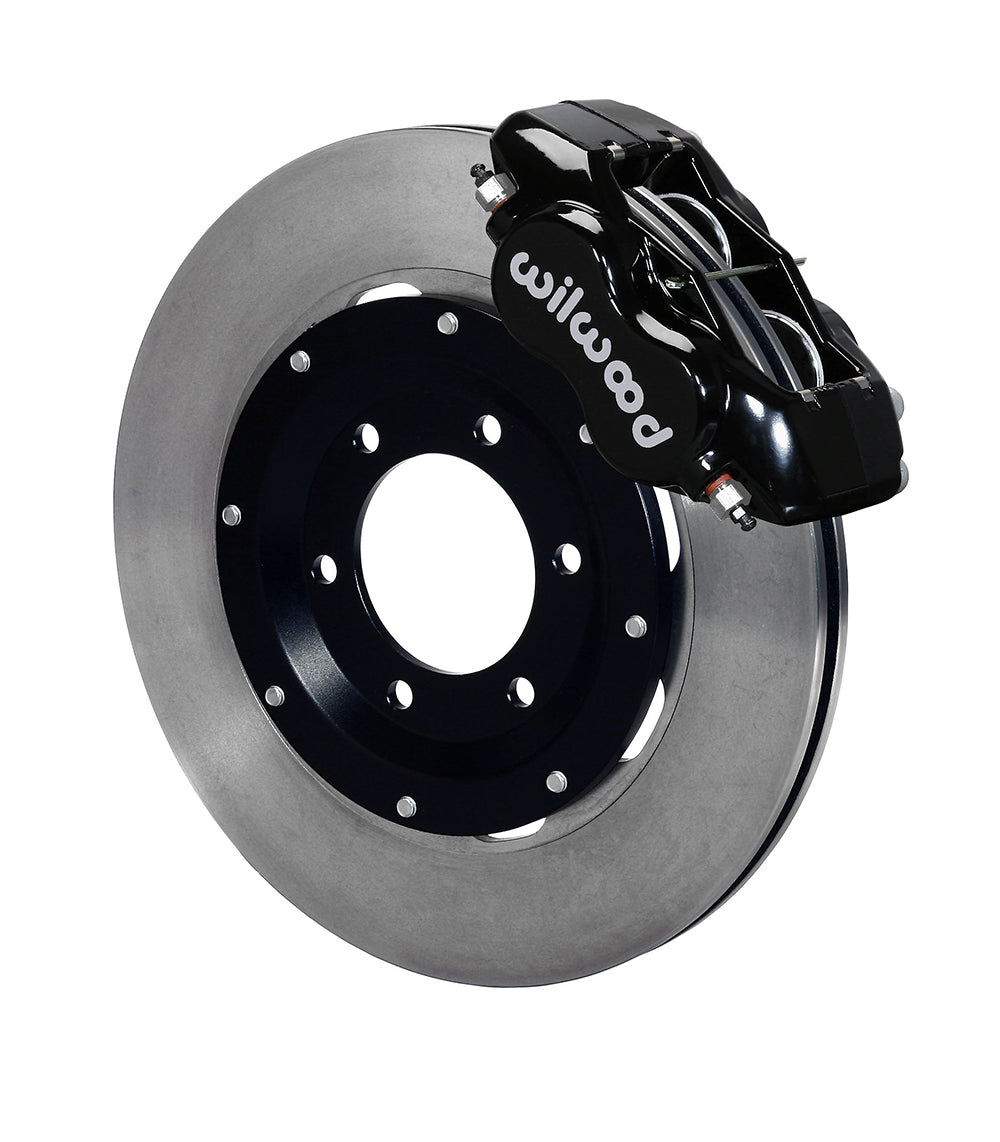

This Wilwood front kit is specified for the Shelby CSX6000 brake and upright arrangement. Black four-piston Dynalite calipers work with 12.19-inch plain vented rotors, rotor adapters and BP-10 pads. The current manufacturer component specification and DS1155 identify the rotor diameter for this conversion. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 140-12063
- Type: Forged Dynalite Big Brake Front Brake Kit (Hat)
- Calipers: Forged Dynalite Internal; 4 pistons per caliper; Black Powder Coat; lug mounting.
- Piston bores: 1.75, 1.75 inches; Stainless pistons. Included pad compound: BP-10.
- Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face; Spec-37 Iron; Plain finish.

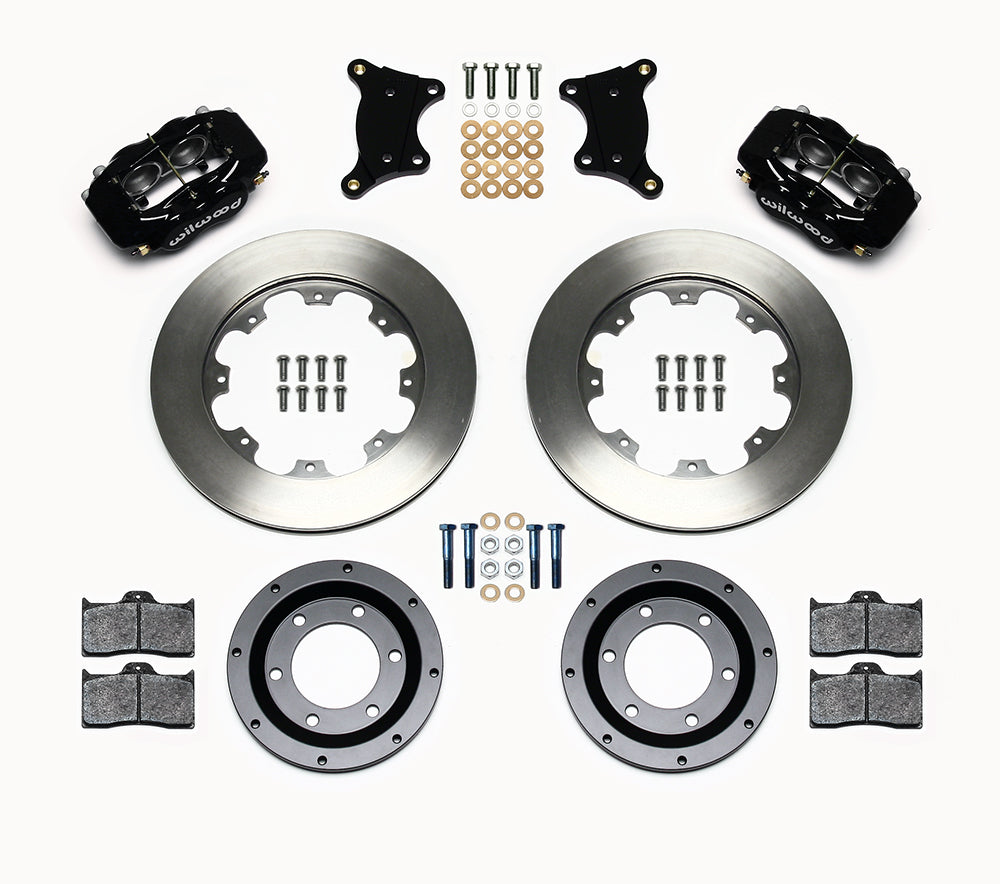

- Included: paired service calipers, pads, rotors, rotor adapters, brackets and assembly hardware.
- Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
- Conditional minimum wheel diameter: 15 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.
Fitment & Compatibility
Check the actual Shelby CSX6000 front upright, hub and wheel arrangement against DS1155. The kit does not establish fitment for every Cobra replica or a car built with different donor suspension parts. Keep the original hubs only when they meet the required geometry and condition, and verify the rotor-adapter fit and caliper alignment. The conditional minimum wheel diameter is 15 inches, with spoke shape still decisive. Confirm hose connections and hydraulic balance for the completed car before installation and testing. DS1155 also requires the two steering-arm bracket holes to be drilled to the specified dimension before mounting.
Wilwood installation documents: Installation instructions.
PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
