Wilwood Front Brake and Hub Package, Red Calipers, Chevrolet Impala/Corvette/Caprice/Biscayne/Bel Air/Estate/Brookwood/Kingswood/Townsman 1968–1982, Plain 12.19-Inch Rotors

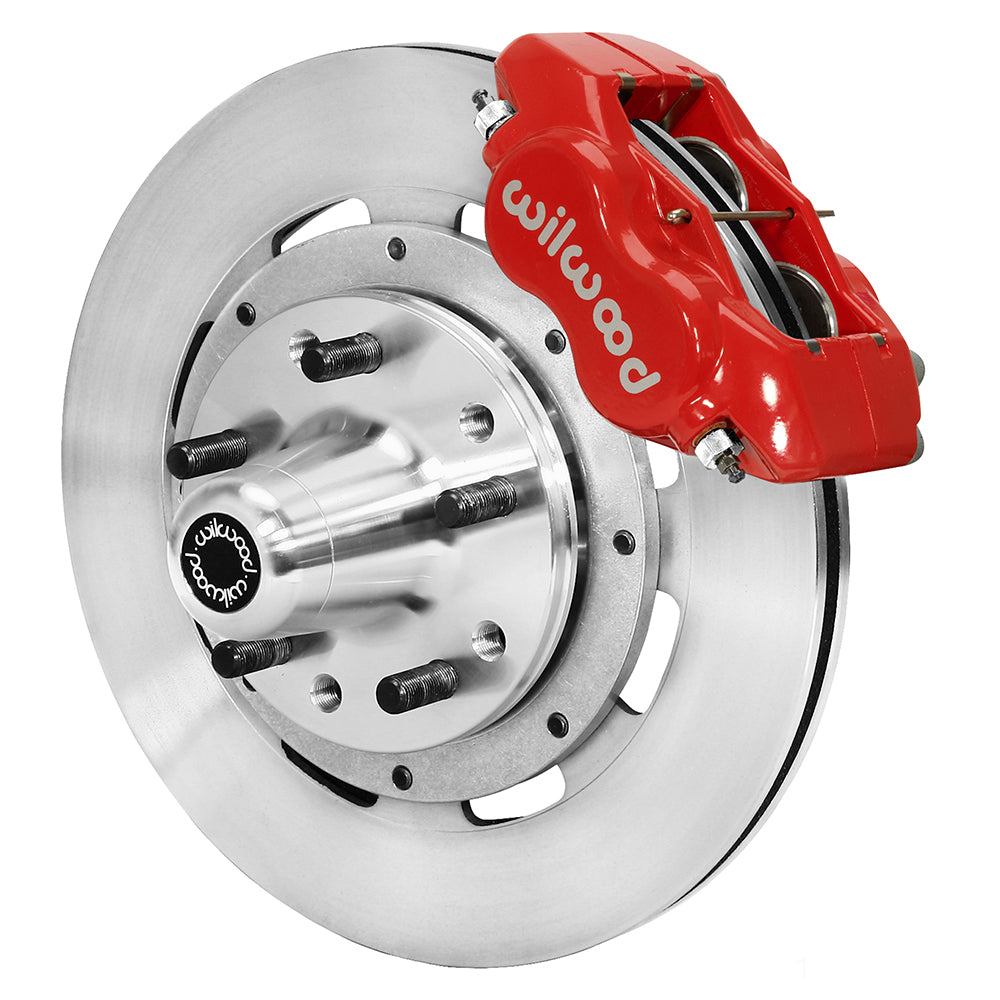

Red Dynalite calipers and plain-face 12.19-inch vented rings are the selected components in this Wilwood front Chevrolet conversion. New hubs and bearings are included along with BP-10 pads and the mounting hardware. The package retains only the correct factory spindle and suitable specified original fasteners. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12045-R
• Type: Forged Dynalite Big Brake Front Brake Kit (Hub)
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat; lug mounting.
• Piston bores: 1.75, 1.75 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 1.10-inch width; Plain Face; Iron; Plain finish.
• Wheel mounting change from OE: +0.28 inches per side; check wheel offset and fender clearance.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare. Bearings and hub hardware are specified in the installation instructions.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

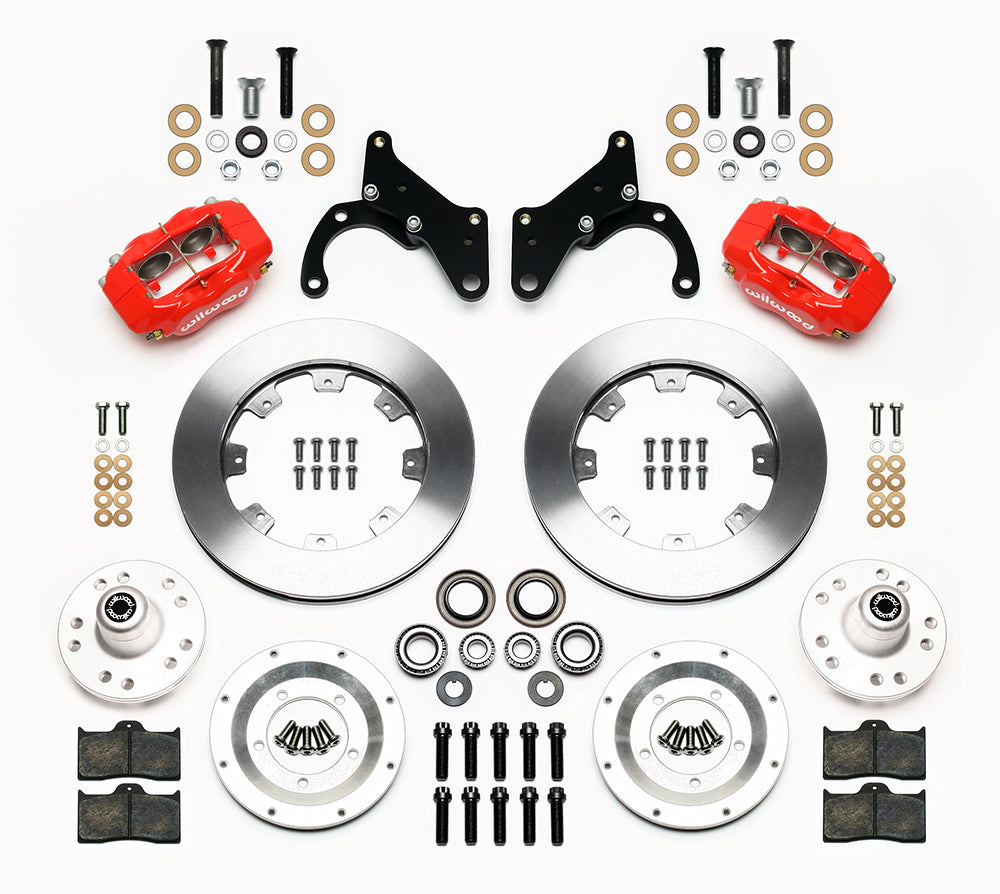

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs and bearings.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 15 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.
• Wheel seating: the specified support spacer is required when the wheel contact face overhangs the hub. The support spacer is sold separately for this kit. For stamped steel wheels without overhang, use the specified hub shield, obtained separately.

Fitment & Compatibility

Match the spindle journals and bracket points to the actual Chevrolet disc/drum application in DS833. The passenger-car and Corvette entries cover different configurations, even where their calendar years overlap. Inspect the retained spindle before building the new hub and rotor assembly. Wheel mounting requires full contact support: purchase the specified spacer when the contact surface overhangs the hub, or use the specified shield with a non-overhanging stamped steel wheel. Recheck tire/fender clearance for the outward wheel-position change and verify the five-lug pattern. Flexible hoses are chosen separately, with the route checked at steering lock. Measure the complete conditional 15-inch wheel profile and adjust bearings and caliper alignment before the brake test.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
