Wilwood Front Drilled/Slotted 12.19-Inch Brake/Hub Kit, Chevrolet Corvette/Impala/Bel Air/Caprice/Biscayne/Brookwood/Estate/Townsman/Kingswood 1968–1982

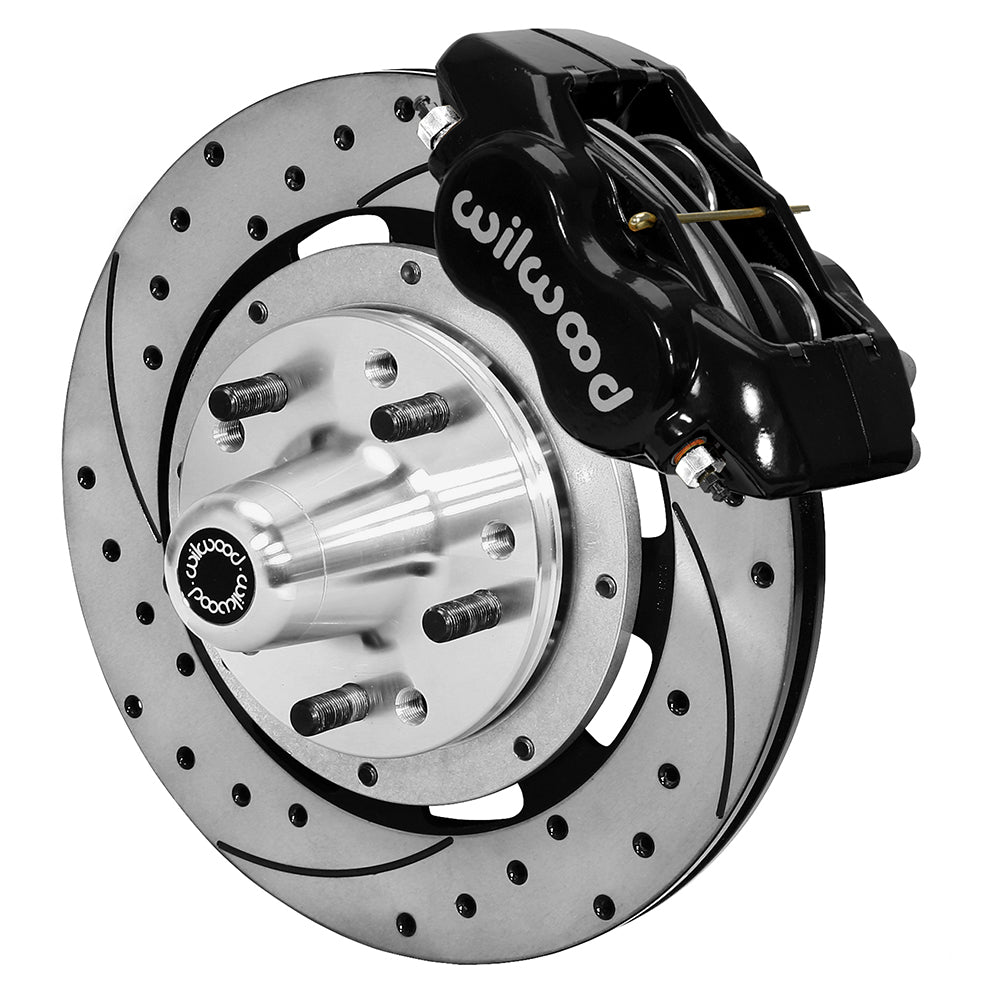

Black four-piston calipers, drilled/slotted SRP rotors and replacement hubs form this Wilwood front Chevrolet package. The 12.19-inch vented rings work with supplied BP-10 pads on Dynalite calipers. Installation is governed by the original spindle type, not by the size or appearance of a previously installed aftermarket rotor. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12045-D
• Type: Forged Dynalite Big Brake Front Brake Kit (Hub)
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Black Powder Coat; lug mounting.
• Piston bores: 1.75, 1.75 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 1.10-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat finish.
• Wheel mounting change from OE: +0.28 inches per side; check wheel offset and fender clearance.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare. Bearings and hub hardware are specified in the installation instructions.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

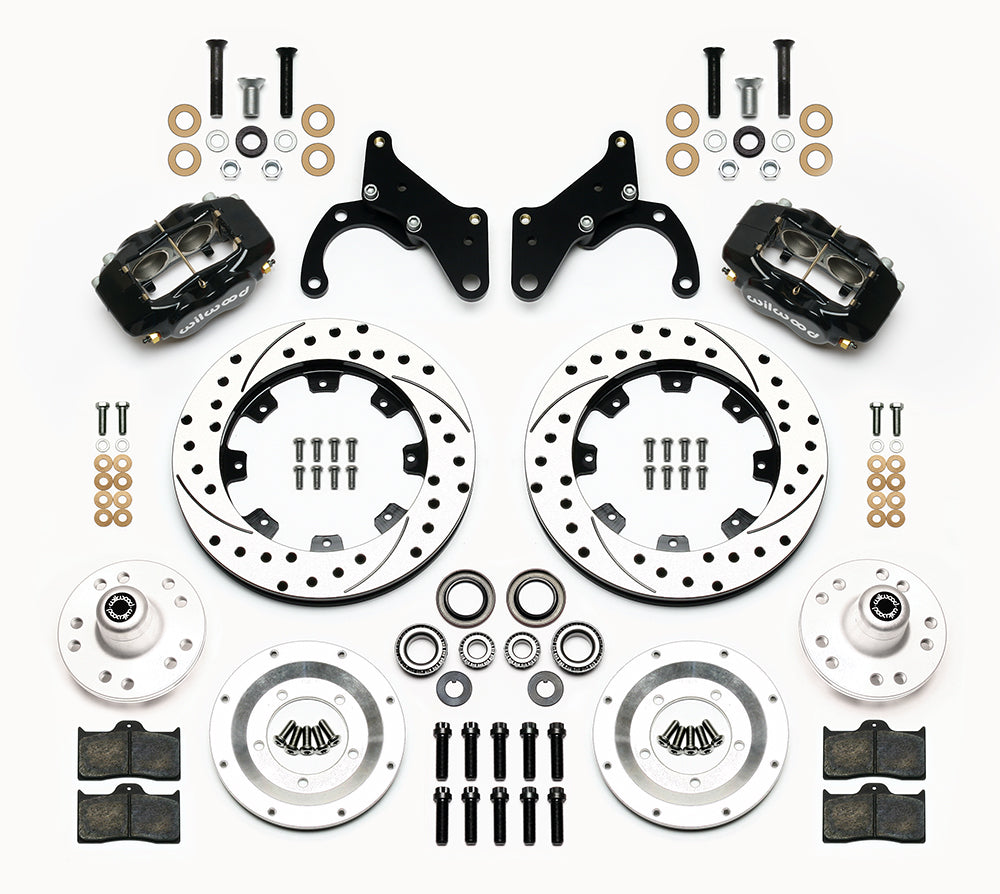

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs and bearings.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 15 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.
• Wheel seating: the specified support spacer is required when the wheel contact face overhangs the hub. The support spacer is sold separately for this kit. For stamped steel wheels without overhang, use the specified hub shield, obtained separately.

Fitment & Compatibility

Identify the upright by the original Chevrolet front brake arrangement and the table's precise year entry. DS833 is the guide for this drilled/slotted package; a drum spindle from another generation must not be substituted merely because the model badge matches. Inspect the wheel's load-bearing contact surface and order the separate specified support spacer if that surface extends beyond the new hub. Stamped steel wheels that sit within the hub face need the specified shield. Check both the new outward wheel position and the actual five-lug circle. Choose compatible hose fittings and sufficient flexline length for steering lock, then measure the full conditional 15-inch caliper section. Caliper centering and bearing adjustment must be established independently of wheel spacers.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
