Wilwood Front Red Dynalite Conversion with 12.19-Inch SRP Rotors, Chevrolet Impala/Bel Air/Caprice/Biscayne (1965–1968)

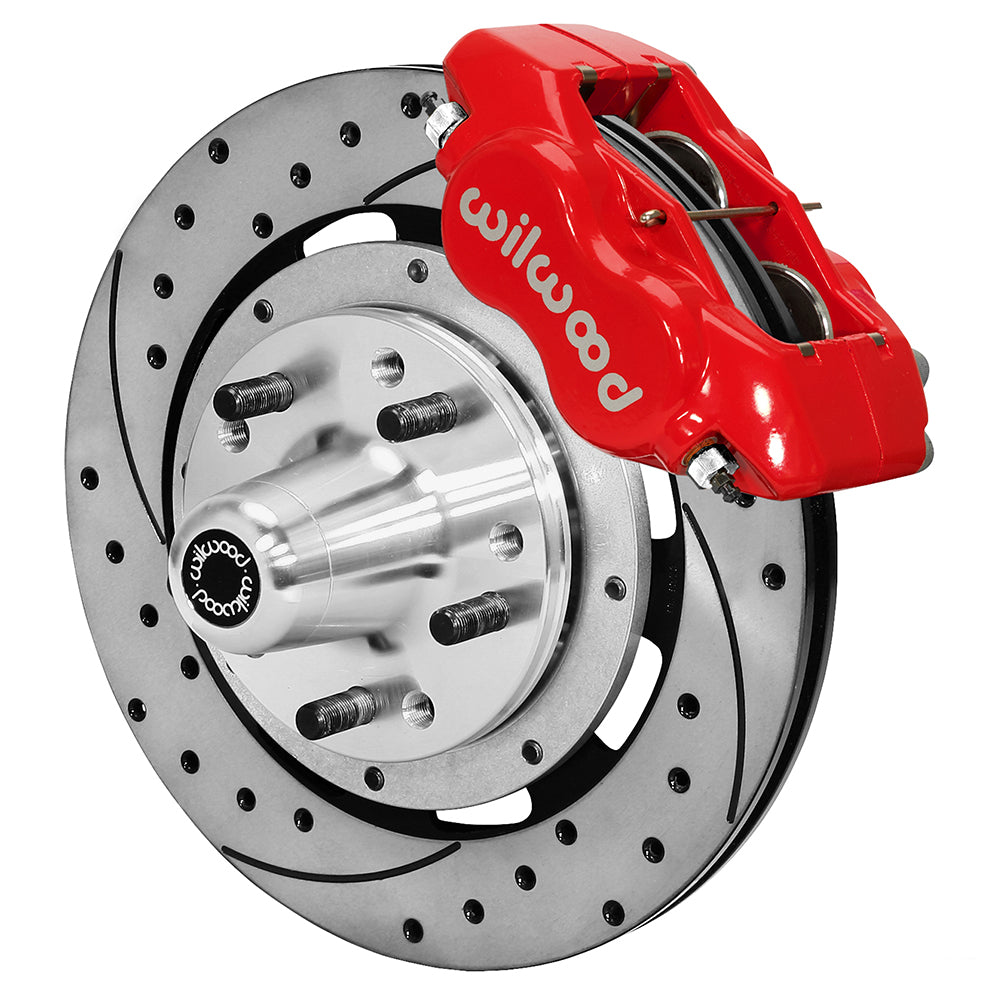

This red Wilwood front brake kit pairs four-piston Dynalite calipers with drilled/slotted 12.19-inch rotors for the stated Chevrolet drum spindles. The matched package contains replacement hubs, bearings, mounting brackets and BP-10 pads. Its rotor width and wheel-position change must be assessed as part of the conversion. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12022-DR
• Type: Forged Dynalite Big Brake Front Brake Kit (Hub)
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat; lug mounting.
• Piston bores: 1.75, 1.75 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 1.10-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat finish.
• Wheel mounting change from OE: +0.13 inches per side; check wheel offset and fender clearance.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare. Bearings and hub hardware are specified in the installation instructions.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

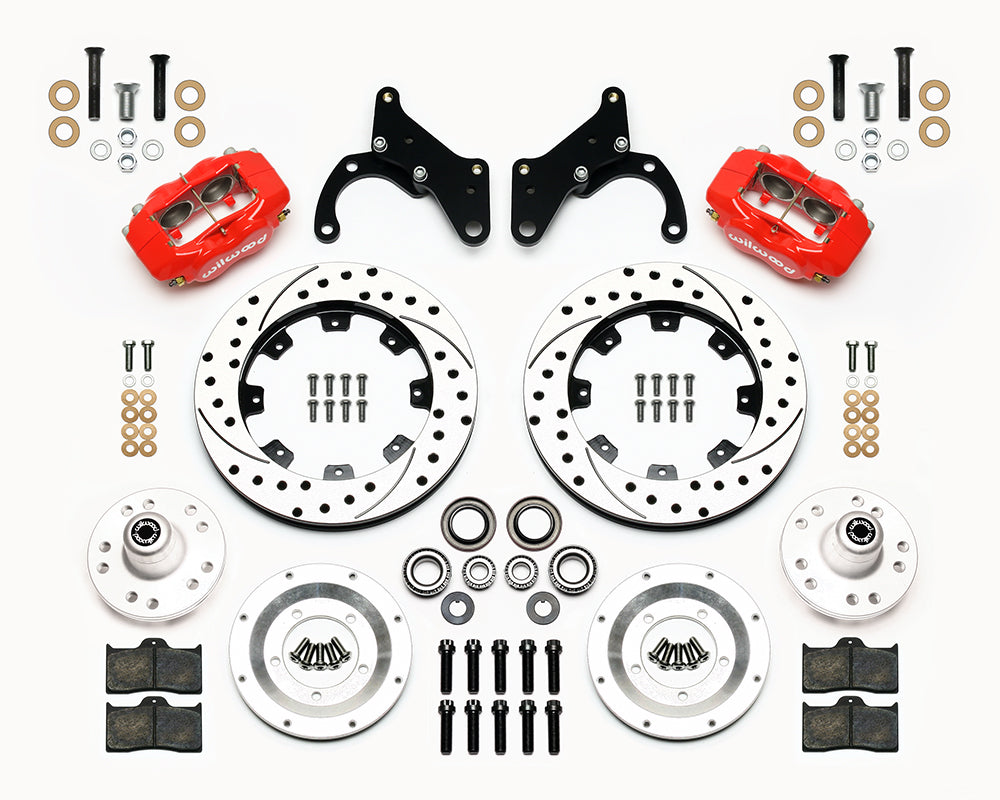

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs and bearings.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 15 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.
• Wheel seating: the specified support spacer is required when the wheel contact face overhangs the hub. The support spacer is sold separately for this kit. For stamped steel wheels without overhang, use the specified hub shield, obtained separately.

Fitment & Compatibility

Confirm the original spindle belongs to the correct Chevrolet model and production years before removing the drums. Assemble the new hubs and center the calipers as shown in DS831. Wheels need the correct five-lug pattern, suitable contact-face support and enough room for the caliper profile. Check the specified spacer requirement where the wheel mounting area overhangs the hub. Hydraulic hoses are additional, and the conditional 15-inch wheel size does not replace a barrel-and-spoke clearance measurement. The selected rotor and current component specification give 1.10-inch width, but the linked PDF clearance figure labels 0.81 inch. Obtain the correct clearance drawing from Wilwood before final wheel selection.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
