Wilwood Front Plain-Rotor Brake and Hub Conversion, Red Dynalite Calipers, Chevrolet Biscayne/Bel Air/Caprice/Impala (1965–1968)

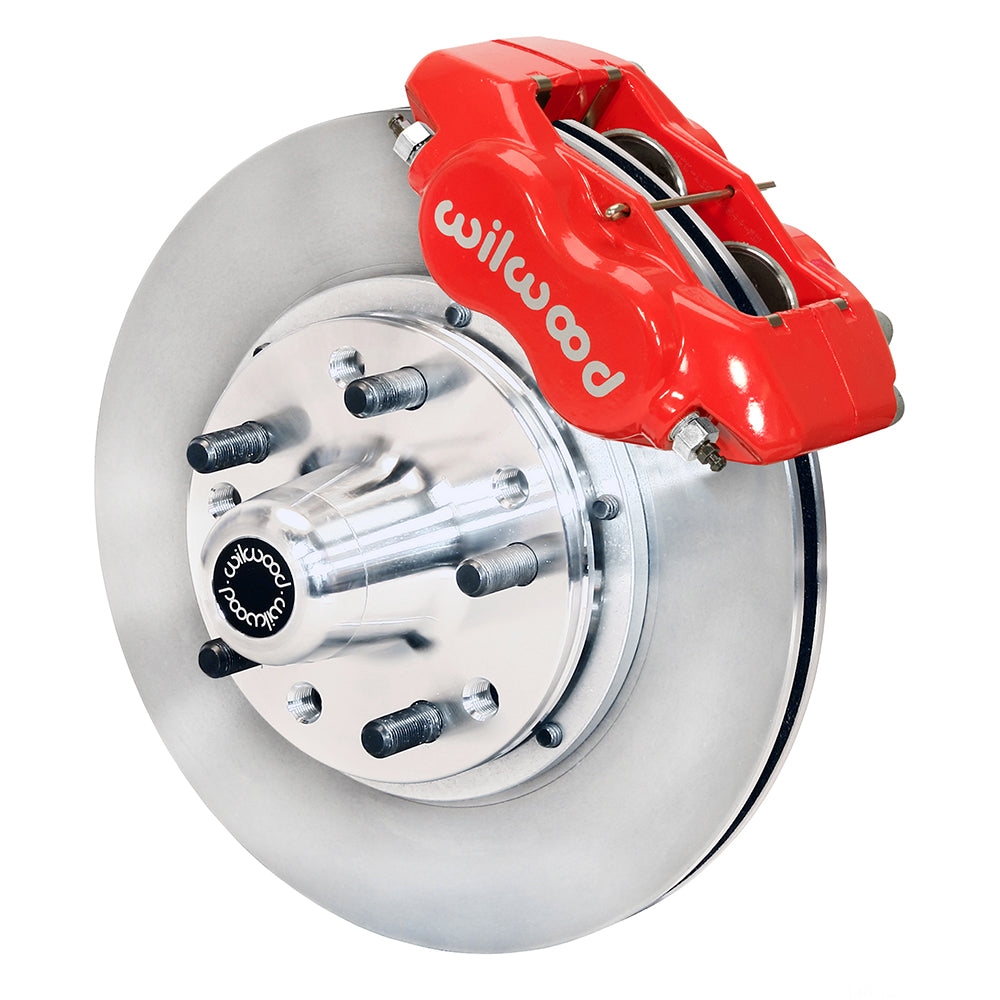

The red-caliper, plain-rotor option of this Wilwood front kit suits the specified full-size Chevrolet drum spindles. Four-piston Dynalite calipers clamp 11-inch vented iron rotors and included BP-10 pads. New hubs, bearings and mounting hardware are part of this conversion rather than reuse of an original integral drum hub. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12021-R
• Type: Forged Dynalite Pro Series Front Brake Kit
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat; lug mounting.
• Piston bores: 1.75, 1.75 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 11.00-inch diameter × 0.81-inch width; Plain Face; Iron; Plain finish.
• Wheel mounting change from OE: +0.33 inches per side; check wheel offset and fender clearance.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare. Bearings and hub hardware are specified in the installation instructions.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

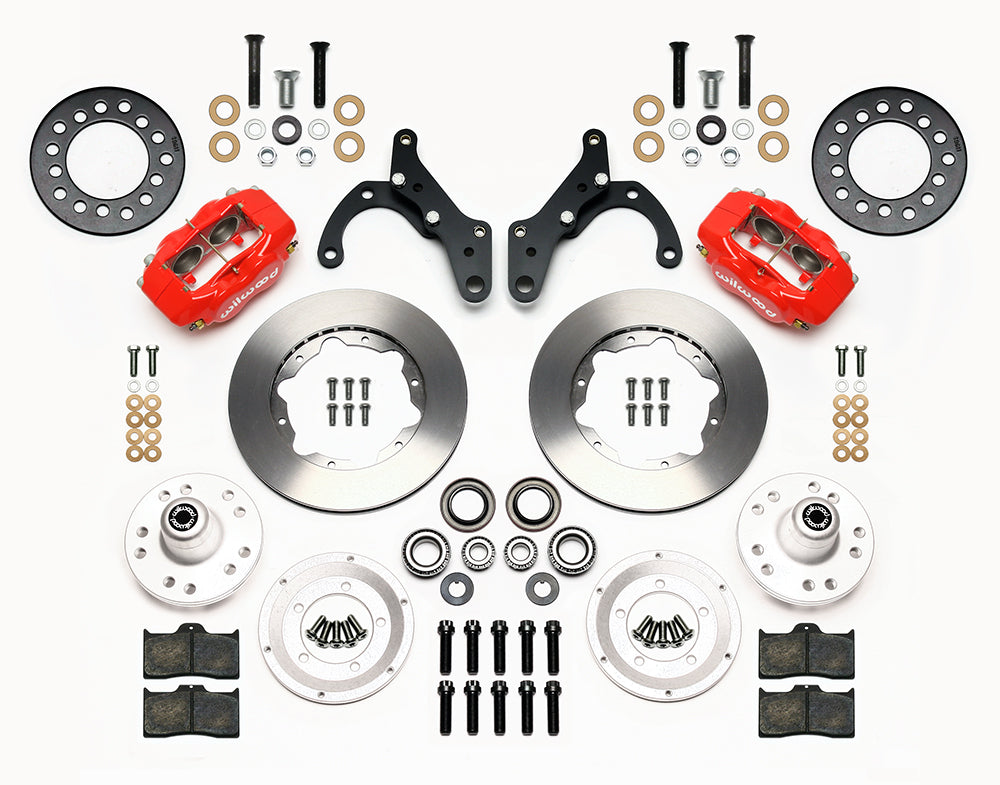

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs and bearings.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 14 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.
• Wheel seating: the specified support spacer is required when the wheel contact face overhangs the hub. The support spacer is included with this kit. For stamped steel wheels without overhang, use the specified hub shield, obtained separately.

Fitment & Compatibility

Confirm the exact Chevrolet model/year and inspect the spindle's bearing and bracket surfaces before assembly. DS830 gives the caliper centering sequence and wheel spacer conditions. Compare the published per-side wheel offset to the existing tire and fender space, then verify the wheel lug pattern. The compact rotor diameter can work within some 14-inch wheels only when the clearance drawing fits. Add appropriate flexible hoses and complete the hydraulic balance and brake tests for the converted car.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
