Wilwood Front Red Four-Piston Brake Package, Chevrolet Caprice/Impala/Biscayne/Bel Air 1965–1968, SRP 11-Inch Rotors

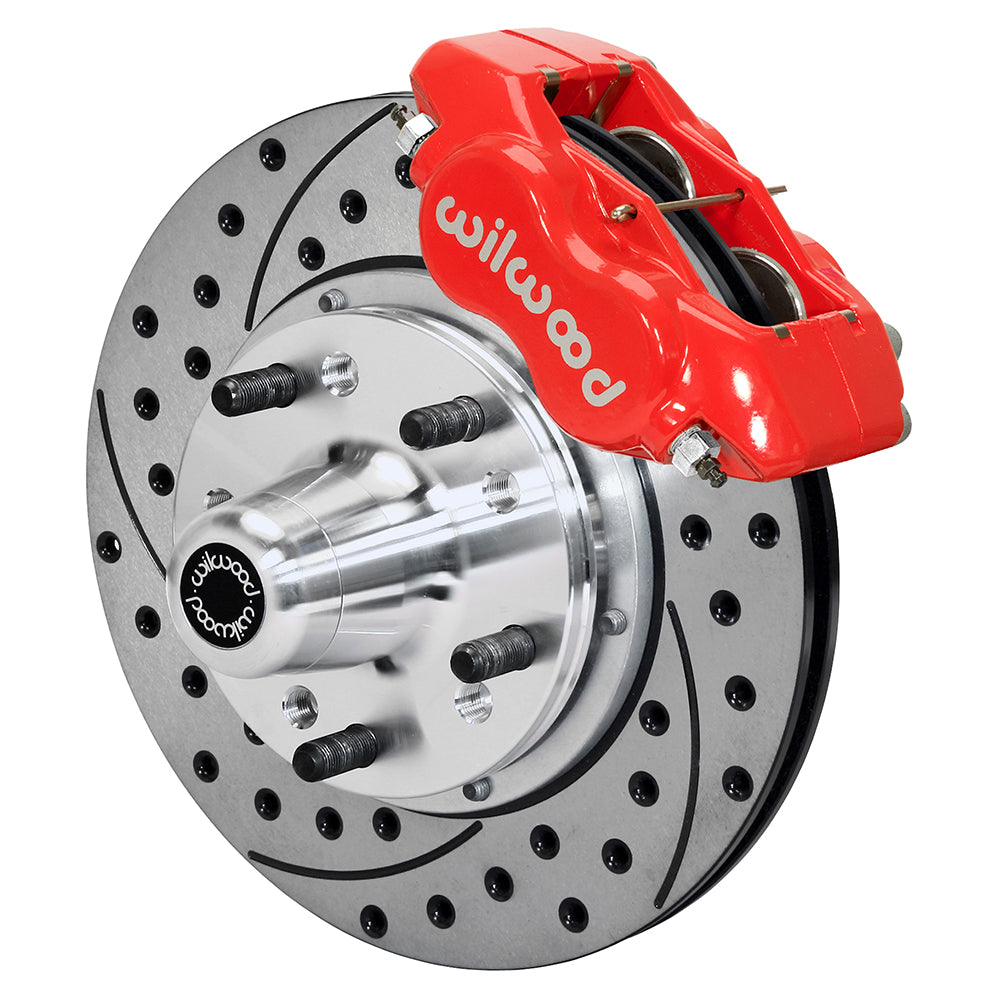

Red powder-coated four-piston calipers pair with 11-inch drilled/slotted rotors in this Wilwood Chevrolet front kit. It replaces the original drum brake assemblies with vented discs, separate hubs and the appropriate mounting brackets. Included BP-10 pads complete the selected friction package. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12021-DR
• Type: Forged Dynalite Pro Series Front Brake Kit
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat; lug mounting.
• Piston bores: 1.75, 1.75 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 11.00-inch diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat finish.
• Wheel mounting change from OE: +0.33 inches per side; check wheel offset and fender clearance.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare. Bearings and hub hardware are specified in the installation instructions.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

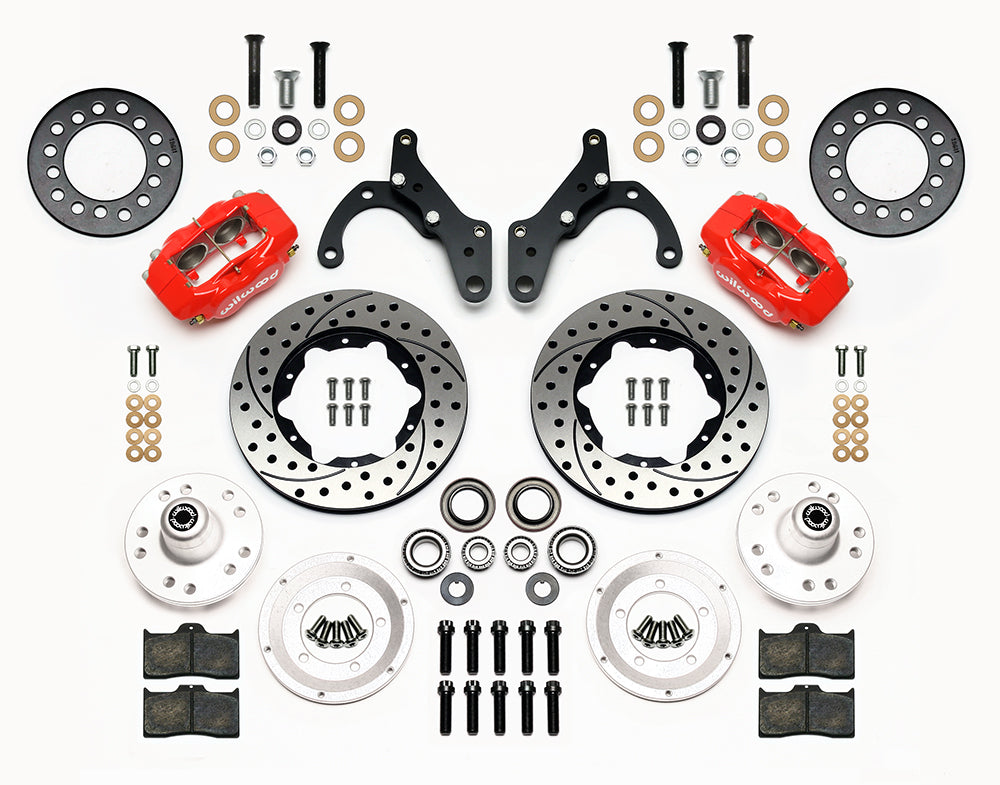

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs and bearings.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 14 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.
• Wheel seating: the specified support spacer is required when the wheel contact face overhangs the hub. The support spacer is included with this kit. For stamped steel wheels without overhang, use the specified hub shield, obtained separately.

Fitment & Compatibility

Use the individual Caprice, Impala, Biscayne and Bel Air application years and confirm the original drum spindle. DS830 defines hub bearing assembly and alignment; the new wheel position must be checked against fenders and suspension. Wheel mounting faces that extend beyond the hub diameter require the specified spacer. Do not treat the nominal 14-inch wheel minimum as a fit guarantee: measure barrel and spoke clearance. Hydraulic hoses and any required chassis connections are additional installation items.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
