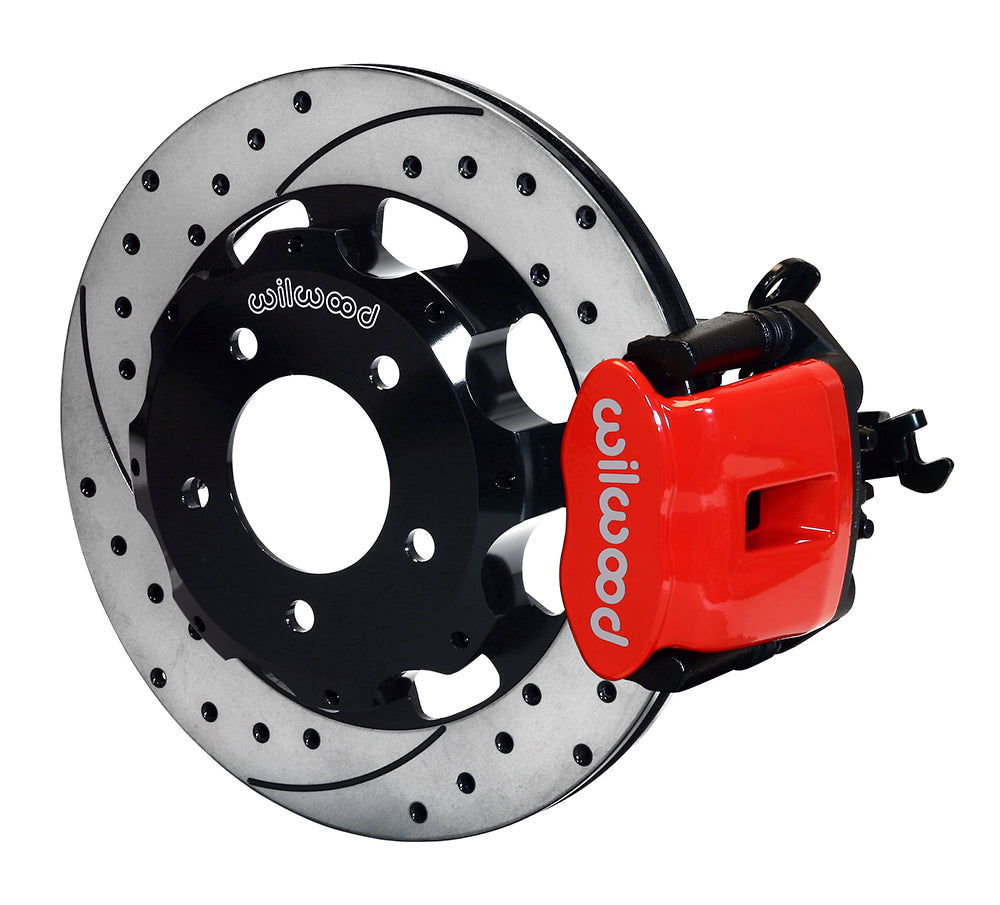

Wilwood Rear Red Combination Caliper Kit for Honda Civic Si (2006–2015), Drilled/Slotted 12.19-Inch Rotors

Red Combination Parking Brake calipers and drilled/slotted 12.19-inch rotors form this Wilwood Civic Si rear brake package. The floating single-piston design supplies hydraulic service braking and a separate cable-actuated lever for parking. Included pads, hats and brackets match the stated rear-disc application. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-11979-DR
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston per caliper; Red Powder Coat; radial mounting.
• Piston bores: 1.34 inches; Steel pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat finish.
• Wheel bolt circles: 5 x 4.50 inches.

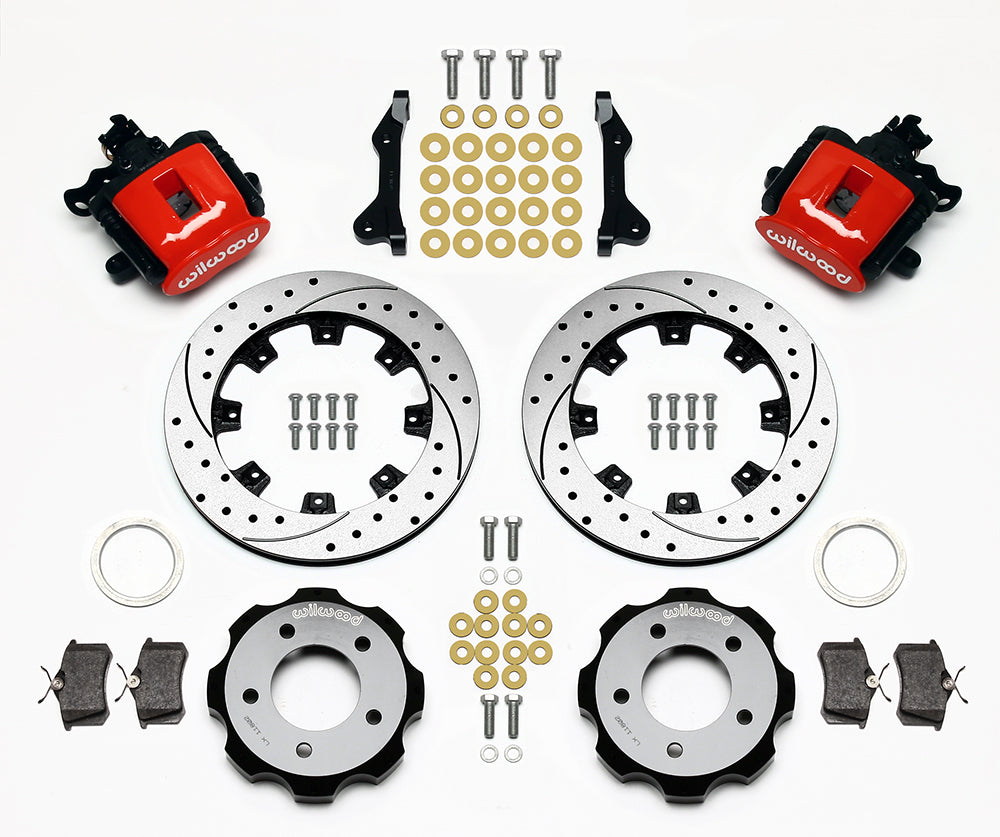

• Included: paired combination hydraulic/cable calipers, pads, rotor rings, hats, brackets and assembly hardware.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 17 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Verify the actual Civic Si rear assembly rather than transferring fitment from a front kit. DS820 sets out the mechanical cable connection and caliper adjustments; the parking lever must operate and release correctly. Suitable hydraulic lines are chosen separately. Wheel fit requires the full conditional 17-inch profile, with some 16-inch designs possible only when the template confirms space. Inspect the original hubs and establish caliper alignment before checking cable travel and testing both braking functions.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
