Wilwood Rear SRP Rotor/CPB Conversion, Honda Civic Si 2006–2015, Black Hydraulic-and-Cable Calipers

SRP drilled/slotted rotors and black combination calipers distinguish this Wilwood Honda Civic Si rear conversion. Each caliper has one 1.34-inch piston and a mechanical parking lever, keeping the service and parking functions in the same assembly. The 12.19-inch rings mount on separate hats with BP-10 pads included. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-11979-D
• Type: Combination Parking Brake Caliper Rear Brake Kit
• Calipers: Combination Parking Brake; 1 piston per caliper; Black Powder Coat; radial mounting.
• Piston bores: 1.34 inches; Steel pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat finish.
• Wheel bolt circles: 5 x 4.50 inches.

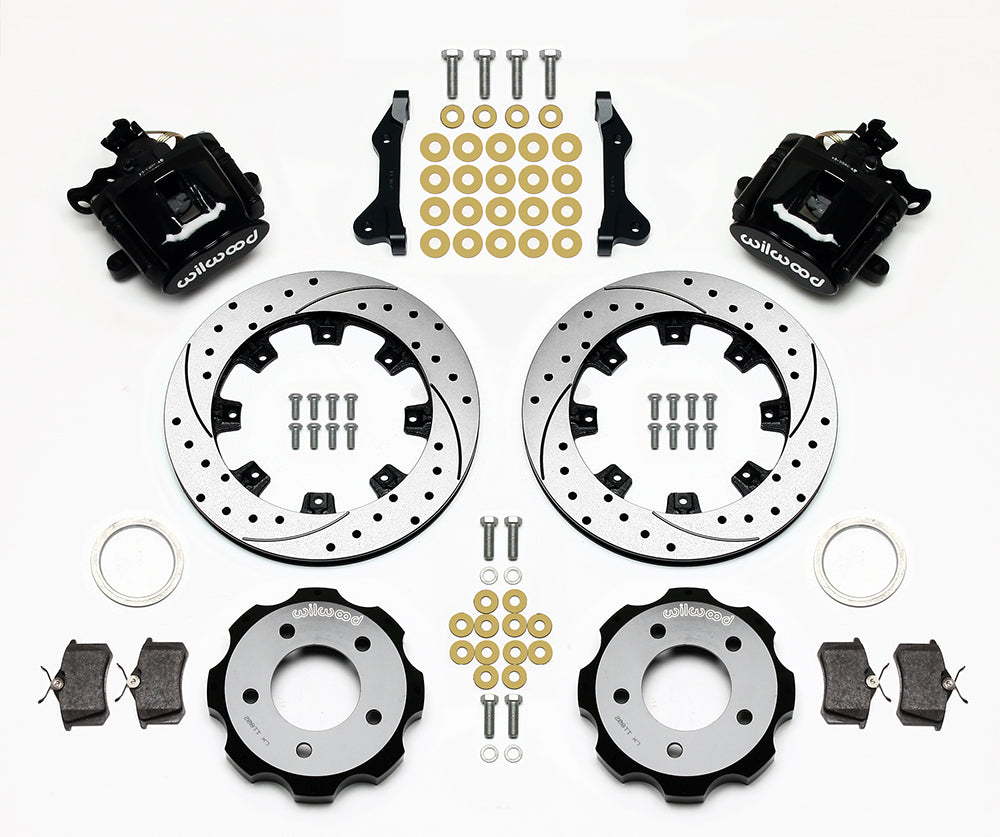

• Included: paired combination hydraulic/cable calipers, pads, rotor rings, hats, brackets and assembly hardware.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 17 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

The Civic must have the matching Si rear-disc layout described in DS820. Check the cable end, mechanical lever travel and hose routing as distinct installation tasks. Compare both spoke clearance and barrel clearance with the drawing before assuming the kit fits a wheel; the catalog's 17-inch minimum is conditional, and selected 16-inch designs need measurement. Retain only sound original hubs and verify the hat registration. Drum-brake Civics are not established applications for this rear package.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
