Wilwood Front Red Superlite/SRP Brake Package for Honda CR-Z (2011–2015) and Civic (2006–2015), 12.88-Inch Rotors

Red radial-mount Superlite calipers and SRP drilled/slotted rotors form this Wilwood front conversion for the listed Honda Civic and CR-Z models. Its 12.88-inch rings are 1.10 inches wide, carried on hats fitted to the existing hubs. Included BP-10 pads and installation brackets complete the six-piston brake pairing. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-11978-DR
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Red Powder Coat; radial mounting.
• Piston bores: 1.38, 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat finish.
• Wheel bolt circles: 5 X 4.50; 5 x 4.75 inches.

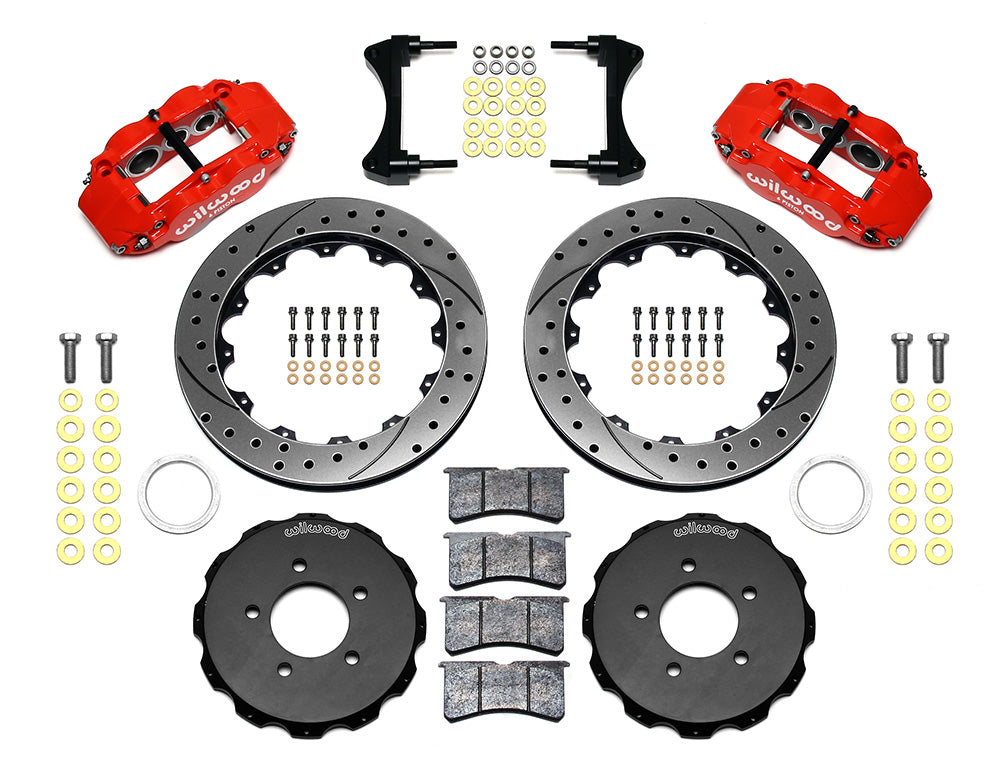

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 17 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Compare the Honda's trim, transmission entry and year to the application table before selecting flex hoses. DS819 notes the retained original line/ABS bracket on 2012-and-later Civics and the possible fitting-hole modification. Keep that bracket requirement separate from caliper mounting. The wheel must match the 17-inch conditional clearance section, with enough space behind the spokes. Inspect hub seating and route the separately supplied hoses clear of the wheel and suspension throughout their travel.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
