Wilwood Front Red Superlite Brake Conversion, Mazda RX-7 (1993–1995), 14-Inch Drilled/Slotted Rotors

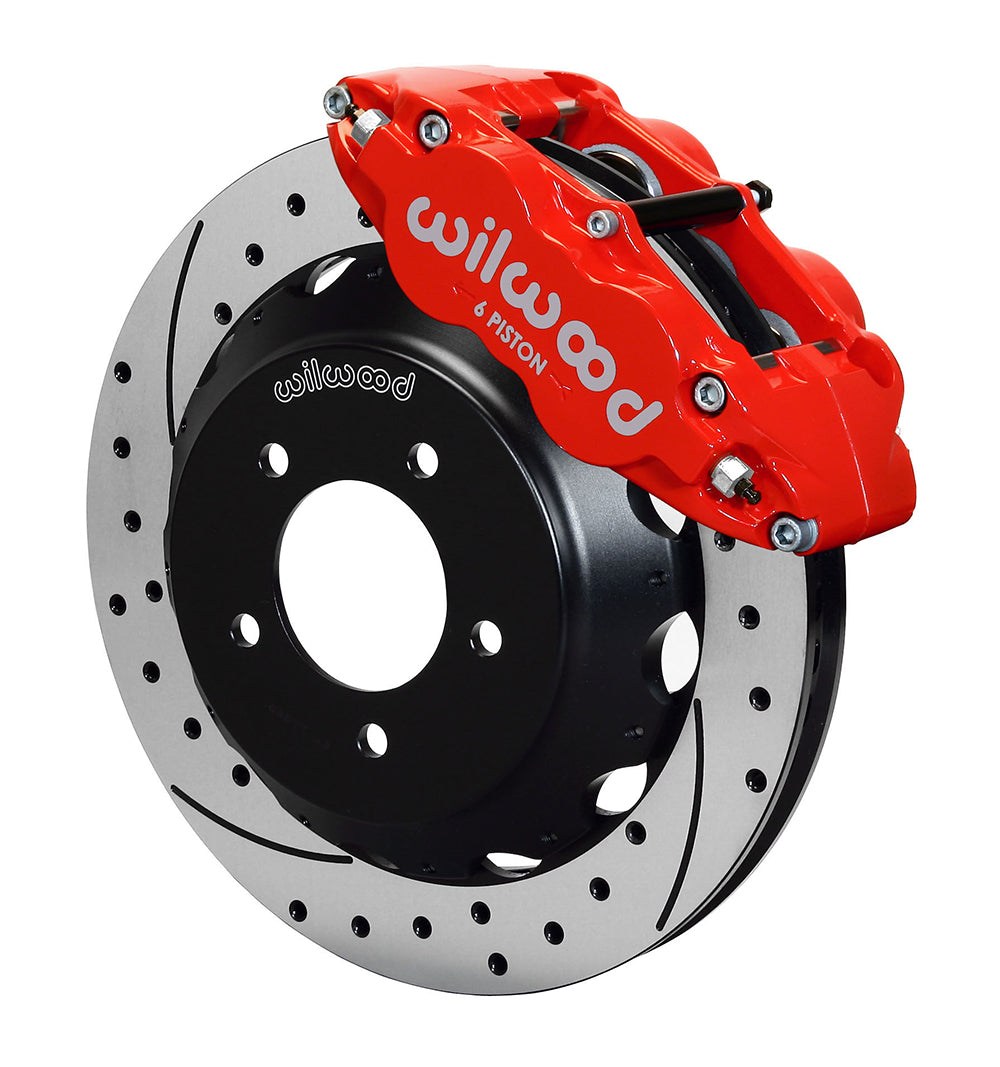

Red six-piston calipers distinguish this 14-inch SRP Wilwood front kit for the Mazda RX-7. Drilled/slotted iron rings are carried on independent hats, with the original front hubs retained. The kit includes BP-10 pads and the mounting hardware required for the matched Superlite conversion. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-11964-DR
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Red Powder Coat; radial mounting.
• Piston bores: 1.62, 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 14.00-inch diameter × 1.10-inch width; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat finish.
• Wheel bolt circles: 5 X 4.50; 5 X 4.75 inches.

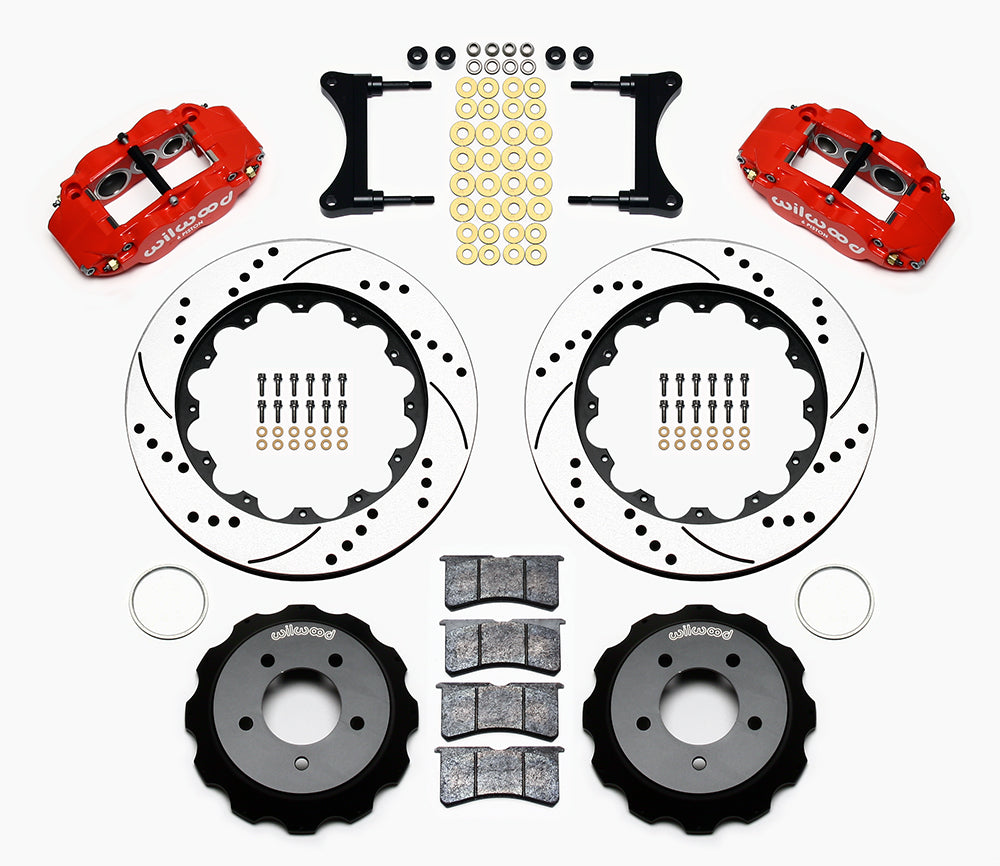

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 18 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Match the Mazda's exact year and front spindle configuration to the table and DS818. The large rotor needs an 18-inch conditional wheel envelope, and the full caliper section must fit behind the spokes. Mount each ring in the direction prescribed by Wilwood, keep the calipers in the correct handed locations and set the shims before final tightening. Choose flex hoses separately. Hub inspection, proper hat seating and the required post-installation brake tests are part of completing the conversion.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
