Wilwood Front SRP 14-Inch Rotor Conversion for Mazda RX-7 1993–1995, Black Superlite 6R Calipers

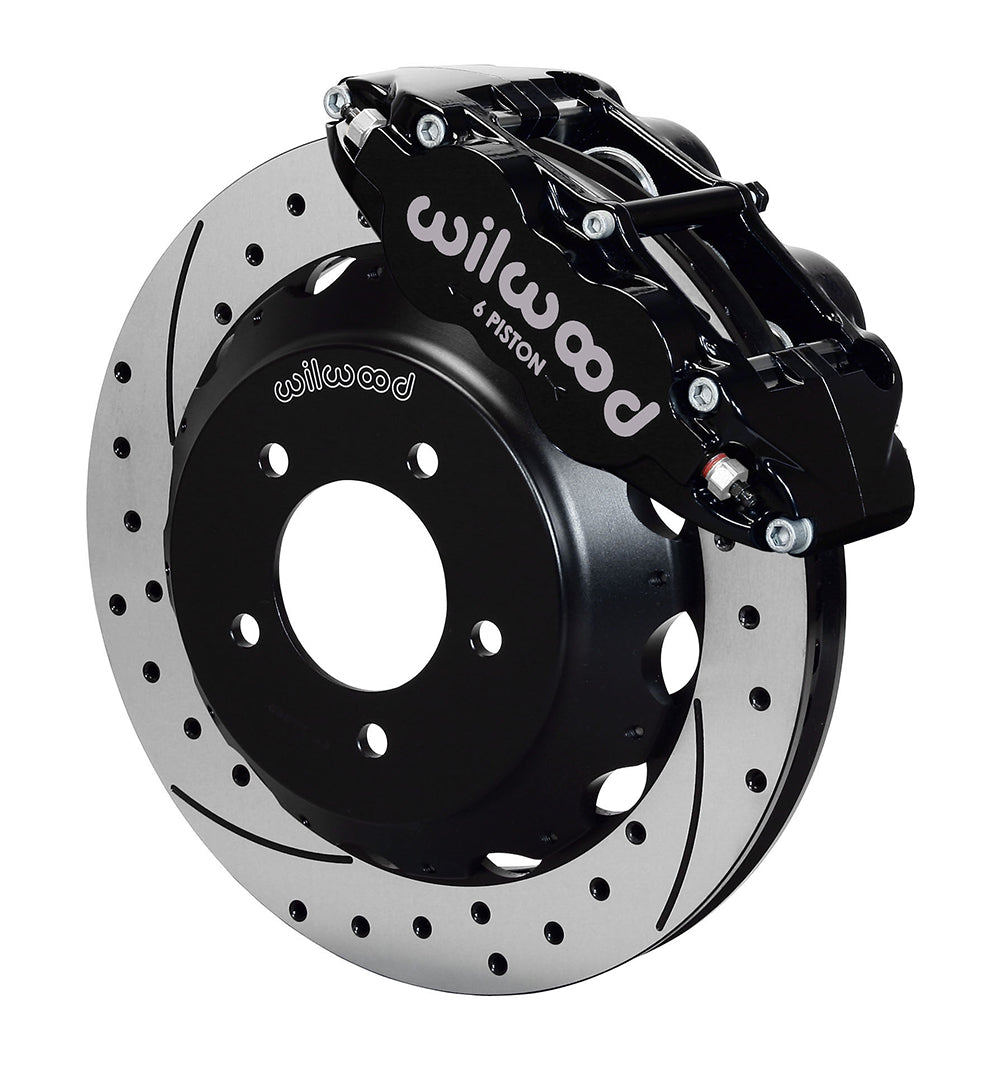

This black-caliper Wilwood RX-7 package uses 14-inch SRP drilled/slotted rotors and six-piston Superlite 6R calipers. The vented rings are 1.10 inches wide and bolt to separate hats on the original hubs. BP-10 pads are supplied with the selected street-performance configuration and its application brackets. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-11964-D
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Black Powder Coat; radial mounting.
• Piston bores: 1.62, 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 14.00-inch diameter × 1.10-inch width; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat finish.
• Wheel bolt circles: 5 X 4.50; 5 X 4.75 inches.

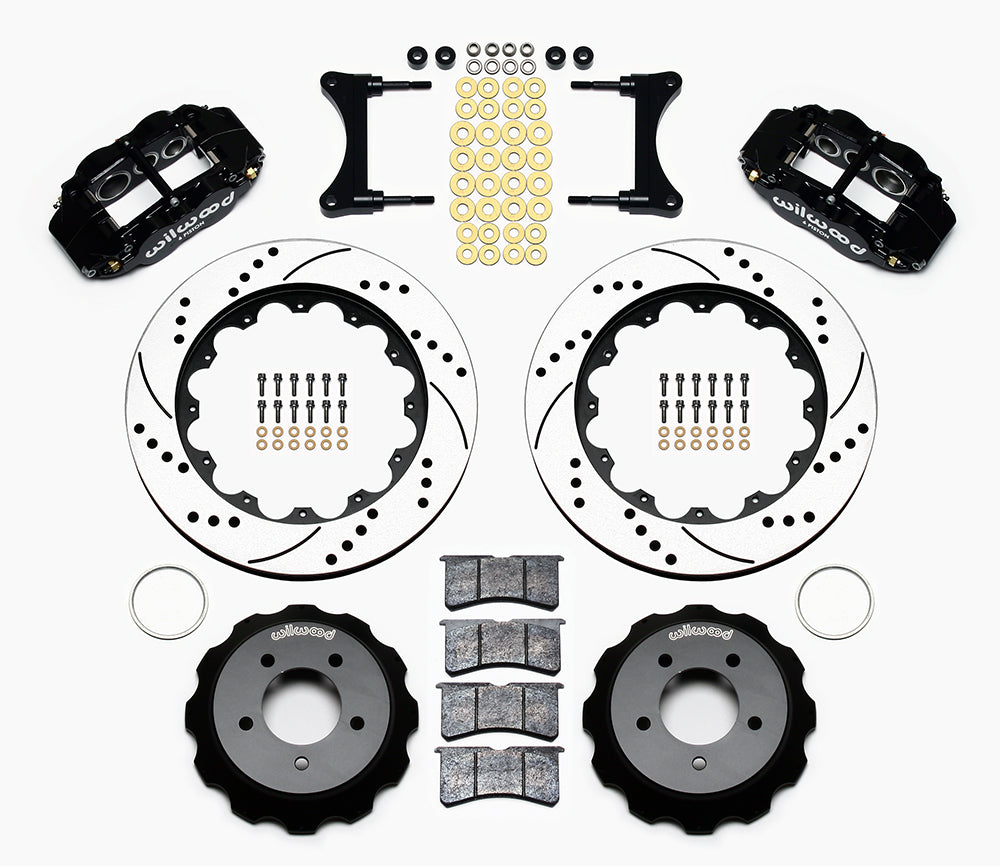

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 18 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Confirm space for the 14-inch rotor and caliper combination using DS818 before ordering wheels or dismantling the car. The conditional minimum is 18 inches, subject to spoke shape and barrel geometry. Inspect the retained RX-7 hubs for register damage or runout and match the listed 1993–1995 application. The kit does not include hydraulic flex lines; select them for the actual car and provide strain-free routing. Follow the left/right caliper and rotor instructions rather than treating the two corners as interchangeable.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
