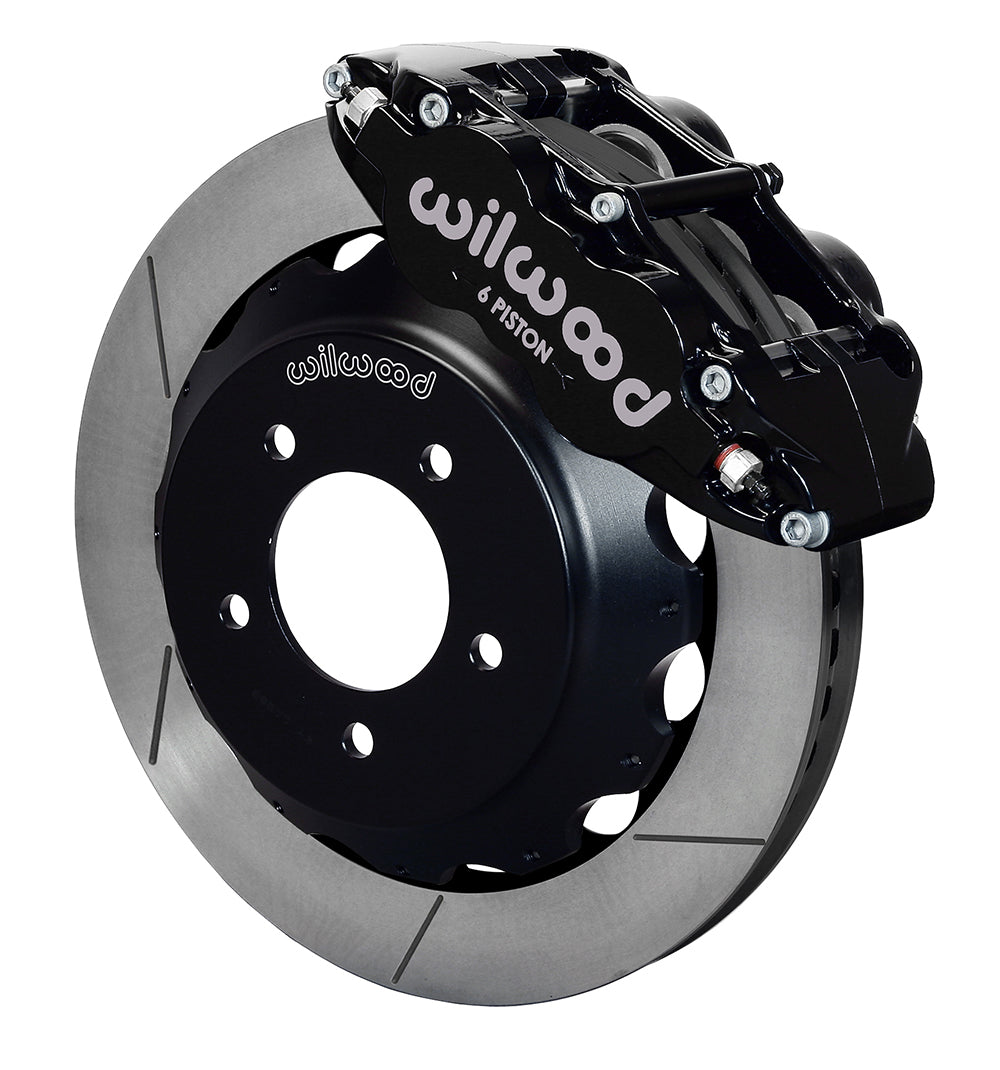

Wilwood Front 14-Inch GT Slotted Brake Kit, Mazda RX-7 (1993–1995), Black Six-Piston Superlite Calipers

The 14-inch Wilwood Superlite front conversion gives the listed Mazda RX-7 applications a larger rotor package than the 12.88-inch version. Black six-piston calipers clamp GT slotted Spec-37 iron rings with 72 curved vanes. Separate hats, BP-10 pads and mounting components are selected for the matching front hubs and spindles. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-11964
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Black Powder Coat; radial mounting.
• Piston bores: 1.62, 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 14.00-inch diameter × 1.10-inch width; GT Slotted; Spec-37 Iron; Black Electro Coat finish.
• Wheel bolt circles: 5 X 4.50; 5 X 4.75 inches.

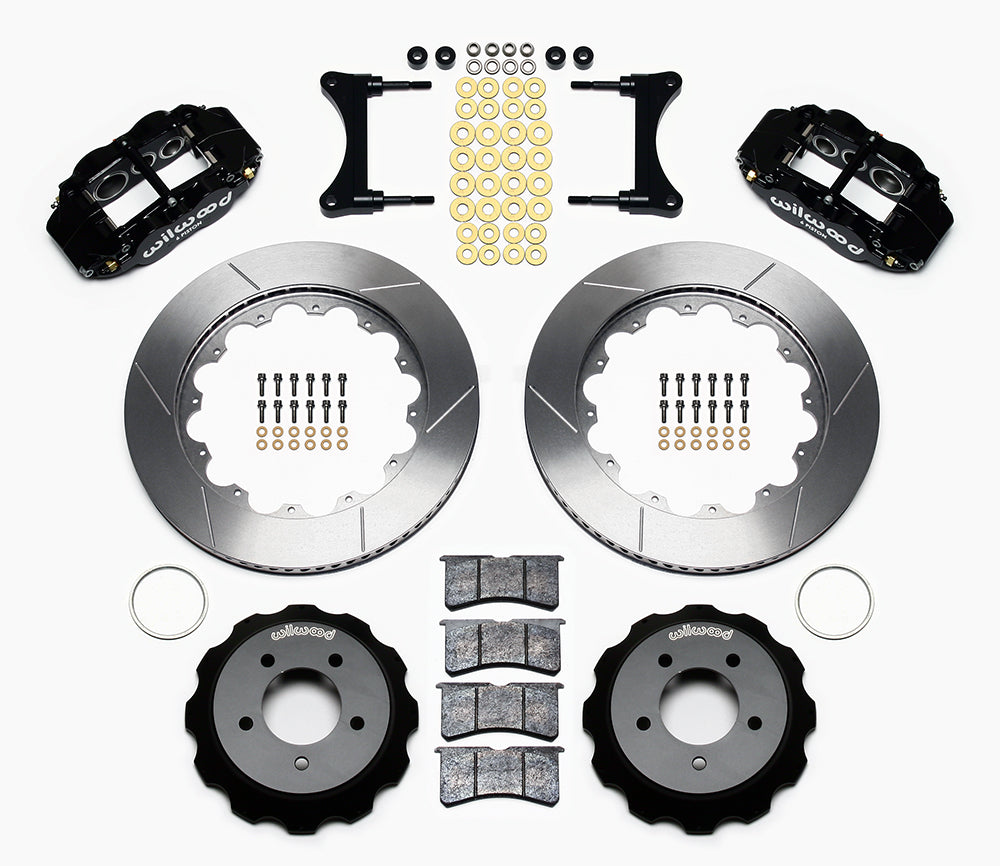

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 18 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

DS818 is the installation reference for this 14-inch configuration. Check the 1993–1995 model coverage and verify the wheel against the full 18-inch conditional profile. Do not apply the smaller-rotor clearance drawing to this package. Original hub registers, studs and bearing condition remain relevant because replacement hubs are not included. Each caliper is handed; establish its bleeder orientation and radial alignment carefully. Add suitable flexible hydraulic hoses and verify their route through steering and suspension movement.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
