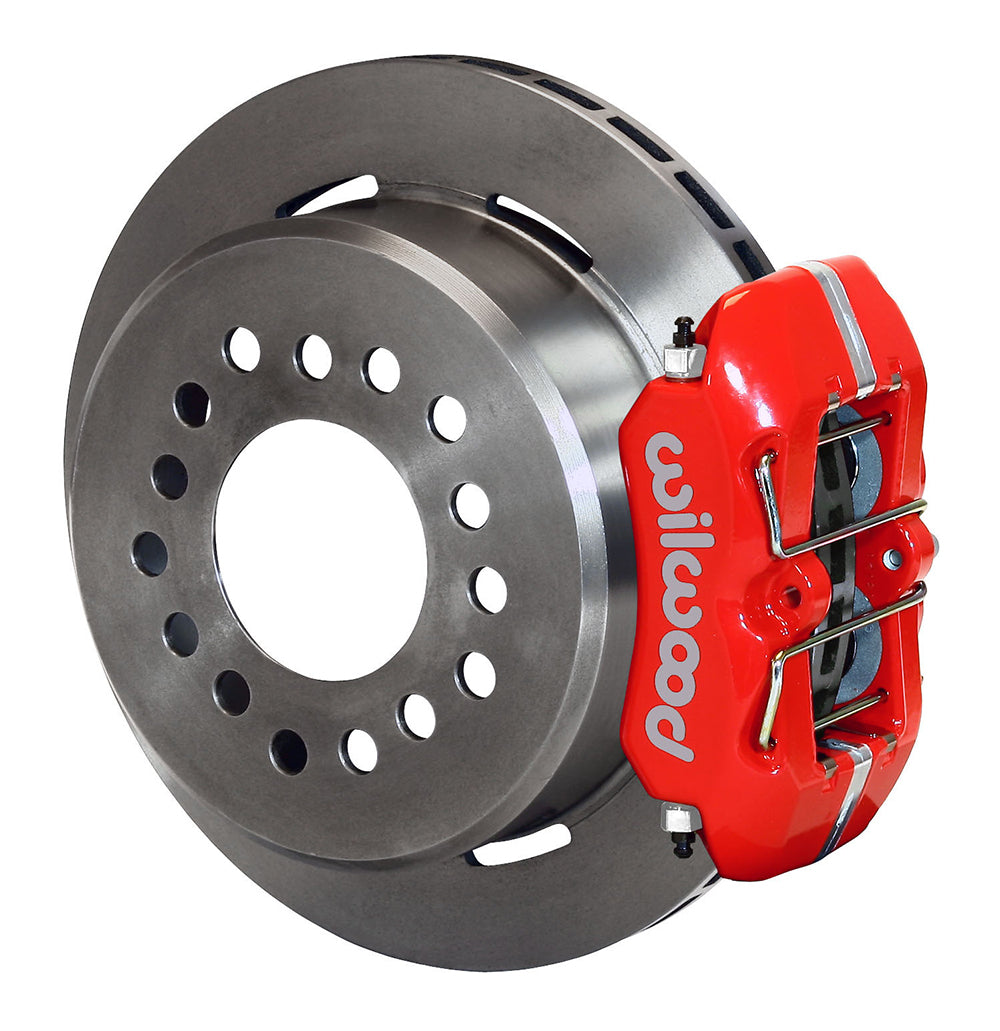

Wilwood Rear Plain 11-Inch Rotor Conversion for AMC Javelin/Javelin AMX 1971–1974, Red Four-Piston Calipers and Parking Brake

This red Wilwood rear package converts the specified AMC axle to vented disc brakes while adding parking shoes within the rotor hats. Plain-face 11-inch rotors run with four-piston Dynapro calipers and included BP-10 pads. The low-profile arrangement is designed for the matching AMC axle end and measured 2.60-inch offset. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-11941-R
• Type: Forged Dynapro Low-Profile Rear Parking Brake Kit
• Calipers: Forged Dynapro Low Profile; 4 pistons per caliper; Red Powder Coat; lug mounting.
• Piston bores: 1.38, 1.38 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 11.00-inch diameter × 0.81-inch width; Plain Face; Iron; Plain finish.
• Rear housing end: AMC. Axle-flange offset: 2.60 inches.

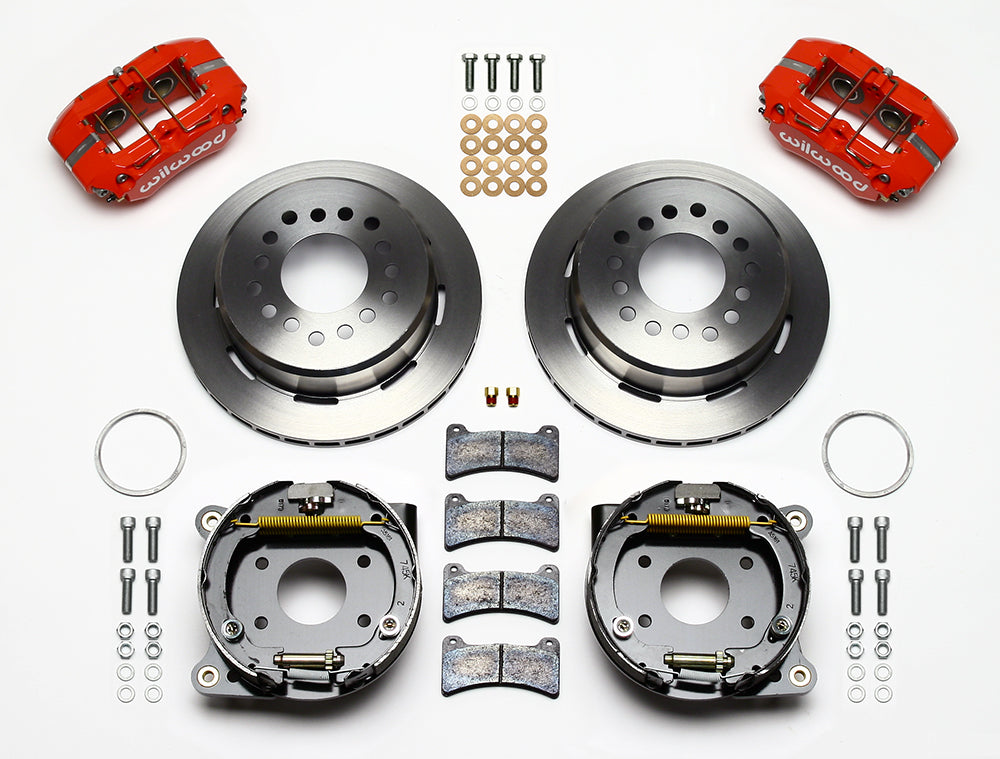

• Included: paired hydraulic calipers, pads, rotor/hat assemblies, internal parking-shoe assemblies and mounting components.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 14 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Check the wheel studs and flange diameter before fitting the hats. DS823 explains the left-side shims that affect the offset reading, the separate original-style seal plate and possible shock clearance work. Javelin and Javelin AMX coverage remains conditional on the correct rear housing, even though front-spindle options appear in the vehicle table. Cable hardware and hydraulic lines are not in the package. Fit them to the completed axle, adjust the parking brake and verify wheel/caliper clearance before road testing.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
