Wilwood Front Plain-Rotor Brake/Hub Kit, Red Calipers, AMC Matador/Rebel/Rambler/Ambassador/AMX/Javelin/Javelin AMX/Hornet/Gremlin, 1969–1976

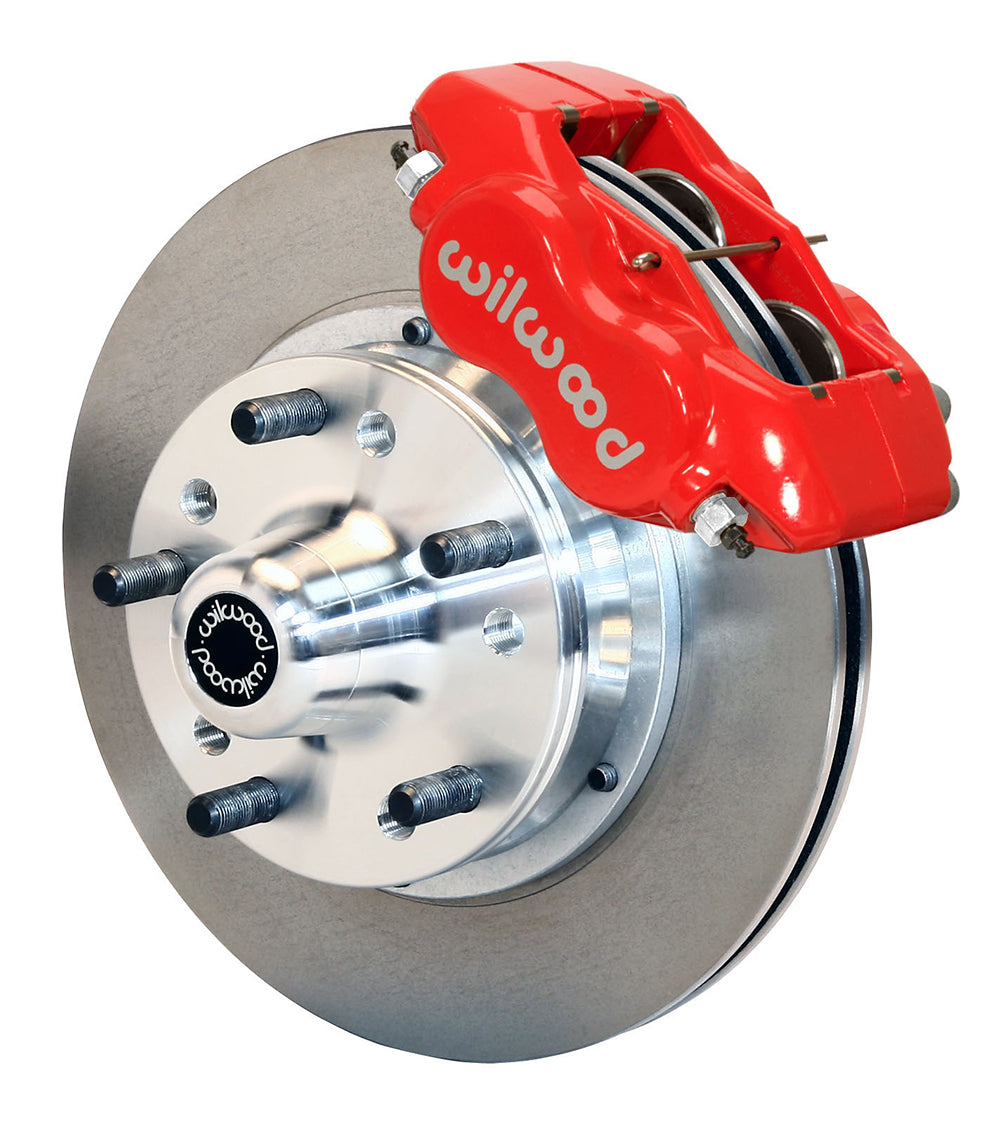

For AMC cars retaining the specified Kelsey-Hayes disc spindles, this Wilwood package supplies red four-piston calipers and 11-inch plain-face rotors. The vented rotor/hub conversion includes new hubs, bearings, brackets and BP-10 pads. Its compact rotor diameter does not eliminate the need to measure the chosen wheel and the original spindle. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-11940-R
• Type: Forged Dynalite Pro Series Front Brake Kit
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat; lug mounting.
• Piston bores: 1.75, 1.75 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 11.00-inch diameter × 0.81-inch width; Plain Face; Iron; Plain finish.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare. Bearings and hub hardware are specified in the installation instructions.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

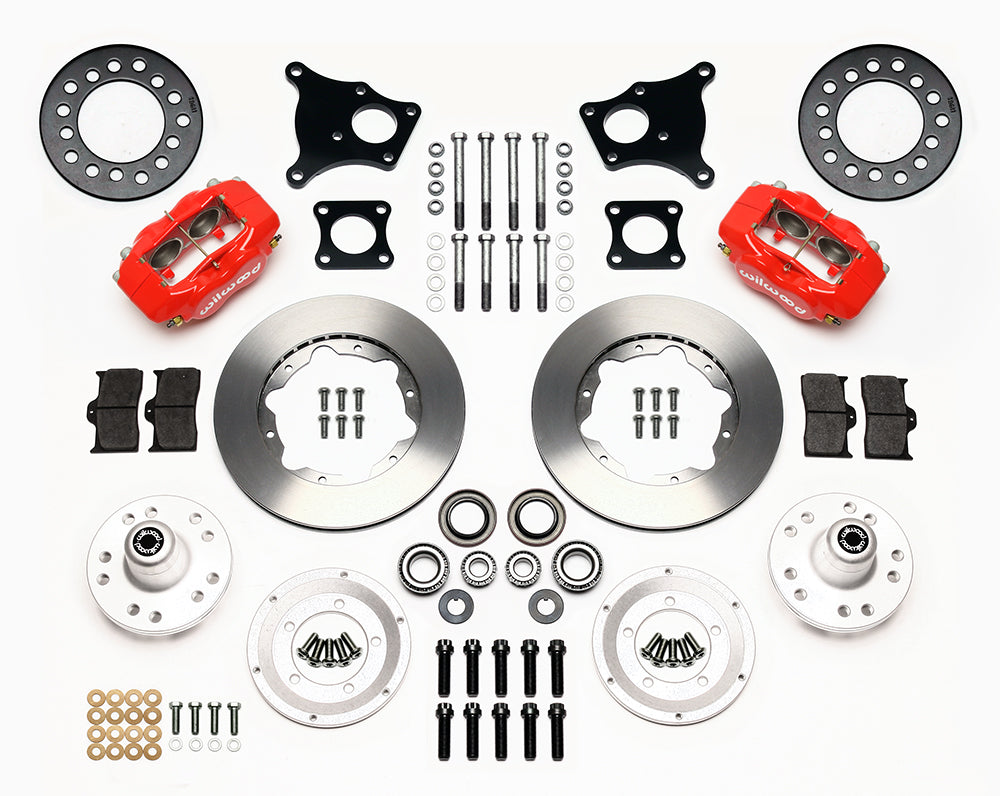

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs and bearings.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 14 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.
• Wheel seating: the specified support spacer is required when the wheel contact face overhangs the hub. The support spacer is included with this kit. For stamped steel wheels without overhang, use the specified hub shield, obtained separately.

Fitment & Compatibility

Follow DS822 for the Kelsey-Hayes bearing-seat configuration. The included hubs are not suitable for Bendix spindles; the inner and outer bearing sizes are the decisive distinction. Retain only suitable original spindle fastening parts as directed and establish bracket spacing before aligning the calipers. Check the relevant model year in the table, rather than applying the full 1969–1976 span to every AMC listed. Use separate compatible brake hoses and verify wheel clearance with the template.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.

California Proposition 65 warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
