Wilwood Rear Red Four-Piston Brake Conversion, Chevrolet Corvette C4 1985–1987, 12.88-Inch SRP Rotors

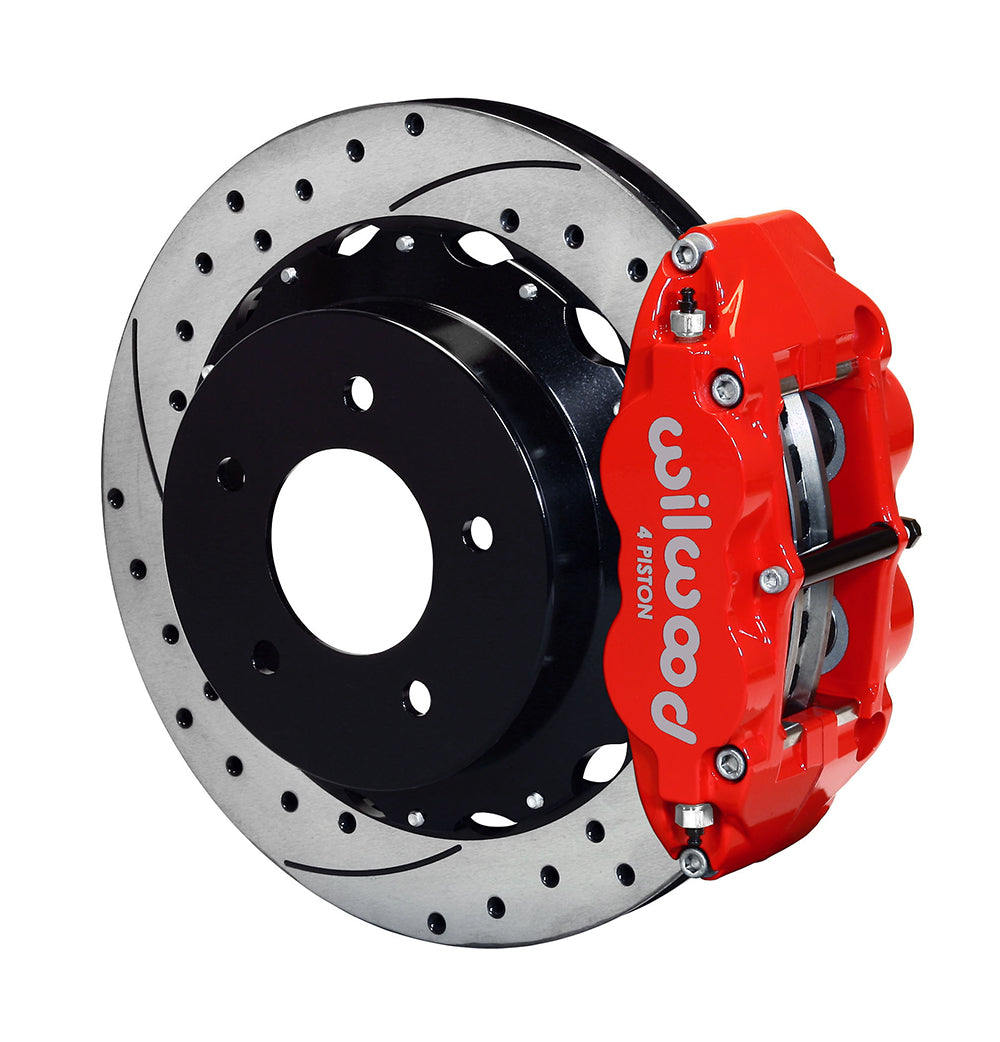

The red-caliper version of this Wilwood Corvette C4 rear kit pairs SRP rotors with radial-mount Superlite 4R brakes. Each rotor measures 12.88 inches in diameter and 1.10 inches in width, with the friction ring bolted to a separate hat. Supplied BP-10 pads are the selected compound for this drilled/slotted configuration. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-11920-DR
• Type: Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake
• Calipers: Forged Narrow Superlite 4R; 4 pistons per caliper; Red Powder Coat; radial mounting.
• Piston bores: 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat finish.
• Wheel bolt circles: 5 x 4.75 inches.

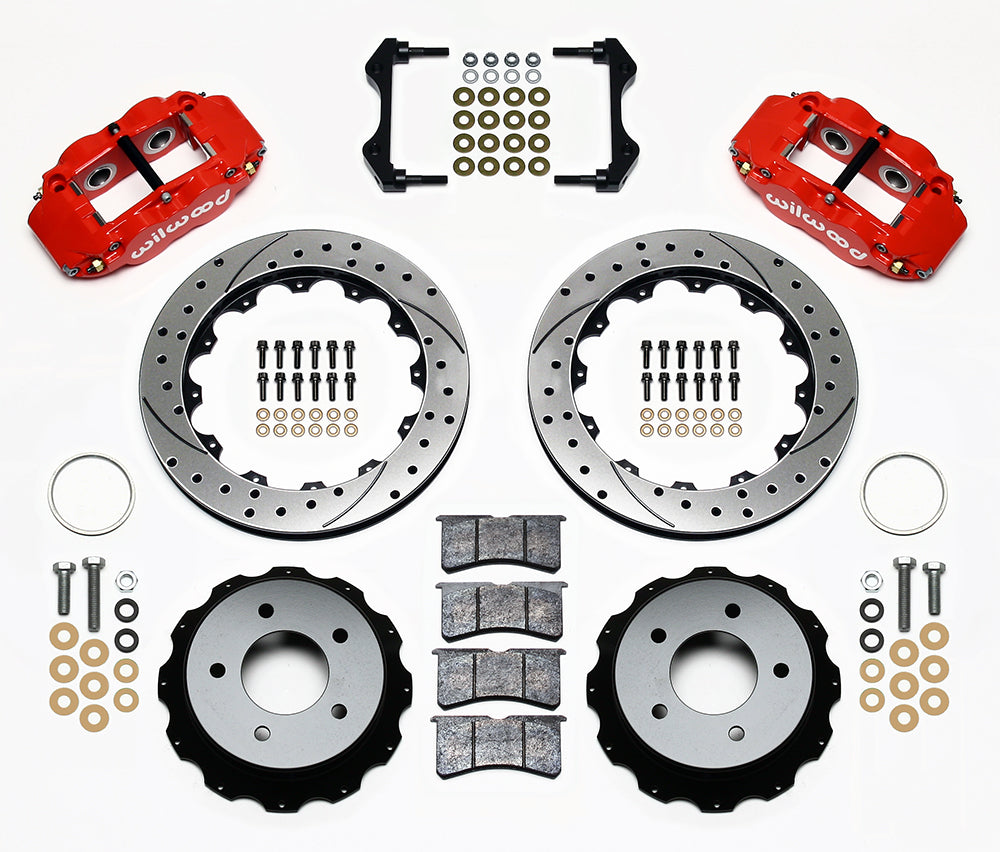

• Included: paired calipers, pads, rotor rings, hats, brackets and assembly hardware; suitable original hubs and parking shoes are retained.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 17 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Confirm the vehicle has the 1985–1987 C4 rear hardware shown in the installation drawing. Hub registration, mounting-face condition and caliper shimming matter to rotor alignment. Retain serviceable original parking-brake shoes and adjust their running clearance inside the new hats. Plan suitable flex lines separately; the original hose arrangement does not by itself establish compatibility. A 17-inch wheel is the conditional starting size, with the entire clearance profile needing verification.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
