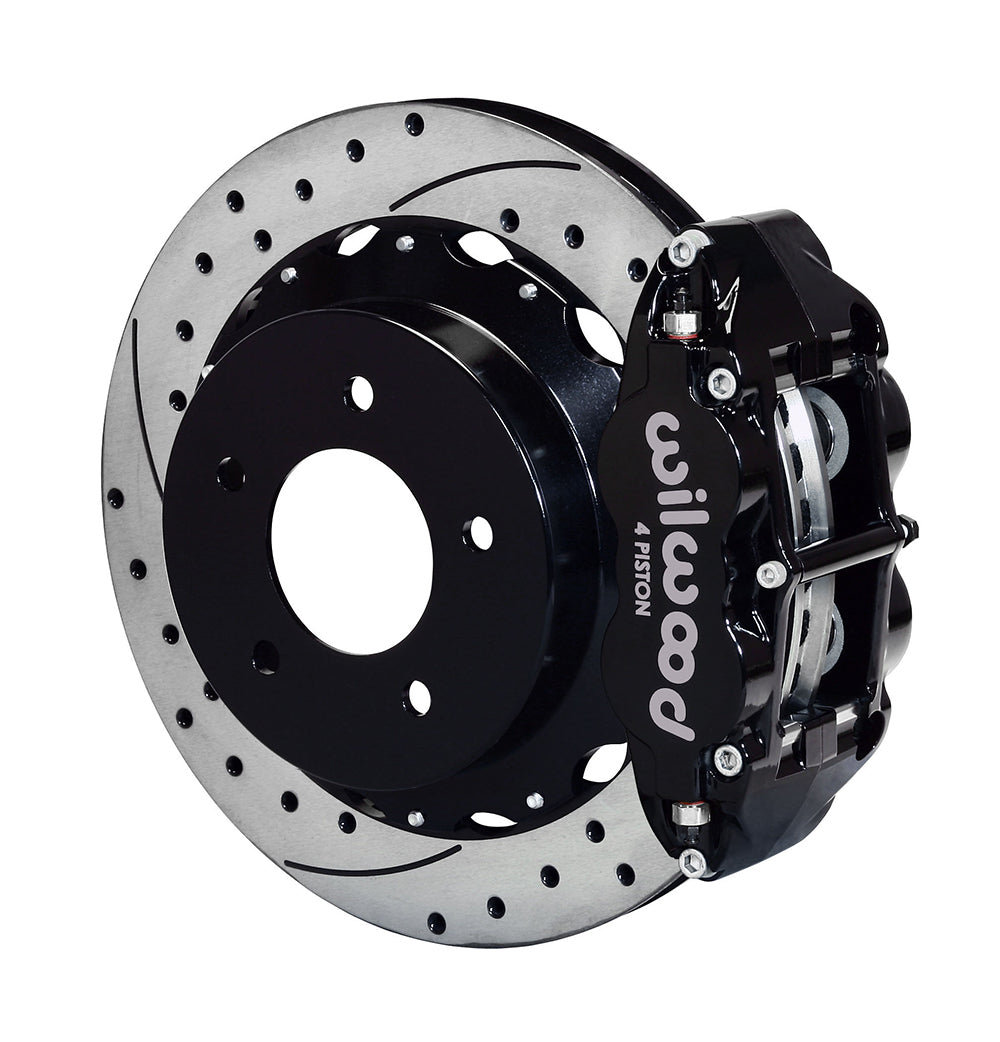

Wilwood Rear Superlite 4R Brake Kit for Chevrolet Corvette C4 (1985–1987), Black Calipers and Drilled/Slotted 12.88-Inch Rotors

This Wilwood rear conversion gives the 1985–1987 Chevrolet Corvette C4 a matched pair of four-piston Forged Narrow Superlite 4R calipers and 12.88-inch SRP drilled/slotted rotors. Black powder-coated calipers work with separate hats, BP-10 pads and the original rear-hub arrangement. It is an axle package, rather than a single replacement caliper or rotor. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-11920-D
• Type: Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake
• Calipers: Forged Narrow Superlite 4R; 4 pistons per caliper; Black Powder Coat; radial mounting.
• Piston bores: 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat finish.
• Wheel bolt circles: 5 x 4.75 inches.

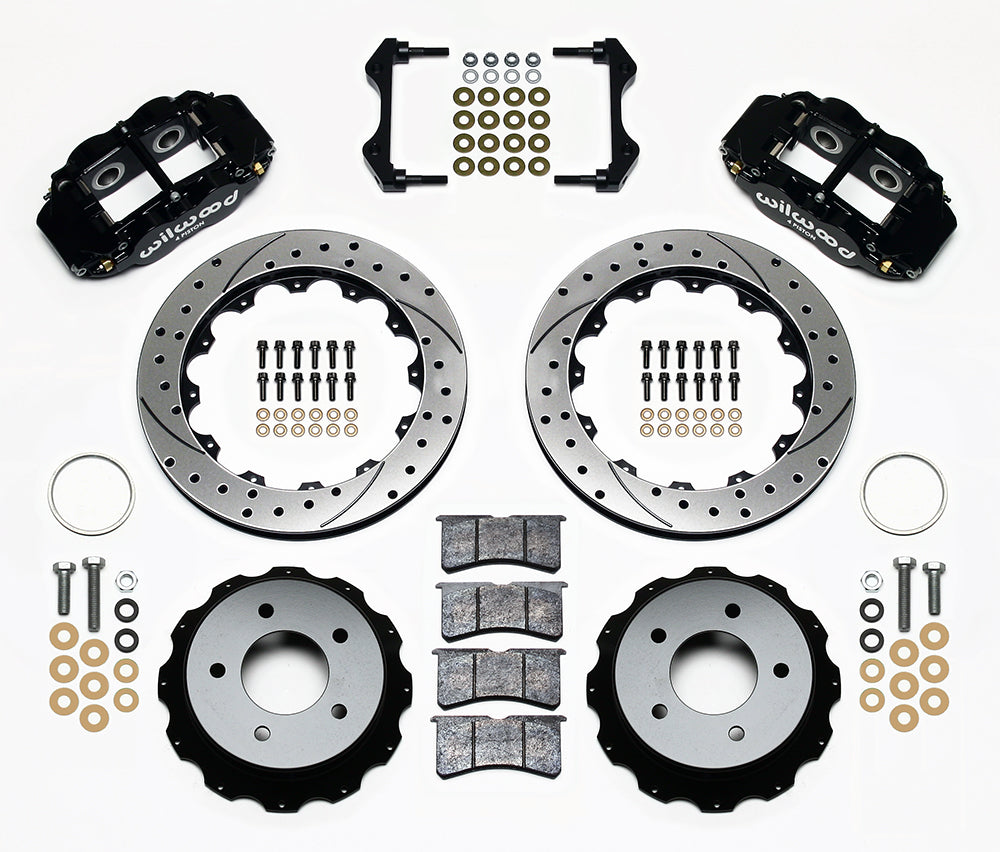

• Included: paired calipers, pads, rotor rings, hats, brackets and assembly hardware; suitable original hubs and parking shoes are retained.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 17 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Use this package with the C4 rear assembly specified in DS816. The original parking-brake shoes operate within the replacement hats; inspect and adjust them rather than assuming new shoes are supplied. Hydraulic hoses are separate, and the listed rear line kit must match the car. The manufacturer drawing, not the nominal wheel diameter alone, determines spoke and barrel clearance. This installation covers the 1985–1987 configuration; do not extend it to 1984 from the C4 generation name.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
