Wilwood Front D8-4 Caliper/Pad/Flex-Line Kit for Chevrolet Corvette C2/C3 (1965–1982), Anodized

This Wilwood D8-4 package replaces the Corvette's front calipers, pads and flex lines while retaining the original rotor, hub and spindle arrangement. Anodized four-piston calipers use 1.88-inch bores and the specified ProMatrix pads. It is a caliper service package rather than a larger-rotor conversion kit. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10789
• Type: D8-4 Front Replacement Caliper Kit
• Calipers: D8-4; 4 pistons; Type III Anodize.
• Bores: 1.88, 1.88 inches. Pads: PM - ProMatrix.

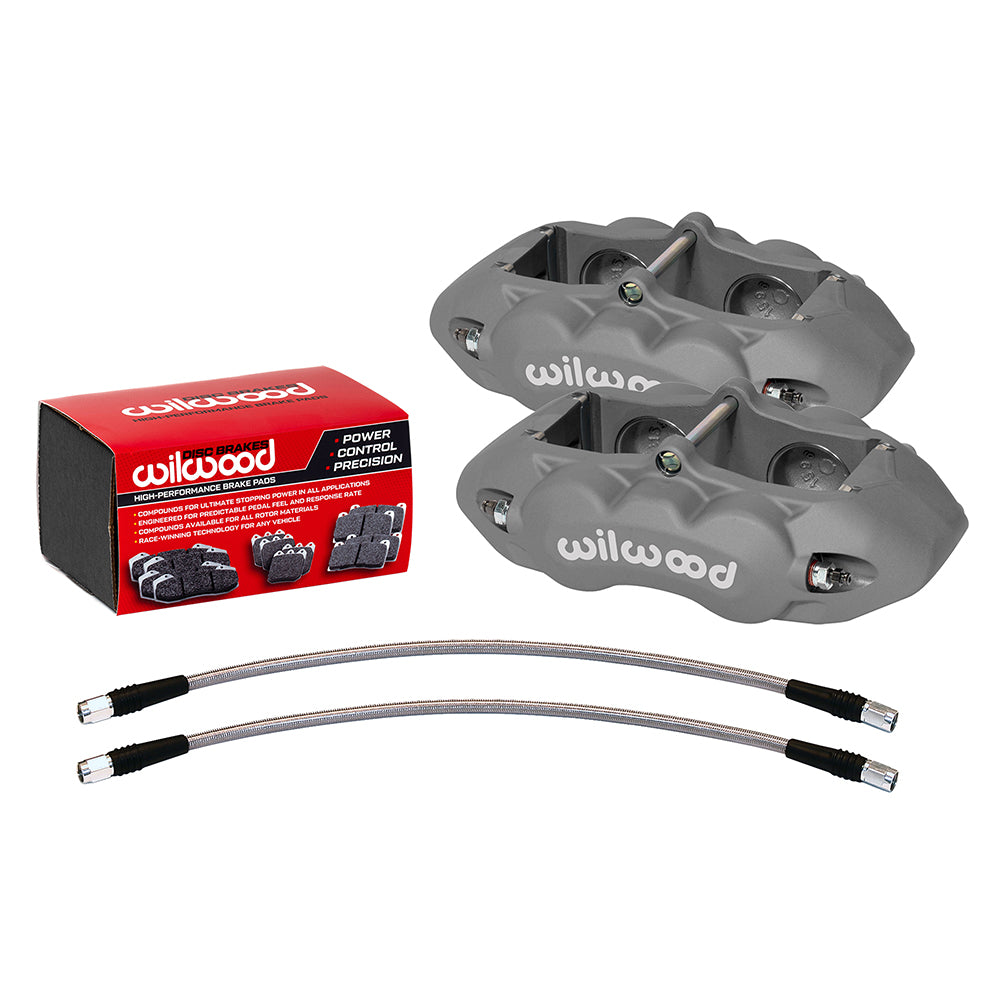

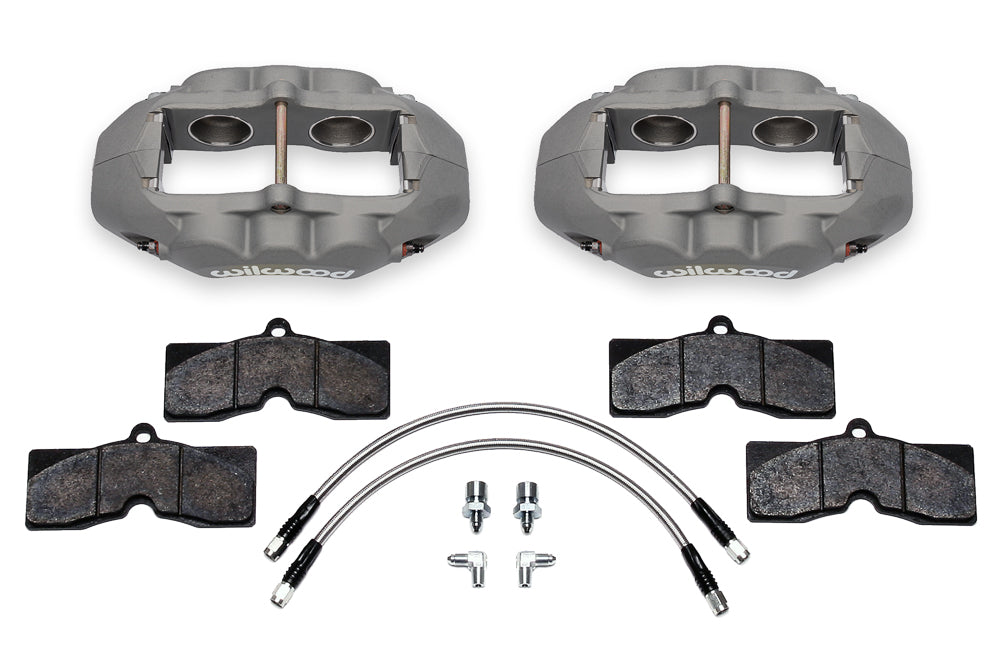

• Included components: paired front calipers, ProMatrix pads, flex lines, fittings and mounting hardware. Existing rotors, hubs and spindles are retained and must meet service limits.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Confirm the 1965–1982 C2/C3 front layout and inspect the retained rotors, bearings and mounting points against service limits. DS650 states that the original rubber hoses cannot be adapted to these calipers; use the included braided flex lines and fittings. The stock master cylinder can operate the kit, subject to system condition and brake-bias evaluation. Check the actual wheel-clearance drawing before assembly.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
