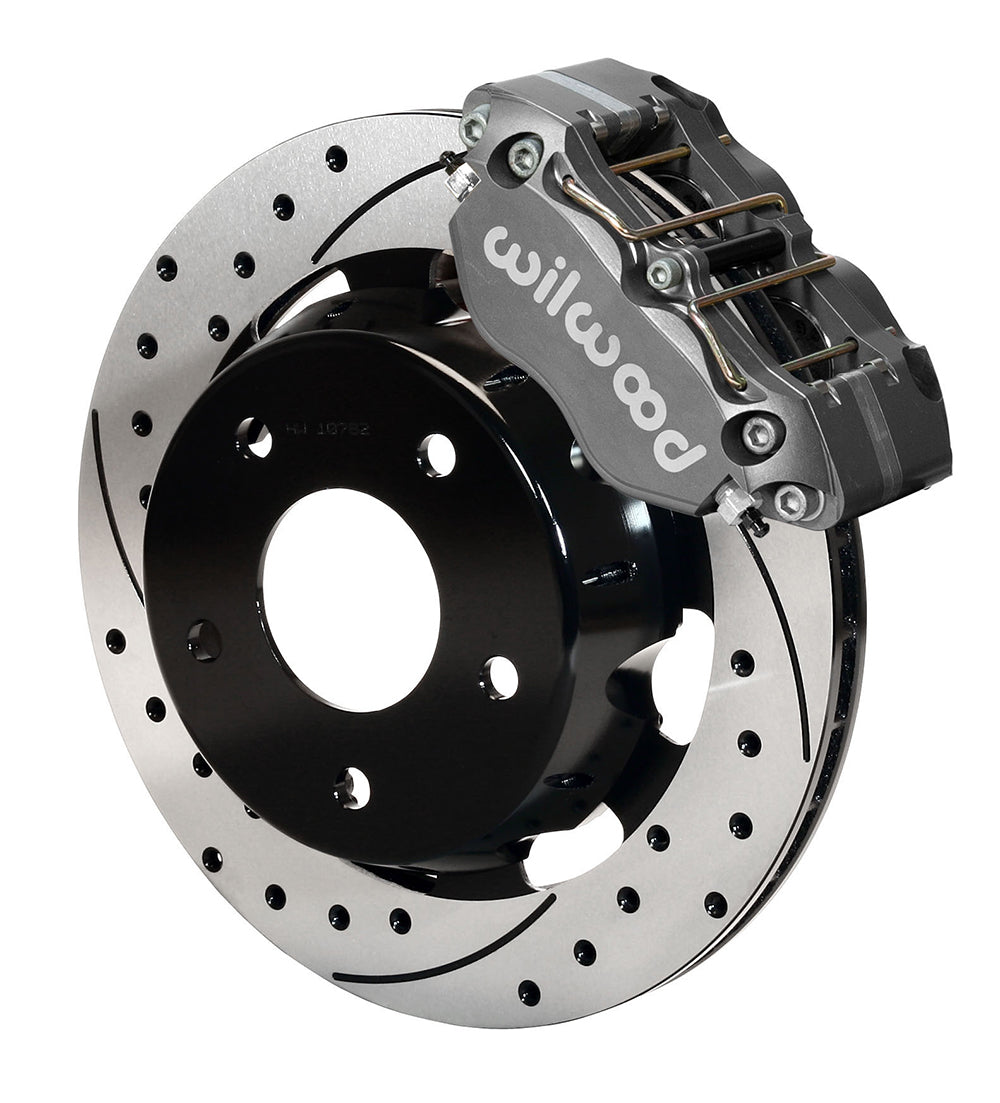

Wilwood Front Dynapro 11.75-Inch SRP Pro-Street Kit, Chevrolet Camaro/Pontiac Firebird (1993–2002)

Drilled/slotted 11.75-inch vented rotors and four-piston Narrow Dynapro calipers make up this Wilwood F-body front conversion. The separate hats use the original hub arrangement, with a 0.81-inch-wide friction ring. Its mounting brackets are for the later factory twin-piston-caliper spindle, not every F-body knuckle. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10787-D
• Type: Dynapro Radial Front Pro-Street Brake Kit
• Calipers: Narrow Dynapro Radial Mount; 4 pistons; Type III Anodize.
• Bores: 1.75, 1.75 inches. Pads: BP-10.
• Rotors: 11.75-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 32 vanes.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

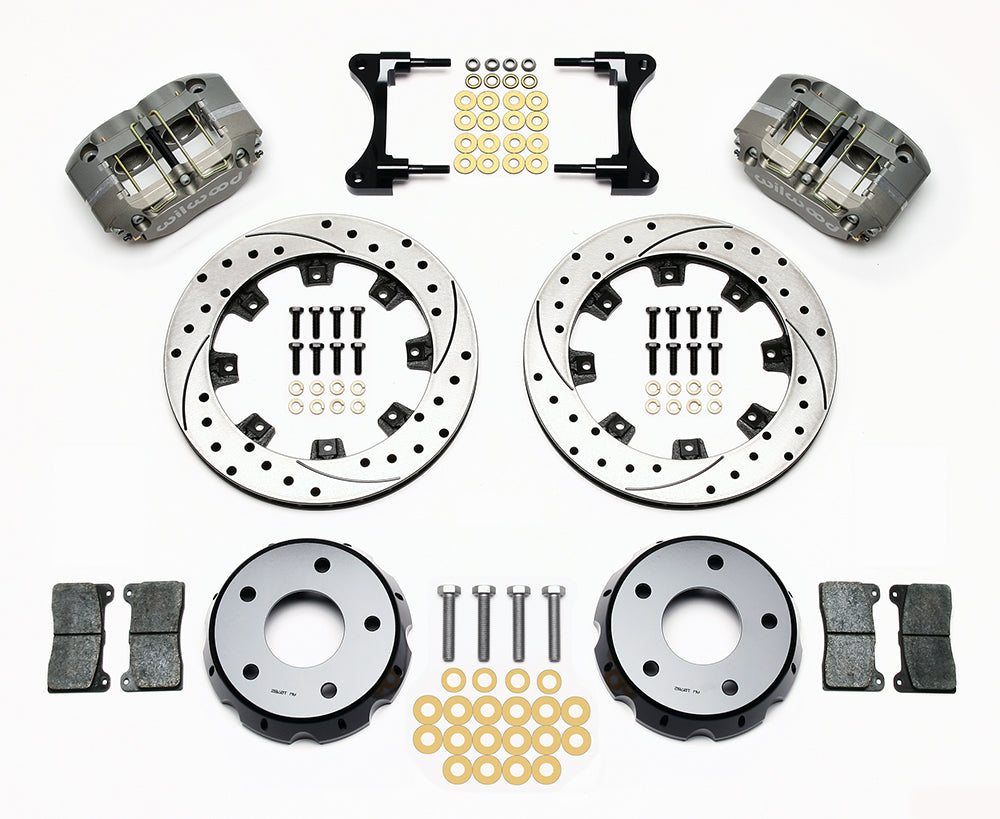

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.
• Application-use guidance: Pro Street / Drag Race. For Drag applications weighing in excess of 2800 lbs. Confirm vehicle weight and brake configuration with Wilwood for the completed installation.

Fitment & Compatibility

Check DS653 and the exact Camaro or Firebird row before ordering. The 1993–1997 Camaro entries require conversion to 1998–2002-type spindles, while the later original layout must still be inspected for modification or wear. Hydraulic lines are separate. Verify the actual wheel-clearance drawing and caliper centering before the assembled system is bled and tested.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
