Wilwood Front Dynapro Drag Kit, Chevrolet Camaro/Pontiac Firebird (1993–2002), 11.75-Inch Drilled Steel Rotors

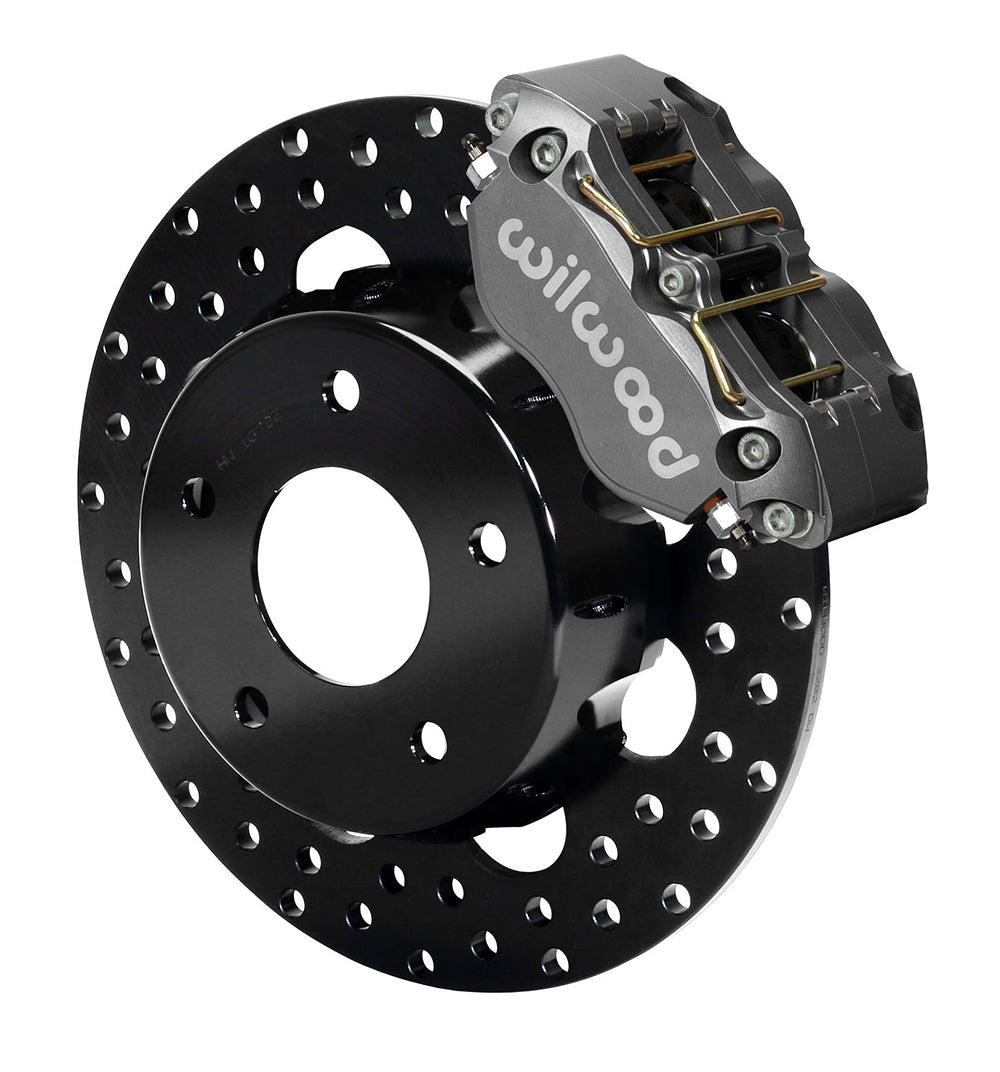

Wilwood's thin-rotor Dynapro front drag package uses drilled 11.75-inch steel friction rings and anodized four-piston calipers. The 0.35-inch solid rotors distinguish it from the vented Pro-Street package. Separate hats retain the specified original hub arrangement on the later F-body disc spindle. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10786-D
• Type: Dynapro Radial Front Drag Brake Kit
• Calipers: Narrow Dynapro Radial Mount; 4 pistons; Type III Anodize.
• Bores: 1.75, 1.75 inches. Pads: BP-10.
• Rotors: 11.75-inch diameter × 0.35-inch width; Drilled, Steel, Black Electro Coat. Solid, unvented.
• Wheel bolt circles: 5 x 4.75 inches.

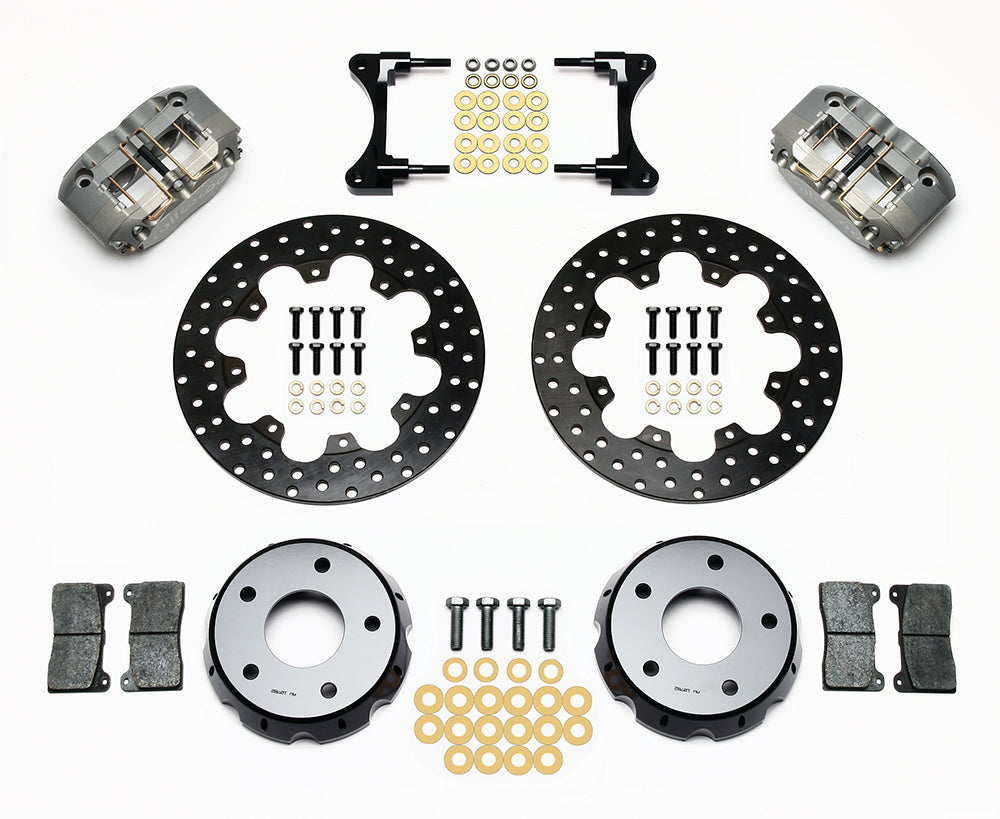

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.
• Application-use guidance: For use on cars up to 2800 pounds with rear discs or on cars up to 2400 pounds with rear drums. Confirm vehicle weight and brake configuration with Wilwood for the completed installation.

Fitment & Compatibility

DS652 identifies the 1998–2002 Camaro/Firebird spindle originally carrying twin-piston calipers. Earlier Camaro rows require conversion to that later spindle; the 1993–1997 single-piston arrangement does not accept the kit directly. Select hydraulic lines separately, verify the intended competition duty and compare the actual wheel profile with the clearance template before assembly.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
