Product details

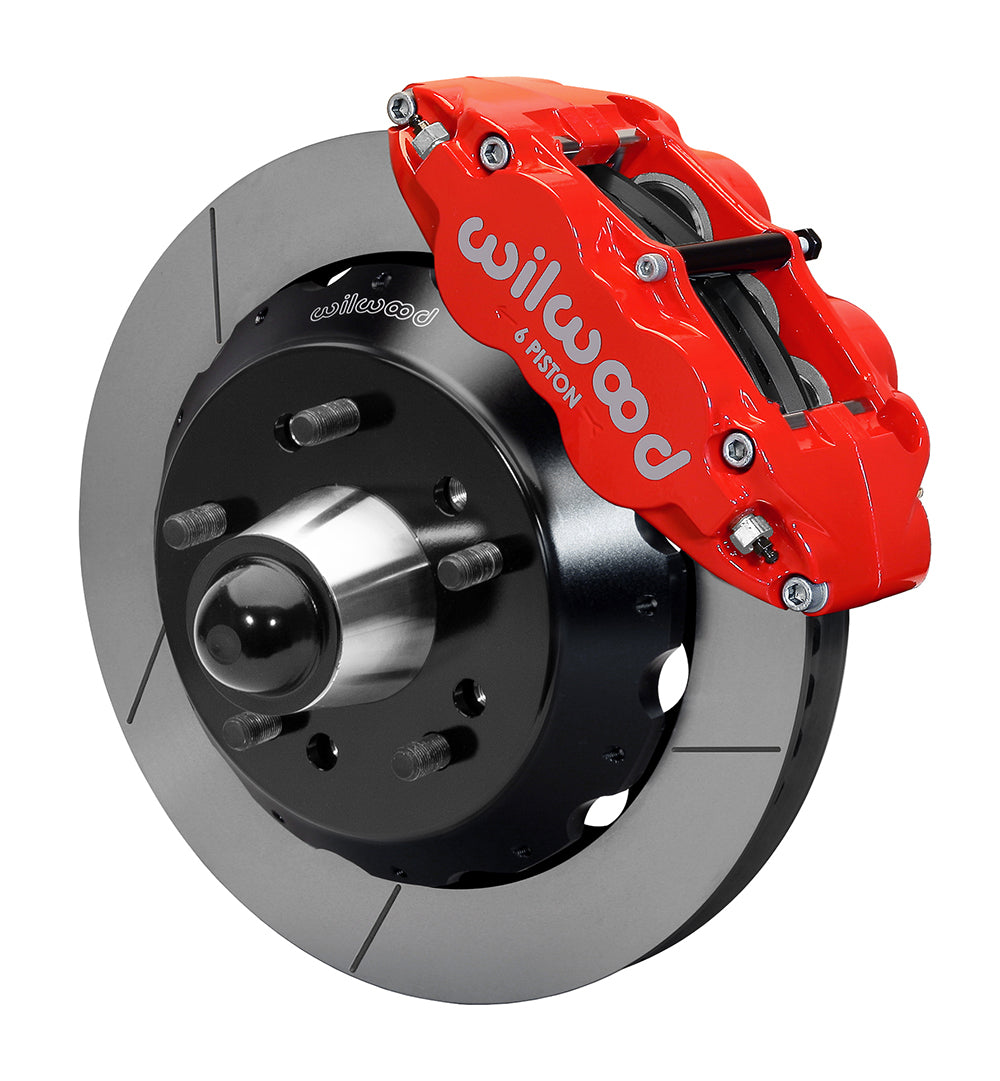

This Wilwood front truck package pairs red Superlite calipers with 14-inch GT slotted rotors on replacement hubs and separate hats. The mounting system is specific to the CPP drop spindle identified by production period. The larger rotor envelope is separate from the spindle and five-lug hub compatibility checks. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 140-10776-R
- Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
- Calipers: Forged Narrow Superlite 6R; 6 pistons; Red Powder Coat.
- Bores: 1.75, 1.25, 1.25 inches. Pads: BP-10.
- Rotors: 14.00-inch diameter × 1.25-inch width; GT Slotted, Spec-37 Iron, Black Electro Coat. 72 curved vanes.
- Hubs: Hub - Hat Mount; Aluminum; Bare.
- Wheel bolt circles: 5 x 4.75; 5 x 5.00 inches.

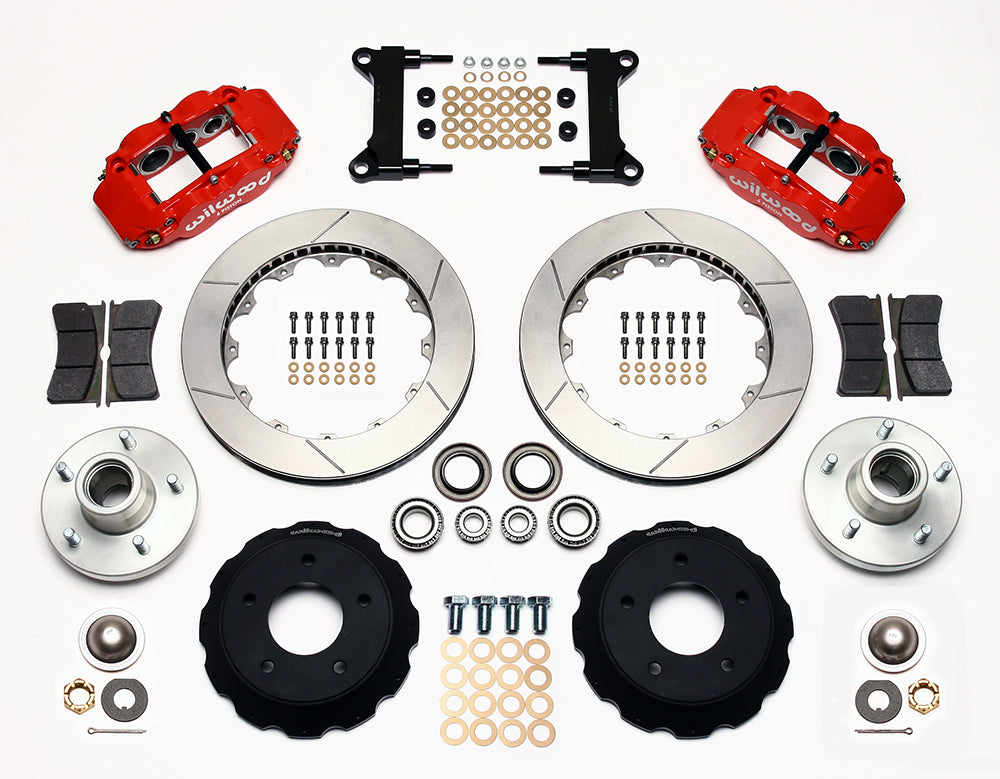

- Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
- Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
- Conditional wheel minimum: 18 inches. Check the clearance drawing for barrel and spoke offset.
Fitment & Compatibility
For the CPP truck arrangement, identify the installed CP30106-2/3/4 spindle against DS649 before choosing rotors or hubs. The brake kit supplies neither that spindle nor a universal substitute for other suspension hardware. The preserved Ridetech applications remain subject to confirmation of the mounting interface. This GT package uses 72-curved-vane, 14-inch friction rings on the specified five-lug hub layout. Compare the actual wheel template and inspect tire, bearing and registration details before completing the separate hydraulic plumbing and brake test.
Match the individual model, year, submodel and brake configuration in the fitment table below.
PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1963-1967 | Chevrolet | C10 Panel | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1967 | Chevrolet | C10 Panel | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1974 | Chevrolet | C10 Pickup | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1974 | Chevrolet | C10 Pickup | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | Chevrolet | Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | Chevrolet | Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1965 | GMC | 1000 Series | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1965 | GMC | 1000 Series | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | GMC | Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | GMC | Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1965, 1967, 1969 | Chevrolet | C10 Pickup | w/ Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 6, 3, 4, 5 |
| 1966 | GMC | 1000 | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1966 | GMC | 1000 | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1986 | Chevrolet | C10 Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1986 | Chevrolet | C10 Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974 | GMC | C15/C1500 Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974 | GMC | C15/C1500 Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974, 1979-1986 | GMC | C1500 Pickup | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974, 1979-1986 | GMC | C1500 Pickup | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1974 | Chevrolet | Blazer | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1974 | Chevrolet | Blazer | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1982 | GMC | Jimmy | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1982 | GMC | Jimmy | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1986 | Chevrolet | C10 | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1986 | Chevrolet | C10 | w/ Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 6, 3, 4, 5 |
| 1975-1982 | Chevrolet | K5 Blazer | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1982 | Chevrolet | K5 Blazer | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1978 | GMC | C15 | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1978 | GMC | C15 | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1978 | GMC | C15 Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1979-1986 | GMC | C1500 Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1979-1986 | GMC | C1500 Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | Chevrolet | R10 Pickup | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | Chevrolet | R10 Pickup | w/ Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 6, 3, 4, 5 |
| 1987 | Chevrolet | R10 Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | Chevrolet | R10 Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | GMC | R1500 Pickup | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | GMC | R1500 Pickup | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
