Product details

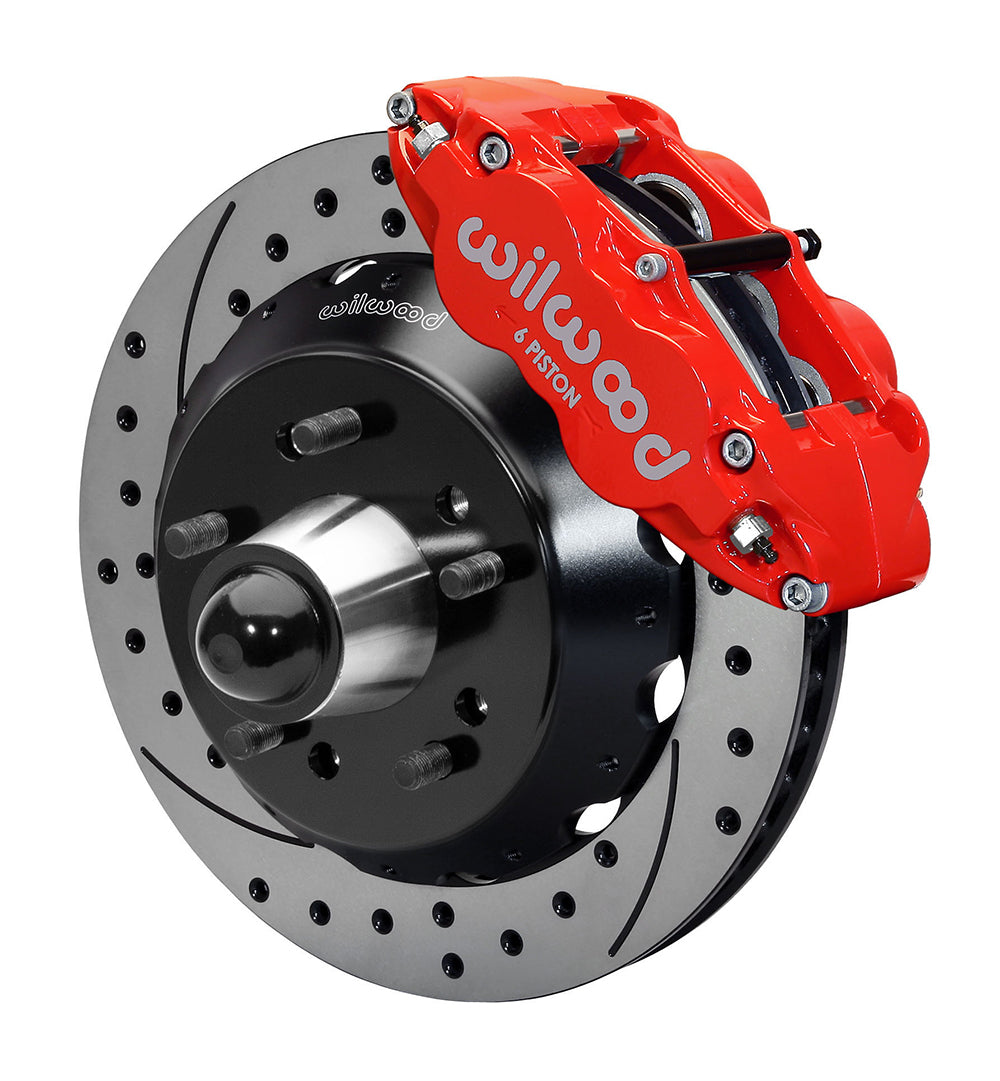

Red six-piston Superlite calipers work over 14-inch drilled/slotted rotors in this Wilwood front truck conversion. The hats and replacement hubs are for the specified CPP drop-spindle arrangement. The complete hub and caliper geometry must match the installed spindle, rather than the vehicle model name alone. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 140-10776-DR
- Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
- Calipers: Forged Narrow Superlite 6R; 6 pistons; Red Powder Coat.
- Bores: 1.75, 1.25, 1.25 inches. Pads: BP-10.
- Rotors: 14.00-inch diameter × 1.25-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 72 curved vanes.
- Hubs: Hub - Hat Mount; Aluminum; Bare.
- Wheel bolt circles: 5 x 4.75; 5 x 5.00 inches.

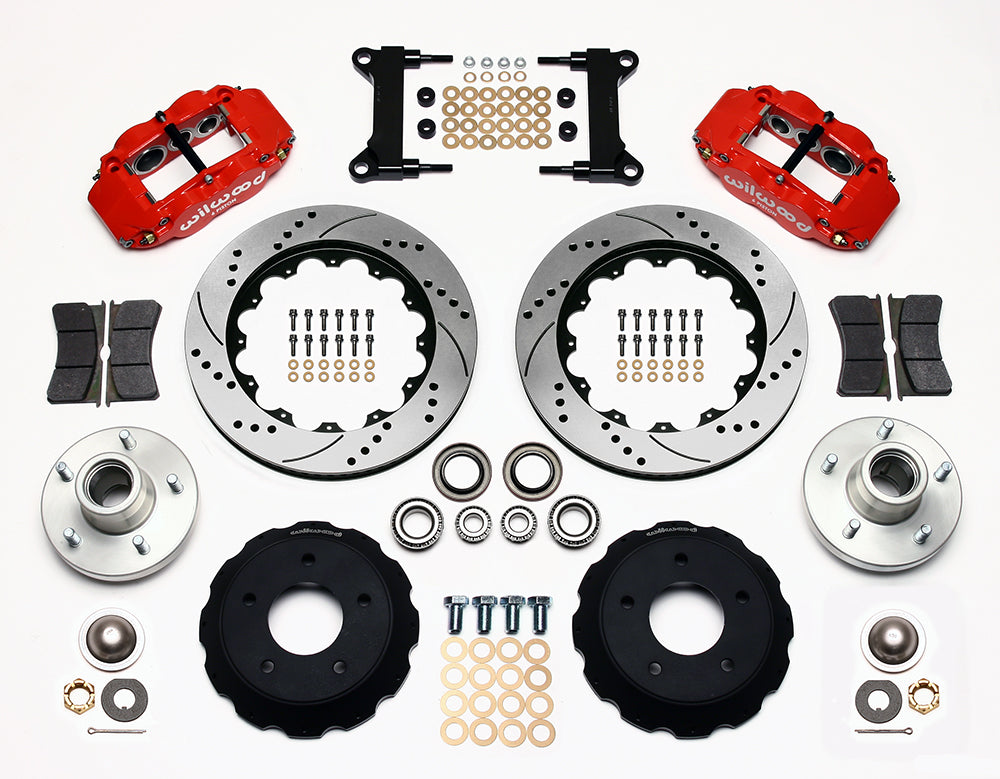

- Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
- Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
- Conditional wheel minimum: 18 inches. Check the clearance drawing for barrel and spoke offset.
Fitment & Compatibility
The bracket system in DS649 is for the identified CPP truck spindle rather than a factory steering knuckle. Match its CP30106 version and the vehicle's individual year/model row. Ridetech rows need confirmation because they conflict with the CPP-only kit note. The 14-inch SRP friction ring and six-piston caliper require the larger clearance template; wheel bolt pattern alone cannot establish fit. Inspect hub bearings, register and wheel studs before assembling the hats, then route the separate hydraulic lines through full steering travel.
Match the individual model, year, submodel and brake configuration in the fitment table below.
PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1963-1967 | Chevrolet | C10 Panel | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1967 | Chevrolet | C10 Panel | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1974 | Chevrolet | C10 Pickup | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1974 | Chevrolet | C10 Pickup | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | Chevrolet | Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | Chevrolet | Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1965 | GMC | 1000 Series | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1965 | GMC | 1000 Series | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | GMC | Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | GMC | Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1965, 1967, 1969 | Chevrolet | C10 Pickup | w/ Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 6, 3, 4, 5 |
| 1966 | GMC | 1000 | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1966 | GMC | 1000 | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1986 | Chevrolet | C10 Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1986 | Chevrolet | C10 Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974 | GMC | C15/C1500 Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974 | GMC | C15/C1500 Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974, 1979-1986 | GMC | C1500 Pickup | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974, 1979-1986 | GMC | C1500 Pickup | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1974 | Chevrolet | Blazer | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1974 | Chevrolet | Blazer | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1982 | GMC | Jimmy | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1982 | GMC | Jimmy | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1986 | Chevrolet | C10 | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1986 | Chevrolet | C10 | w/ Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 6, 3, 4, 5 |
| 1975-1982 | Chevrolet | K5 Blazer | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1982 | Chevrolet | K5 Blazer | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1978 | GMC | C15 | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1978 | GMC | C15 | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1978 | GMC | C15 Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1979-1986 | GMC | C1500 Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1979-1986 | GMC | C1500 Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | Chevrolet | R10 Pickup | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | Chevrolet | R10 Pickup | w/ Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 6, 3, 4, 5 |
| 1987 | Chevrolet | R10 Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | Chevrolet | R10 Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | GMC | R1500 Pickup | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | GMC | R1500 Pickup | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
