Product details

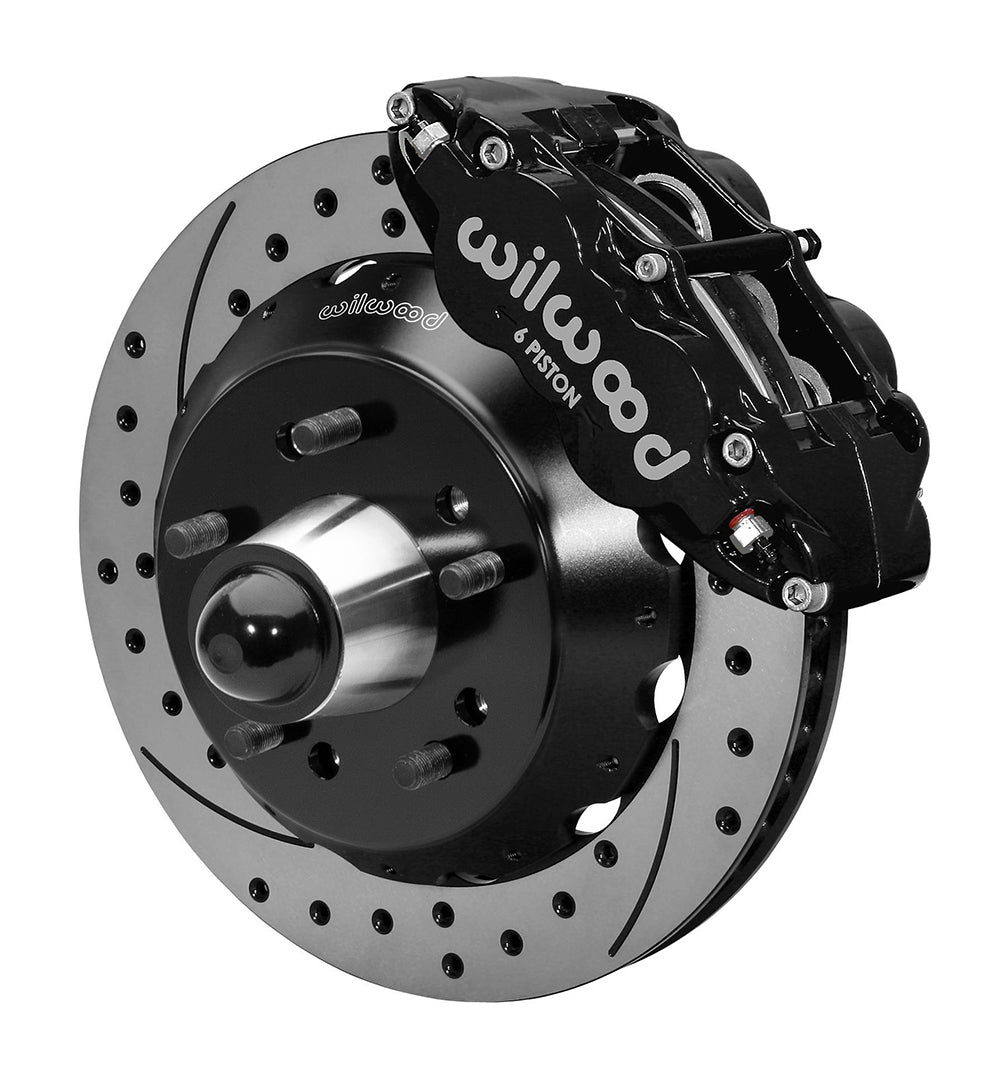

Black Superlite 6R calipers and 14-inch drilled/slotted rotors form this Wilwood front truck package. Replacement hubs and separate hats are matched to the selected CPP drop spindle, with 1.25-inch-wide Spec-37 friction rings. The larger brake package needs the wheel drawing specific to this kit. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 140-10776-D
- Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
- Calipers: Forged Narrow Superlite 6R; 6 pistons; Black Powder Coat.
- Bores: 1.75, 1.25, 1.25 inches. Pads: BP-10.
- Rotors: 14.00-inch diameter × 1.25-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 72 curved vanes.
- Hubs: Hub - Hat Mount; Aluminum; Bare.
- Wheel bolt circles: 5 x 4.75; 5 x 5.00 inches.

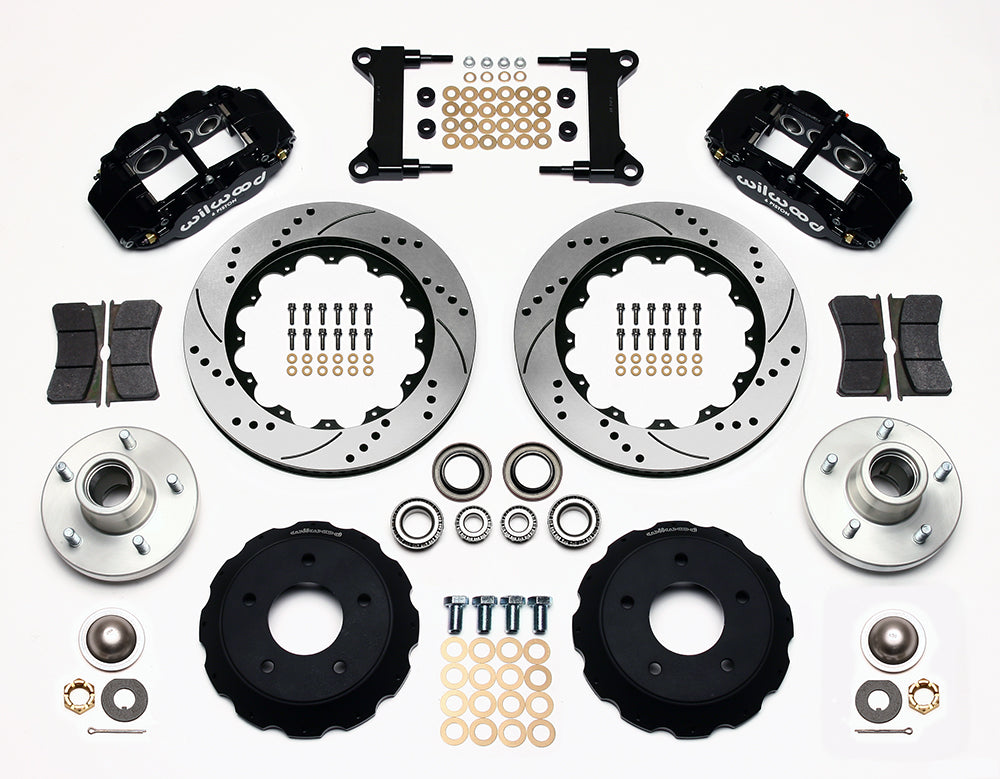

- Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
- Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
- Conditional wheel minimum: 18 inches. Check the clearance drawing for barrel and spoke offset.
Fitment & Compatibility
DS649 ties the brake mount to CPP CP30106-2, CP30106-3 or CP30106-4, selected for the truck's production configuration. The fitment table also names Ridetech, but the exact kit note limits the fit to CPP; obtain confirmation for those entries before installation. The drilled/slotted ring is 14.00 inches across and 1.25 inches wide, carried by a separate hat on the five-lug hub. Check the larger wheel template, bearing engagement and registration, then select hydraulic connections appropriate to the chassis.
Match the individual model, year, submodel and brake configuration in the fitment table below.
PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1963-1967 | Chevrolet | C10 Panel | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1967 | Chevrolet | C10 Panel | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1974 | Chevrolet | C10 Pickup | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1974 | Chevrolet | C10 Pickup | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | Chevrolet | Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | Chevrolet | Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1965 | GMC | 1000 Series | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1965 | GMC | 1000 Series | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | GMC | Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1963-1966 | GMC | Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1965, 1967, 1969 | Chevrolet | C10 Pickup | w/ Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 6, 3, 4, 5 |
| 1966 | GMC | 1000 | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1966 | GMC | 1000 | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1986 | Chevrolet | C10 Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1986 | Chevrolet | C10 Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974 | GMC | C15/C1500 Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974 | GMC | C15/C1500 Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974, 1979-1986 | GMC | C1500 Pickup | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1967-1974, 1979-1986 | GMC | C1500 Pickup | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1974 | Chevrolet | Blazer | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1974 | Chevrolet | Blazer | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1982 | GMC | Jimmy | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1970-1982 | GMC | Jimmy | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1986 | Chevrolet | C10 | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1986 | Chevrolet | C10 | w/ Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 6, 3, 4, 5 |
| 1975-1982 | Chevrolet | K5 Blazer | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1982 | Chevrolet | K5 Blazer | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1978 | GMC | C15 | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1978 | GMC | C15 | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1975-1978 | GMC | C15 Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1979-1986 | GMC | C1500 Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1979-1986 | GMC | C1500 Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | Chevrolet | R10 Pickup | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | Chevrolet | R10 Pickup | w/ Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 6, 3, 4, 5 |
| 1987 | Chevrolet | R10 Suburban | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | Chevrolet | R10 Suburban | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | GMC | R1500 Pickup | Vehicles using CPP 2" Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1987 | GMC | R1500 Pickup | Vehicles using Ridetech Drop Spindle | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
