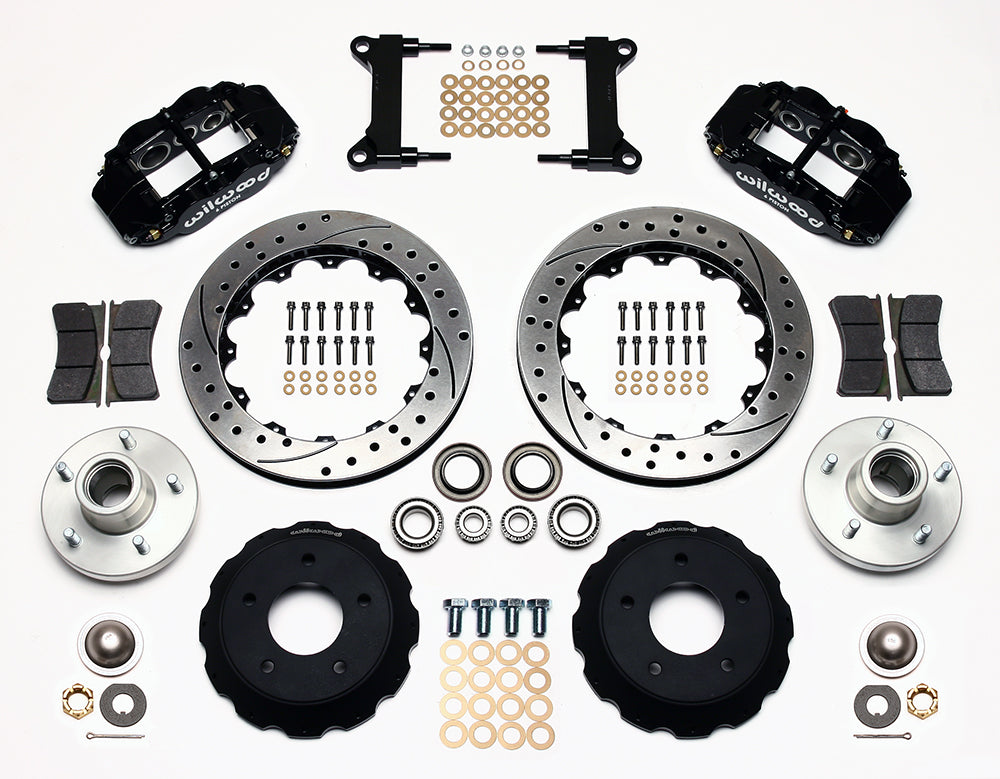

Wilwood front Superlite 6R kit for CPP truck 13.06-inch brake setup: black calipers and 13.06-inch drilled/slotted rotor pieces laid out

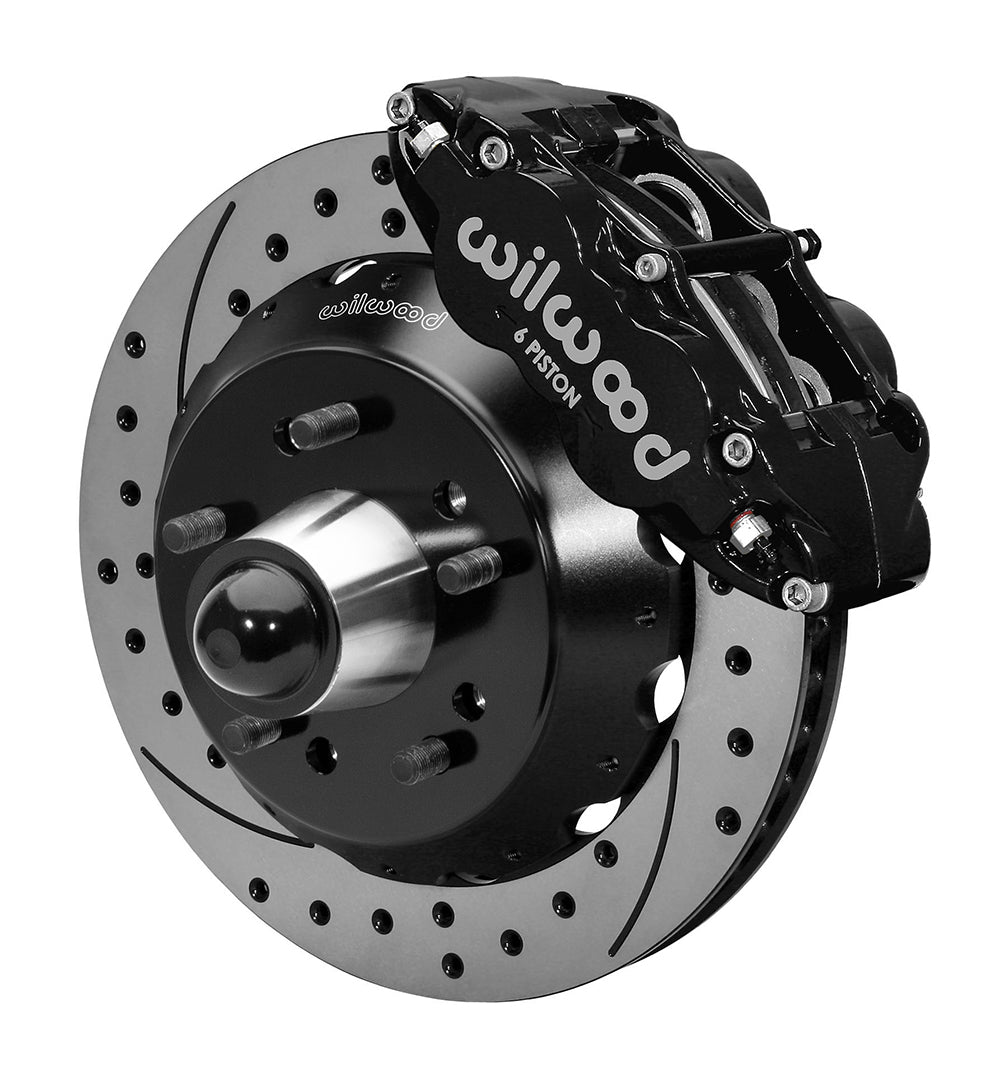

Wilwood front black Superlite 6R caliper beside a 13.06-inch drilled/slotted rotor, angled assembly for CPP truck 13.06-inch brake setup
Wilwood front Superlite 6R kit for CPP truck 13.06-inch brake setup: black calipers and 13.06-inch drilled/slotted rotor pieces laid out
Wilwood front black Superlite 6R caliper beside a 13.06-inch drilled/slotted rotor, angled assembly for CPP truck 13.06-inch brake setup

Wilwood Front Black SRP Brake/Hub Kit, Chevrolet/GMC CPP Drop-Spindle Trucks (1963–1987), 13.06-Inch

SKU: 140-10775-D

$2,368.64 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Black Superlite six-piston calipers clamp drilled/slotted 13.06-inch rotors in this Wilwood front truck conversion. Replacement hubs and separate hats mount to the specific CPP drop-spindle arrangement. The spindle part and production split must be identified rather than inferred from the Chevrolet/GMC truck name. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-10775-D
  • Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
  • Calipers: Forged Narrow Superlite 6R; 6 pistons; Black Powder Coat.
  • Bores: 1.75, 1.25, 1.25 inches. Pads: BP-10.
  • Rotors: 13.06-inch diameter × 1.25-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
  • Hubs: Hub - Hat Mount; Aluminum; Bare.
  • Wheel bolt circles: 5 x 4.75; 5 x 5.00 inches.
  • Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
  • Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
  • Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

The CPP spindle number is split by production period in DS648: CP30106-2 covers the specified 1963–1970 arrangement, -3 the 1971–1972 arrangement and -4 the 1973–1987 arrangement. Match the installed spindle rather than transferring those intervals to every Chevrolet/GMC model. The table's Ridetech entries require confirmation because the kit note specifies CPP only. Check five-lug wheel registration and the 13.06-inch brake template, then complete bearing installation, caliper centering and hydraulic connections for the truck.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1963-1967 Chevrolet C10 Panel Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1967 Chevrolet C10 Panel Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1974 Chevrolet C10 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1974 Chevrolet C10 Pickup Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1966 Chevrolet Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1966 Chevrolet Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1965 GMC 1000 Series Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1965 GMC 1000 Series Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1966 GMC Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1966 GMC Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1965, 1967, 1969 Chevrolet C10 Pickup w/ Ridetech Drop Spindle Drop Drum Front Kit 1, 5, 2, 3, 4
1966 GMC 1000 Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1966 GMC 1000 Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1986 Chevrolet C10 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1986 Chevrolet C10 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1974 GMC C15/C1500 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1974 GMC C15/C1500 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1974, 1979-1986 GMC C1500 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1974, 1979-1986 GMC C1500 Pickup Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1970-1974 Chevrolet Blazer Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1970-1974 Chevrolet Blazer Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1970-1982 GMC Jimmy Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1970-1982 GMC Jimmy Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1986 Chevrolet C10 Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1986 Chevrolet C10 w/ Ridetech Drop Spindle Drop Drum Front Kit 1, 5, 2, 3, 4
1975-1982 Chevrolet K5 Blazer Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1982 Chevrolet K5 Blazer Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1978 GMC C15 Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1978 GMC C15 Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1978 GMC C15 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1979-1986 GMC C1500 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1979-1986 GMC C1500 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1987 Chevrolet R10 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1987 Chevrolet R10 Pickup w/ Ridetech Drop Spindle Drop Drum Front Kit 1, 5, 2, 3, 4
1987 Chevrolet R10 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1987 Chevrolet R10 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1987 GMC R1500 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1987 GMC R1500 Pickup Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
