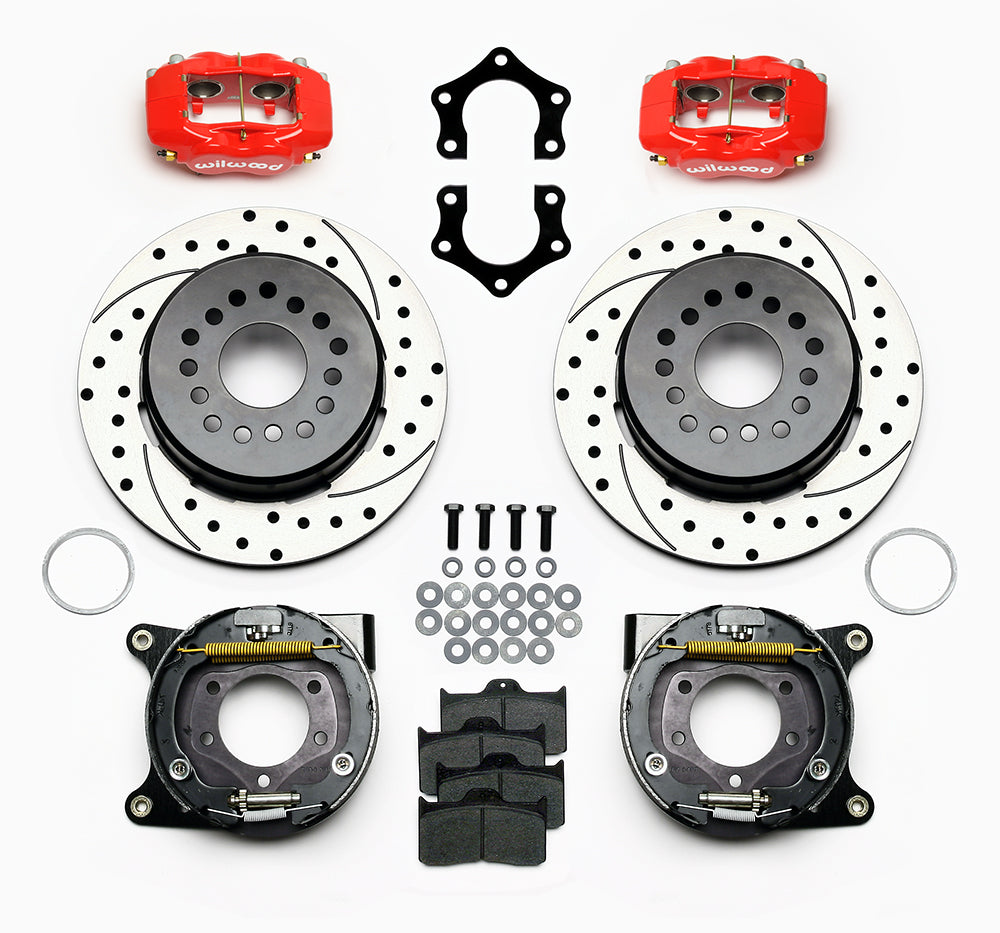

Wilwood rear Dynalite kit for Mopar/Dana snap-ring-bearing end: red calipers and 12.19-inch drilled/slotted rotor pieces laid out

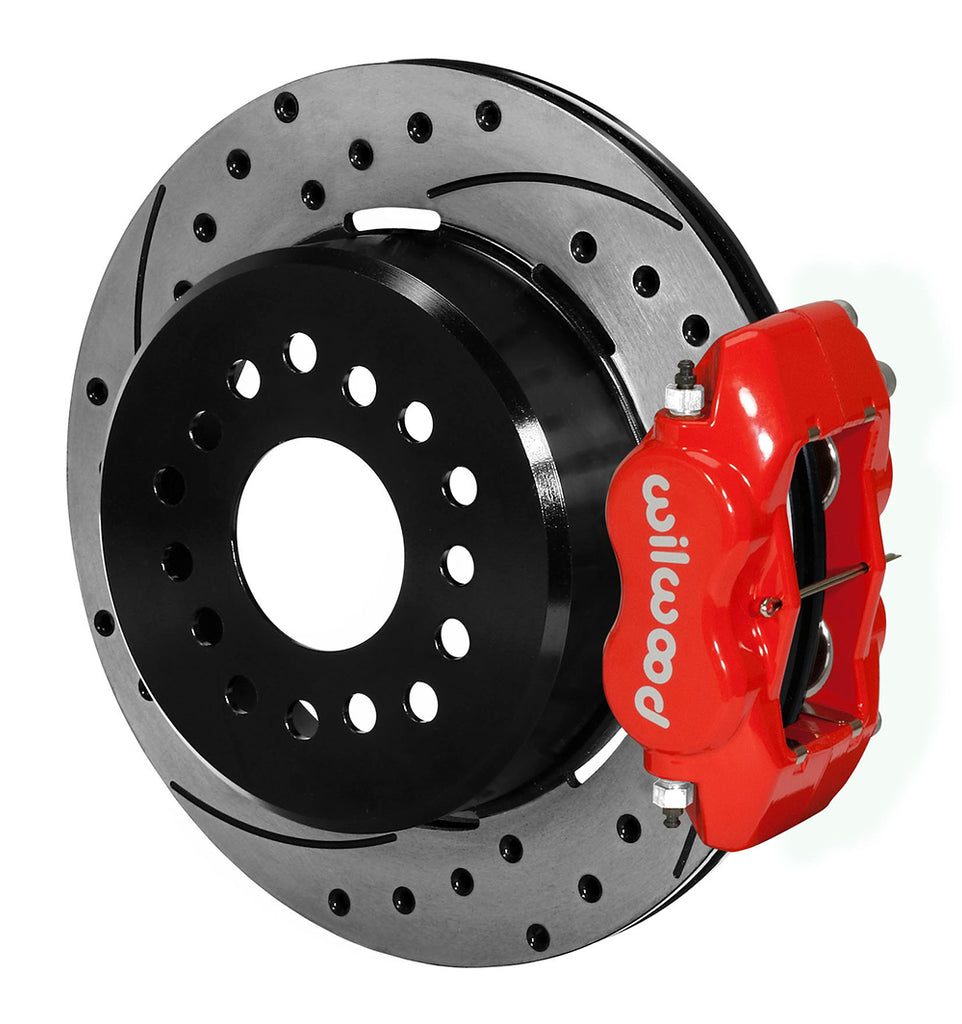

Wilwood rear red Dynalite caliper beside a 12.19-inch drilled/slotted rotor, angled assembly for Mopar/Dana snap-ring-bearing end
Wilwood rear Dynalite kit for Mopar/Dana snap-ring-bearing end: red calipers and 12.19-inch drilled/slotted rotor pieces laid out

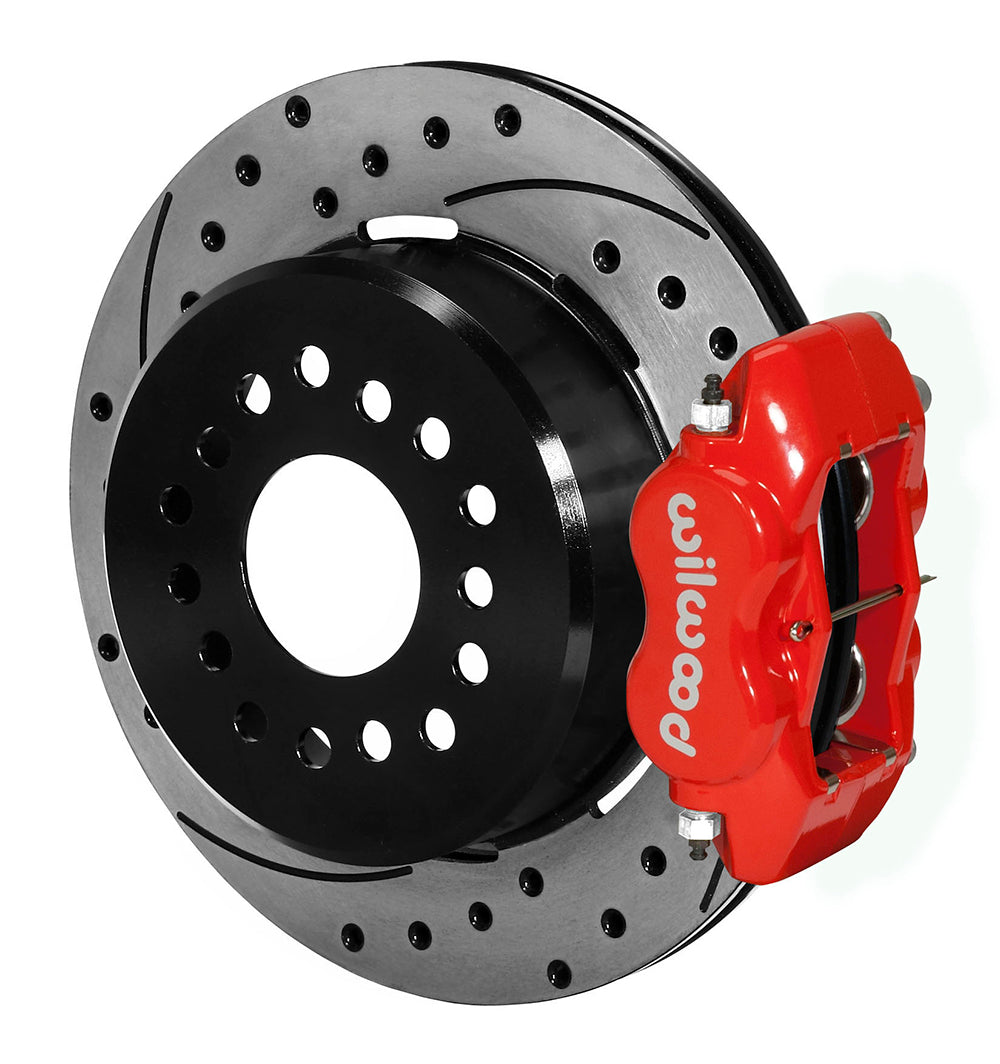

Wilwood rear red Dynalite caliper beside a 12.19-inch drilled/slotted rotor, angled assembly for Mopar/Dana snap-ring-bearing end

Wilwood Rear Red Dynalite SRP Parking Brake Conversion, Mopar 8¾/Dana 60, Snap-Ring Bearings, 12.19-Inch

SKU: 140-10767-DR

$1,238.81 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red four-piston Dynalite calipers work over drilled/slotted vented rotors in this Wilwood rear package. The 12.19-inch rotor includes the internal parking-drum arrangement for the specified Mopar/Dana axle end. Non-adjustable snap-ring bearings and the 2.50-inch flange offset are essential to the mounting geometry. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-10767-DR
  • Type: Forged Dynalite Rear Parking Brake Kit
  • Calipers: Forged Dynalite Internal; 4 pistons; Red Powder Coat.
  • Bores: 1.38, 1.38 inches. Pads: BP-10.
  • Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 32 vanes.
  • Rear housing end: Mopar/Dana.
  • Axle flange offset: 2.50 inches.
  • Wheel bolt pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.
  • Included: paired calipers, pads, rotors, brackets and assembly hardware. Internal parking-shoe assemblies included.
  • Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
  • Parking cables/connections separate.
  • Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Identify the actual bearing-retention system before ordering, using DS645 to compare the MO400-type arrangement and axle flange. A shared axle name alone does not confirm the correct housing end. Check wheel studs and registration, provide hydraulic lines and parking cables separately and compare the wheel's complete inner profile with the template before fitting the calipers.
