Wilwood Front Red GT Slotted Brake Kit, Toyota Matrix S/XRS FWD 2.4L (2009–2011), 12.88-Inch

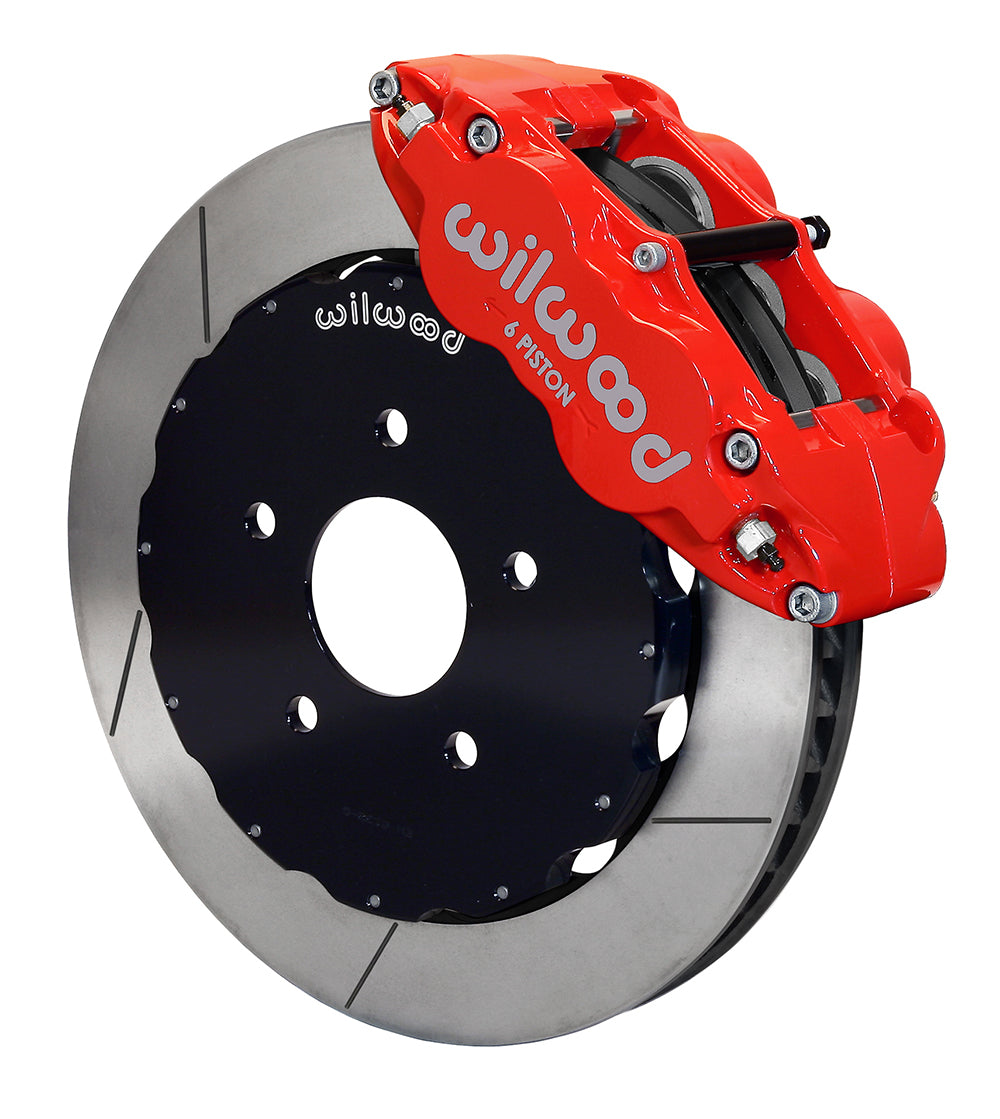

This red Wilwood Matrix kit uses GT slotted 12.88-inch rotors and six-piston Superlite calipers. The package is configured for the FWD 2.4L S/XRS spindle and hub, with separate hats mounting the vented friction rings. It does not provide replacement hubs or a universal Toyota front mounting arrangement. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10752-R
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Red Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; GT Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel bolt circles: 5 x 4.50 inches.

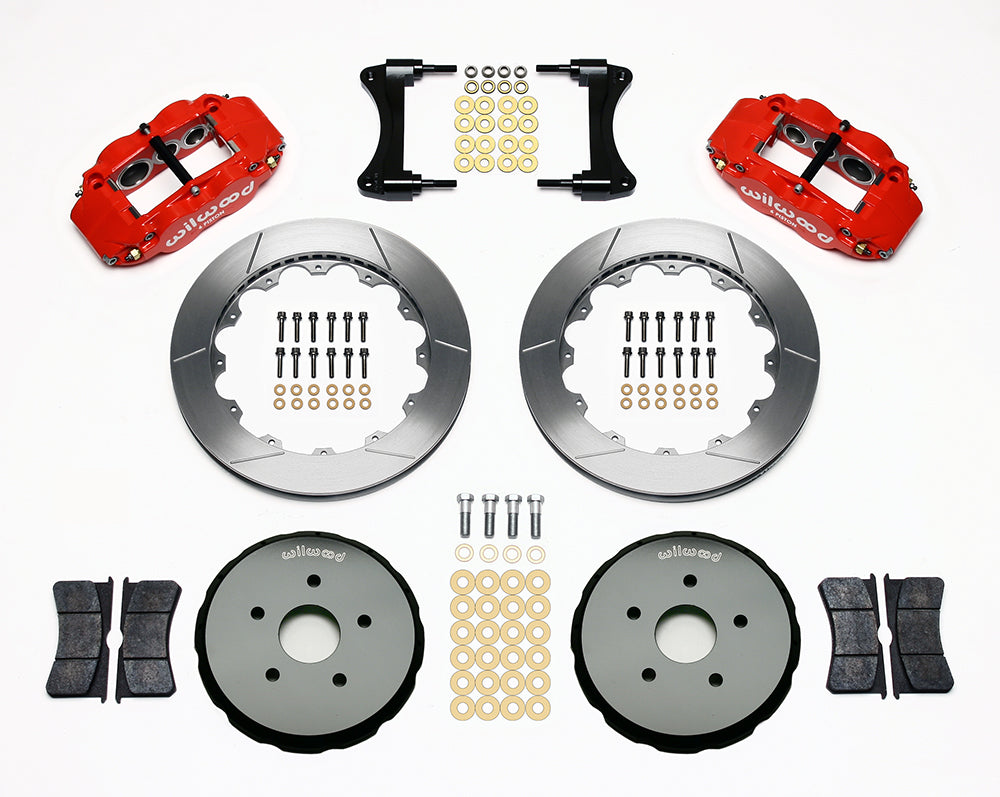

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the exact 2009–2011 model row, bolt circle and hub registration against DS647. A different engine or AWD configuration cannot be selected by the shared Matrix name alone. Provide compatible hydraulic lines separately and compare the intended wheel with the full clearance drawing. Inspect bracket alignment, bleed the system and confirm pedal travel before bedding the pads.

Match the individual model, year, submodel and brake configuration in the fitment table below.
