Wilwood Front Black 12.88-Inch SRP Kit, Toyota Matrix S/XRS FWD 2.4L (2009–2011)

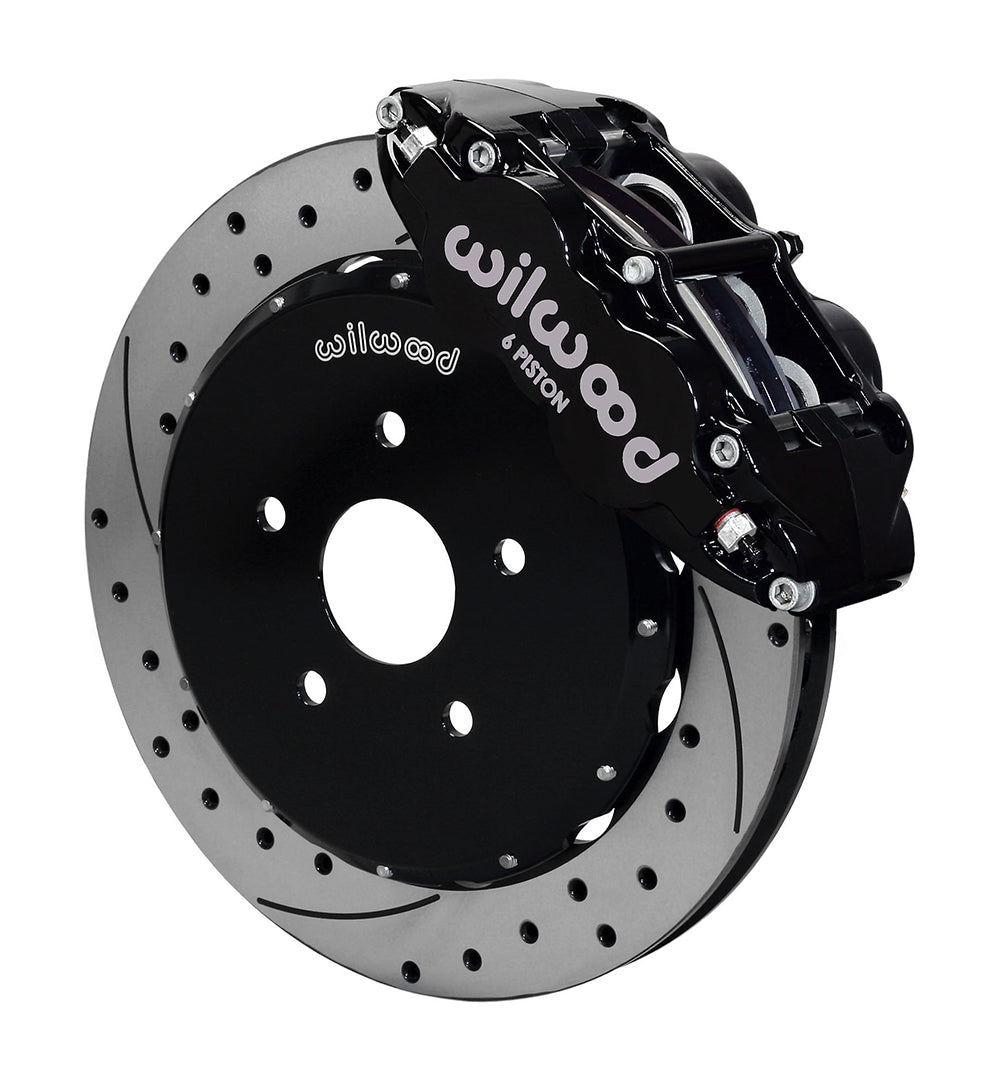

Black Superlite 6R calipers and drilled/slotted 12.88-inch rotors form this Wilwood Matrix front package. The separate hats and radial brackets are configured for the FWD 2.4L S/XRS hub and spindle arrangement. The six-piston assembly retains the original hub, making its bolt circle and register important selection details. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10752-D
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Black Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel bolt circles: 5 x 4.50 inches.

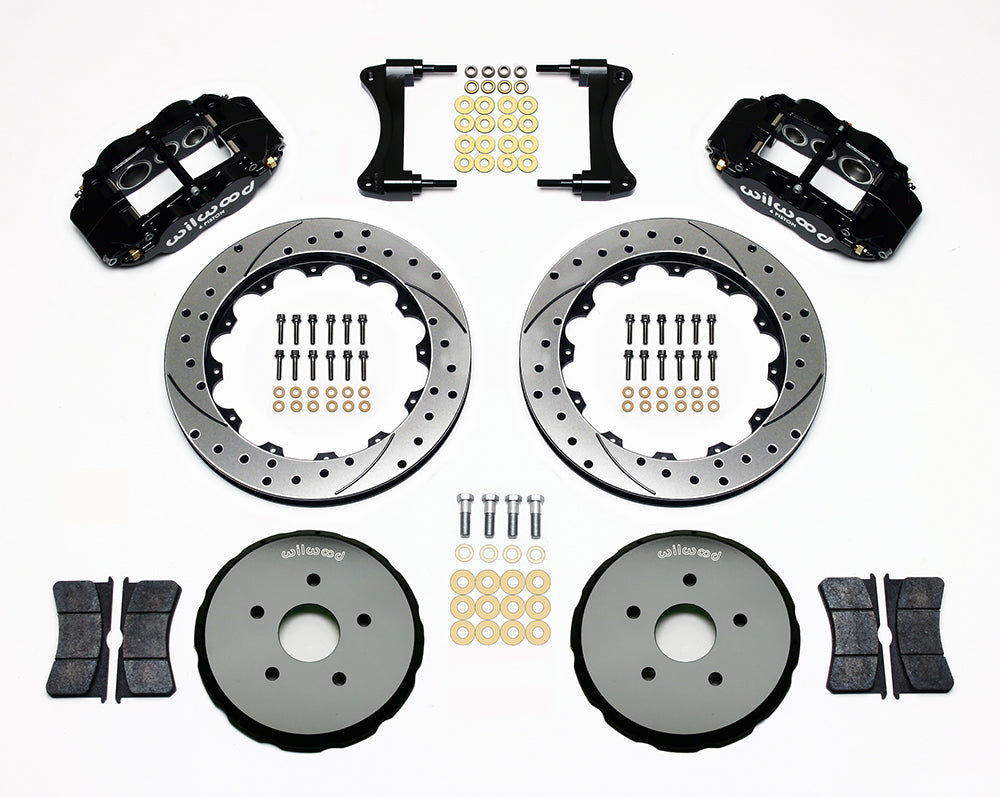

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Match the 2009–2011 Matrix row and the 5 × 4.50-inch wheel bolt pattern against DS647. The 1.8L and AWD versions should not be assumed compatible. Select suitable hydraulic lines separately and inspect the retained hub bearings and studs. Use the exact wheel template to check spoke depth and inner barrel clearance before assembly.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
