Wilwood Front Black Superlite GT Brake Kit for Toyota Matrix S/XRS FWD 2.4L (2009–2011), 12.88-Inch

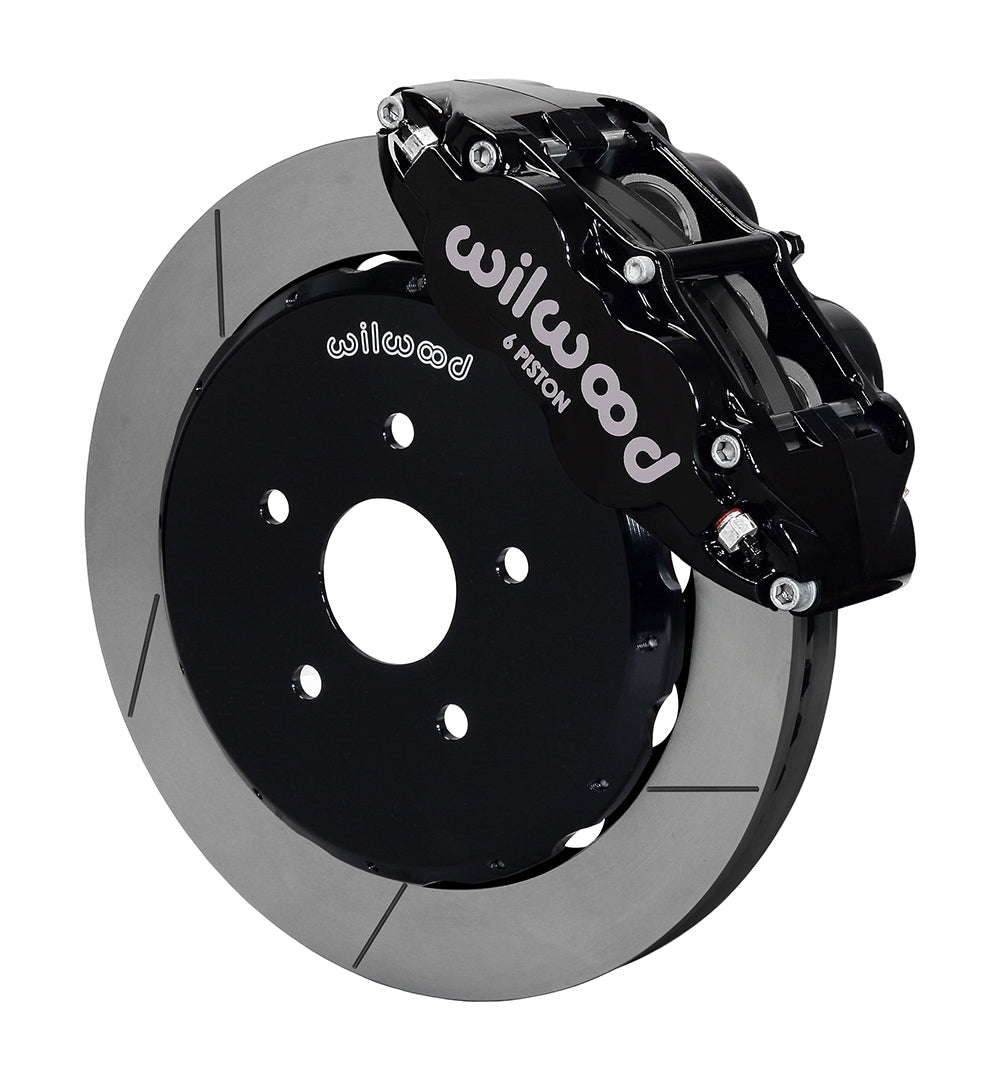

This Wilwood Matrix front conversion uses black Superlite six-piston calipers and 12.88-inch GT slotted rotors. Separate hats retain the specified original hub arrangement. The application is the front-wheel-drive 2.4L S/XRS package with a 5 × 4.50-inch bolt circle, rather than every Matrix engine and drivetrain combination. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10752
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 6R; 6 pistons; Black Powder Coat.
• Bores: 1.62, 1.12, 1.12 inches. Pads: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; GT Slotted, Spec-37 Iron, Black Electro Coat. 48 curved vanes.
• Wheel bolt circles: 5 x 4.50 inches.

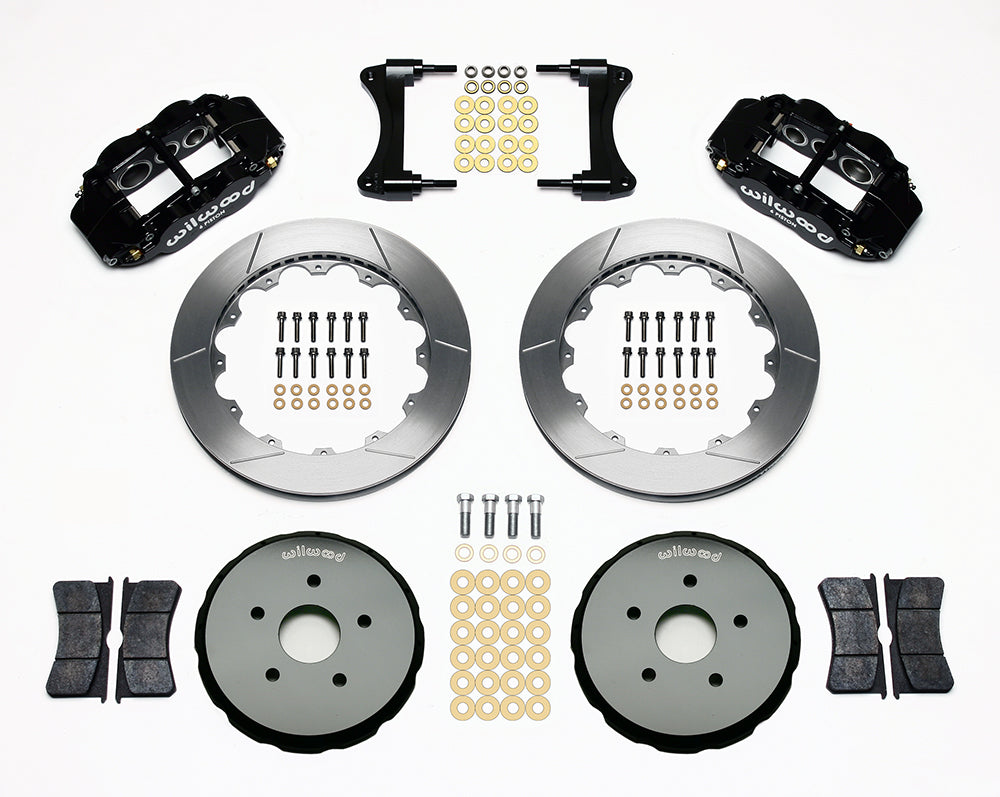

• Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 17 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

The selected vehicle is the FWD 2.4L Matrix S/XRS with the 5 × 4.50-inch wheel bolt circle. DS647 and the 2009–2011 table row establish that equipment combination; 2008 vehicle coverage must not be assumed. The existing hub stays with the car and must have sound bearings, studs and registration. Before changing brake components, compare its actual spindle with the drawing and confirm the wheel profile clears the six-piston package. Hydraulic hoses require separate selection for the installation.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
