Wilwood Front Plain Vented Rotor and Five-Lug Hub Conversion, Black Dynapro 6 Calipers, Mustang II/Pinto/Bobcat (1974–1980)

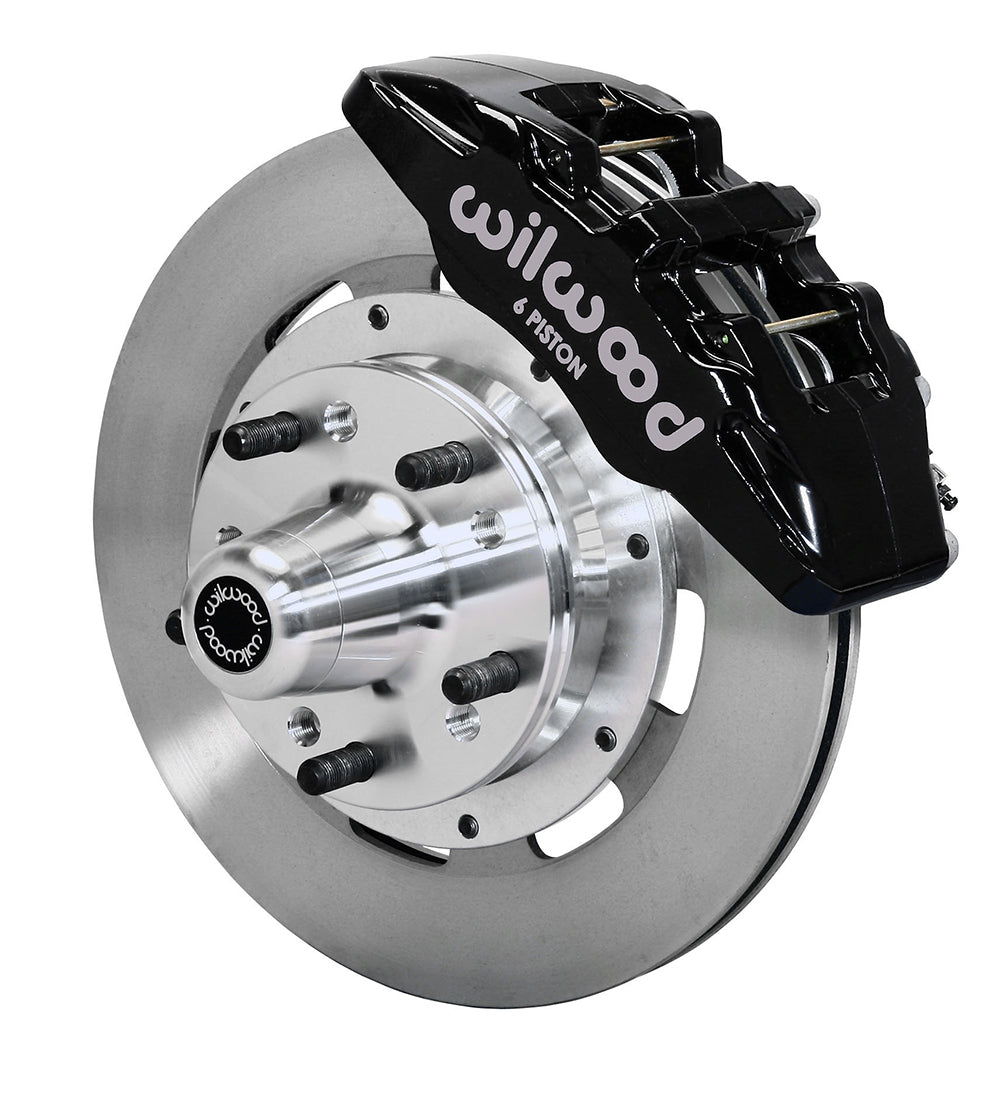

Black Dynapro six-piston calipers and plain 12.19-inch rotors form this Wilwood Ford/Mercury front conversion. Replacement hubs provide the supported five-lug wheel arrangement on the original disc spindle. This is the six-piston mounting package, distinct from the four-piston Dynalite version with a similar rotor diameter. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10742
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub)
• Calipers: Dynapro 6; 6 pistons; Black Powder Coat.
• Bores: 1.62, 1.38, 1.38 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
• Wheel mounting change from OE: .00 inches per side.
• Hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

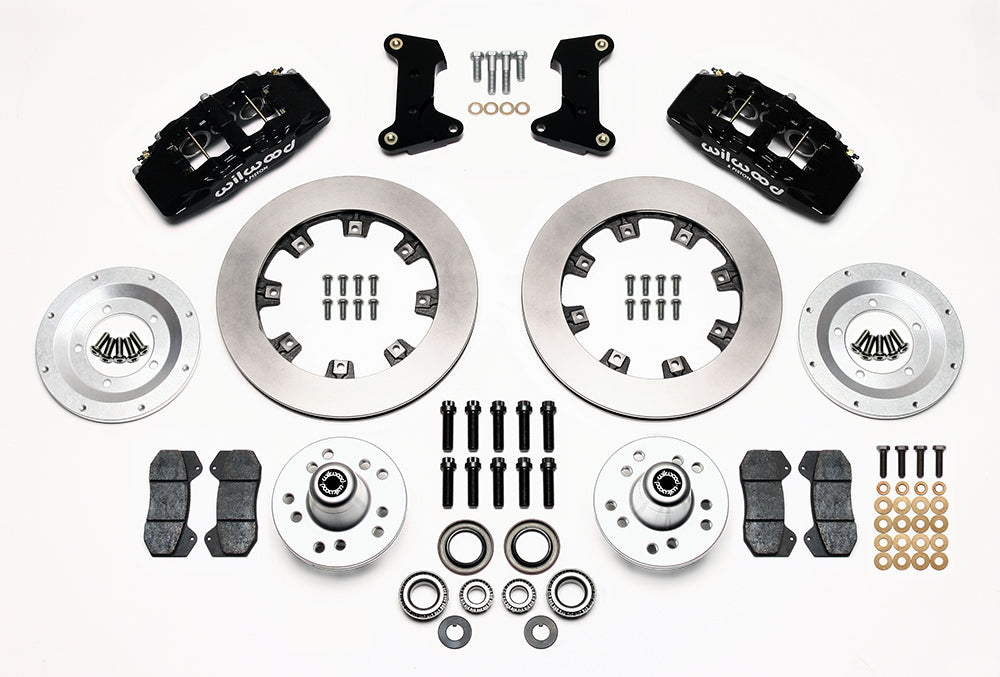

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Confirm the Mustang II, Pinto or Bobcat year row and the original disc-brake spindle against DS644. Drum spindles and four-lug wheel retention are excluded from this selected layout. Check bearings, wheel registration and the stated zero offset change. Choose hydraulic lines separately and verify the actual wheel's barrel and spoke clearance before evaluating pedal travel and brake balance.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
