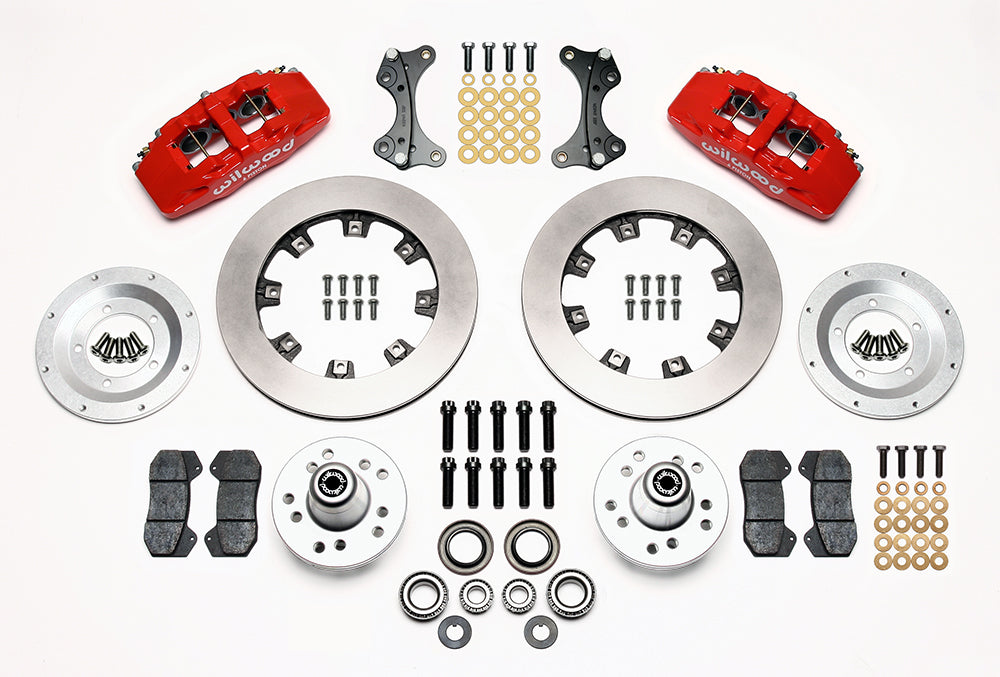

Wilwood front Dynapro 6 kit for ProSpindle Dynapro mounting: red calipers and 12.19-inch plain-face rotor pieces laid out

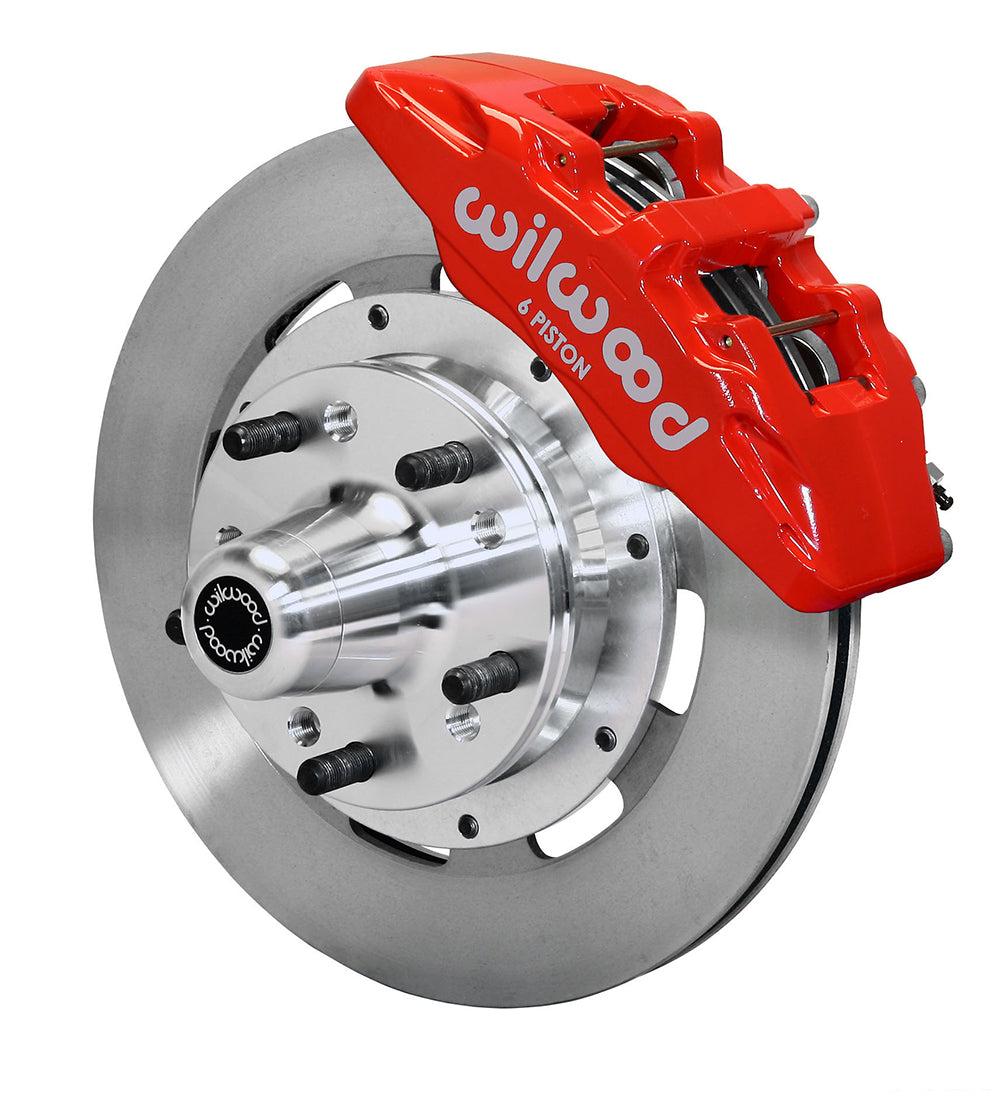

Wilwood front red Dynapro 6 caliper beside a 12.19-inch plain-face rotor, angled assembly for ProSpindle Dynapro mounting
Wilwood front Dynapro 6 kit for ProSpindle Dynapro mounting: red calipers and 12.19-inch plain-face rotor pieces laid out
Wilwood front red Dynapro 6 caliper beside a 12.19-inch plain-face rotor, angled assembly for ProSpindle Dynapro mounting

Wilwood Front Red Plain-Rotor Dynapro Hub Kit, 12.19-Inch, for Wilwood ProSpindles

SKU: 140-10741-R

$1,348.33 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Red Dynapro 6 calipers and plain vented rotors distinguish this Wilwood ProSpindle front conversion. The 12.19-inch friction rings mount on replacement hubs, with radial brackets for the selected spindle geometry. The brake package does not include the ProSpindle or establish a direct-fit factory vehicle application. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-10741-R
  • Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub)
  • Calipers: Dynapro 6; 6 pistons; Red Powder Coat.
  • Bores: 1.62, 1.38, 1.38 inches. Pads: BP-10.
  • Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
  • Wheel mounting change from OE: +.10 inches per side.
  • Hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
  • Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.
  • Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs.
  • Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
  • Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Compare bearing dimensions and mounting interfaces with DS643 before assembly. A correct existing ProSpindle can remain in place after inspection. Account for the +0.10-inch wheel mounting change and check the actual wheel's caliper clearance with the supplied drawing. Hydraulic lines must suit the chassis separately, with adequate movement at full steering lock and suspension travel.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
