Wilwood Front Red Dynapro 6 SRP Brake Kit for Wilwood ProSpindles, 12.19-Inch Rotors and Hubs

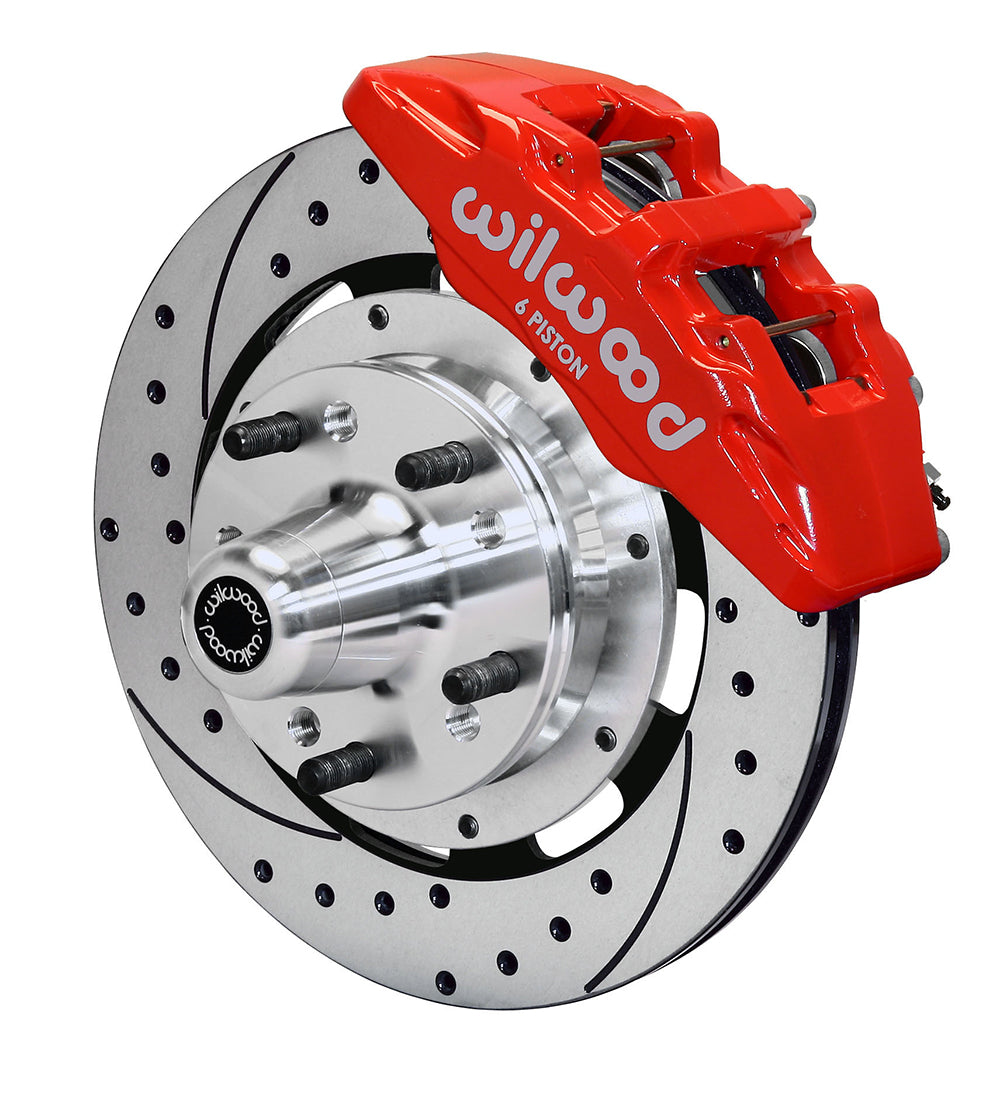

This red Wilwood ProSpindle package combines six-piston Dynapro calipers with drilled/slotted 12.19-inch rotors and replacement hubs. The brackets and bearing arrangement are selected for the Wilwood spindle interface. It is a brake/hub conversion for an existing or planned compatible suspension configuration. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10741-DR
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub)
• Calipers: Dynapro 6; 6 pistons; Red Powder Coat.
• Bores: 1.62, 1.38, 1.38 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 32 vanes.
• Wheel mounting change from OE: +.10 inches per side.
• Hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

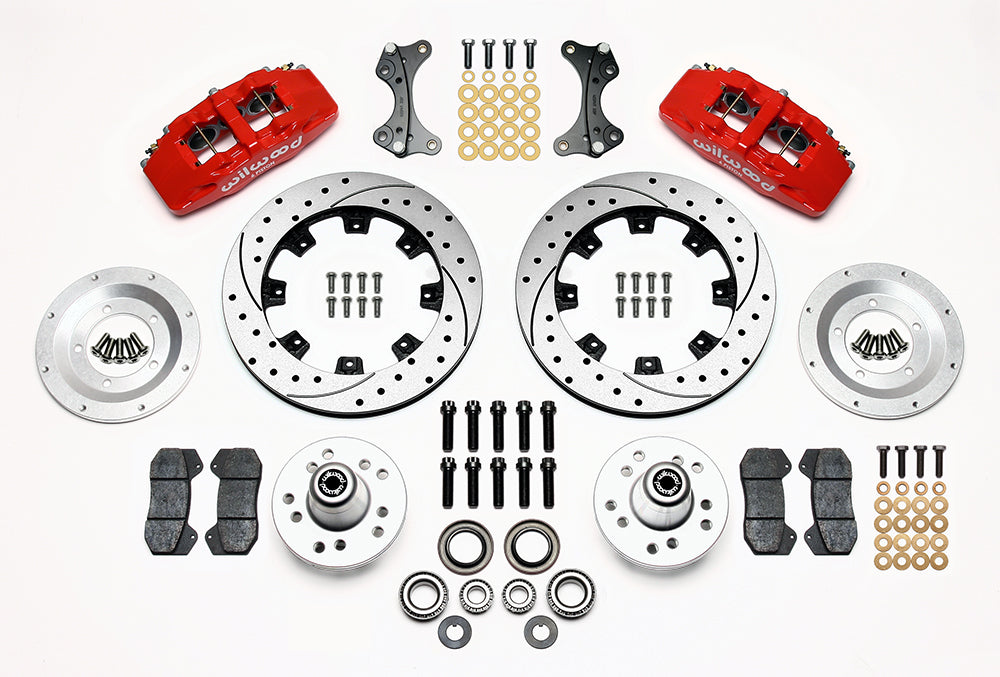

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the actual ProSpindle against DS643 rather than selecting the brakes solely from the vehicle year. The spindle is separate from the supplied brake package. Verify bearing fit, wheel registration and the +0.10-inch mounting-position change before wheel selection. Provide appropriate hoses and confirm the wheel template clears both the inner barrel and the spoke face behind the caliper.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
