Wilwood Front Plain-Rotor and Hub Conversion, Black Dynapro Six-Piston Calipers, Wilwood ProSpindle Mounting

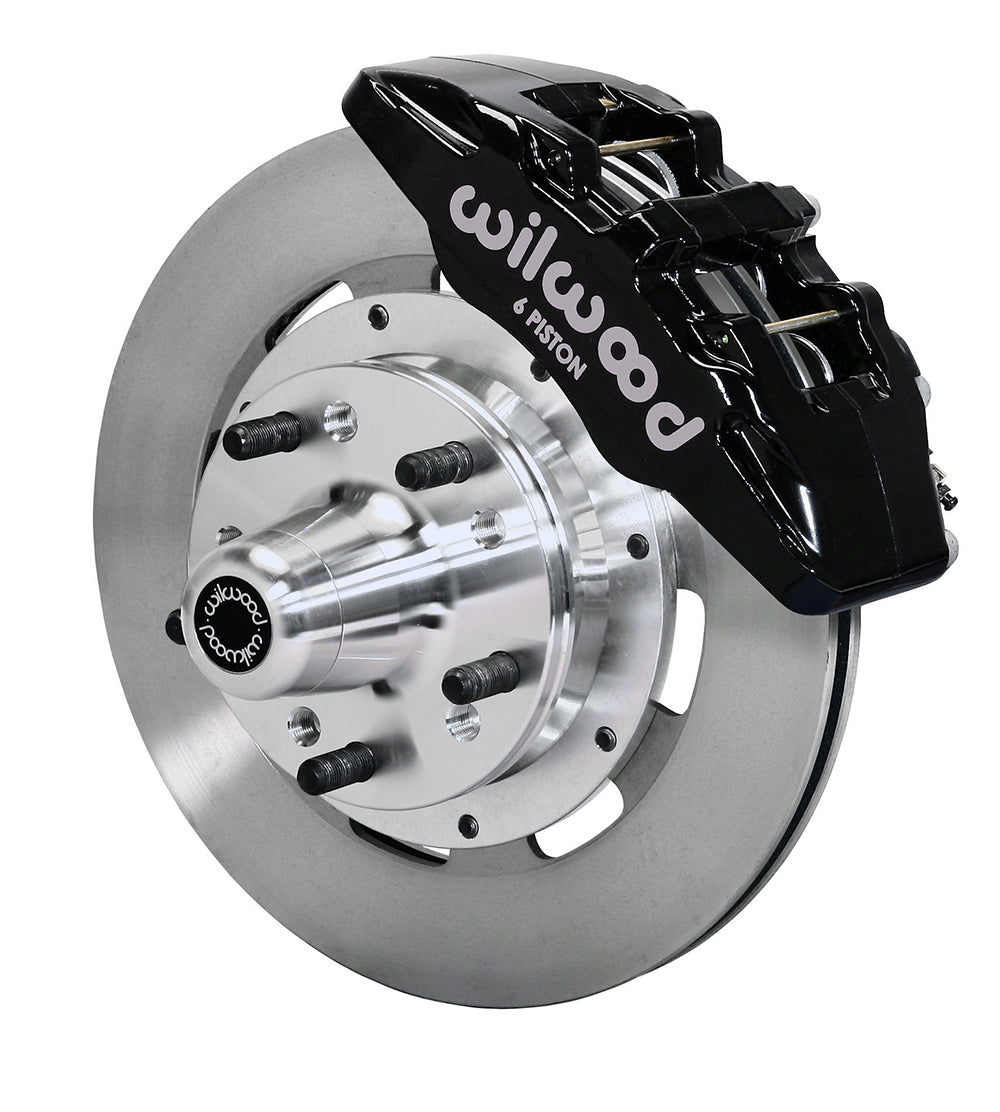

This Wilwood front hub package uses black Dynapro 6 calipers and plain 12.19-inch rotors for the Wilwood ProSpindle mounting arrangement. The replacement hubs carry the vented friction rings, with brackets positioning the six-piston calipers. Vehicle make alone cannot establish compatibility with this aftermarket spindle package. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10741
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub)
• Calipers: Dynapro 6; 6 pistons; Black Powder Coat.
• Bores: 1.62, 1.38, 1.38 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
• Wheel mounting change from OE: +.10 inches per side.
• Hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

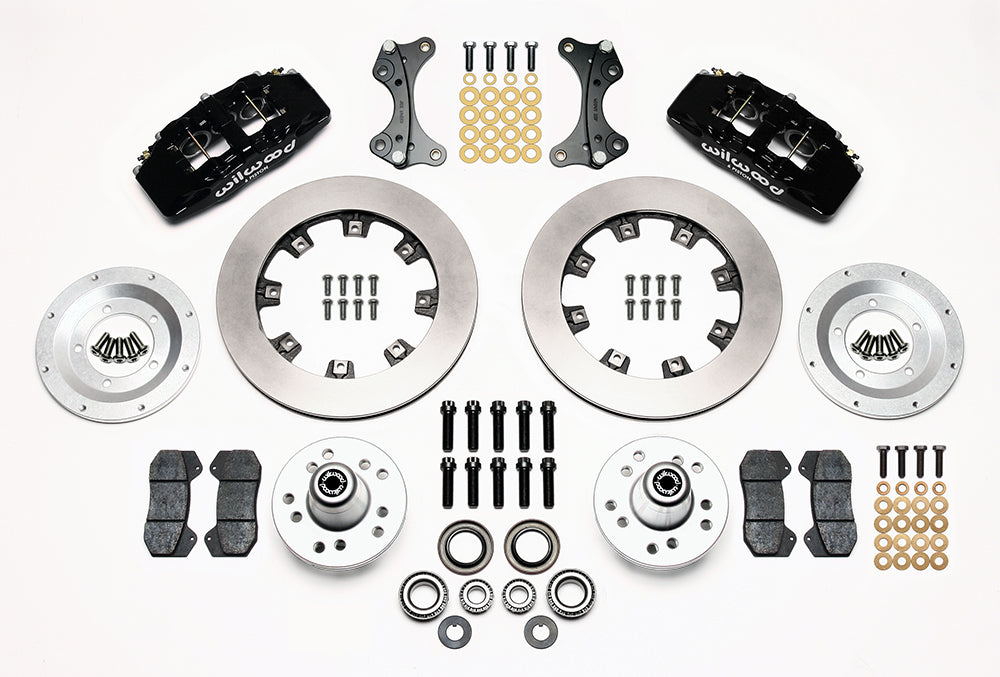

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Compare the actual ProSpindle with DS643 and verify its bearing and bracket interfaces before installation. The spindle itself is not included with the brake components. Check the +0.10-inch wheel mounting change relative to the published reference, then confirm tire position and actual wheel-profile clearance. Select hydraulic lines for the chassis separately and inspect rotor centering before testing the completed system.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
