Wilwood Front Red Plain-Rotor Hub Conversion for Dodge/Plymouth B/E Drum Spindles (1962–1972), Dynapro 6

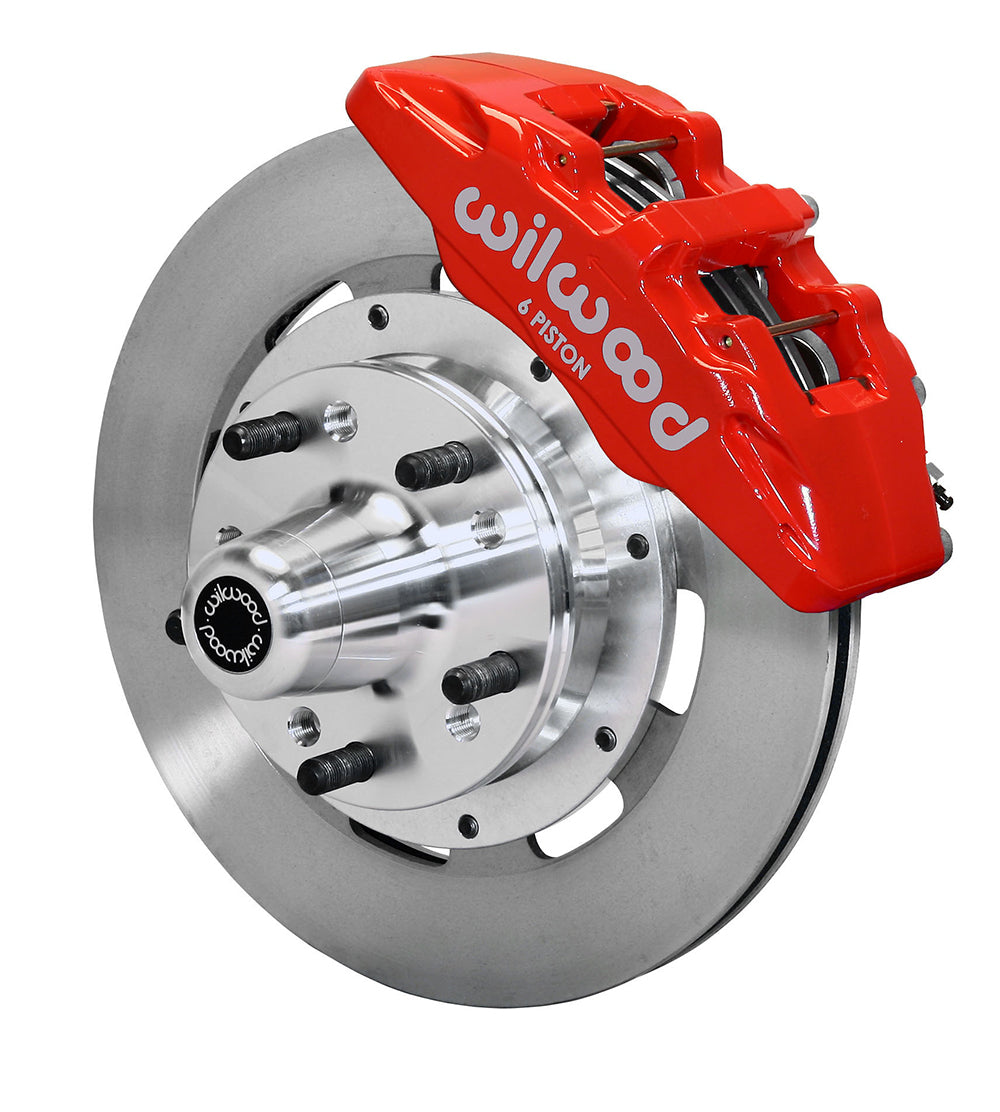

Plain 12.19-inch vented rotors and red six-piston Dynapro calipers form this Wilwood Mopar front hub kit. It adapts the specified B/E-body drum-spindle arrangement using replacement hubs and mounting brackets. The selected geometry shifts wheel mounting +0.17 inches from the stated OE reference. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10740-R
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub)
• Calipers: Dynapro 6; 6 pistons; Red Powder Coat.
• Bores: 1.62, 1.38, 1.38 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
• Wheel mounting change from OE: +.17 inches per side.
• Hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

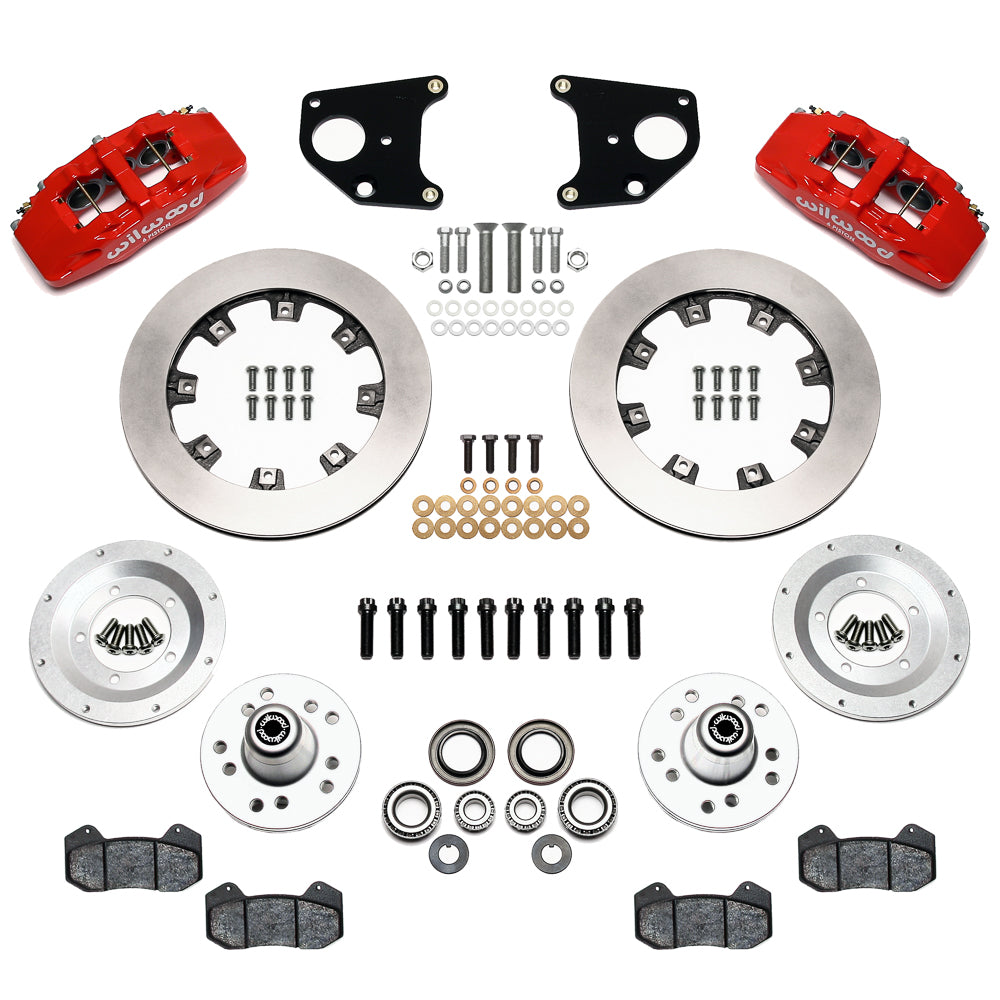

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the exact Dodge/Plymouth model row and spindle against DS642, with attention to the B/E-body production years. A two-bolt master cylinder installed in place of the four-bolt original needs the separately sourced mounting adapter. This is conditional on that hydraulic conversion, not an instruction to replace a compatible cylinder. Provide hoses and verify wheel radius, spoke depth and tire position before assembly.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
