Wilwood Front Red Plain-Rotor Dynapro Hub Kit, Early Ford Drum-Spindle Cars/Trucks (1937–1948), 12.19-Inch

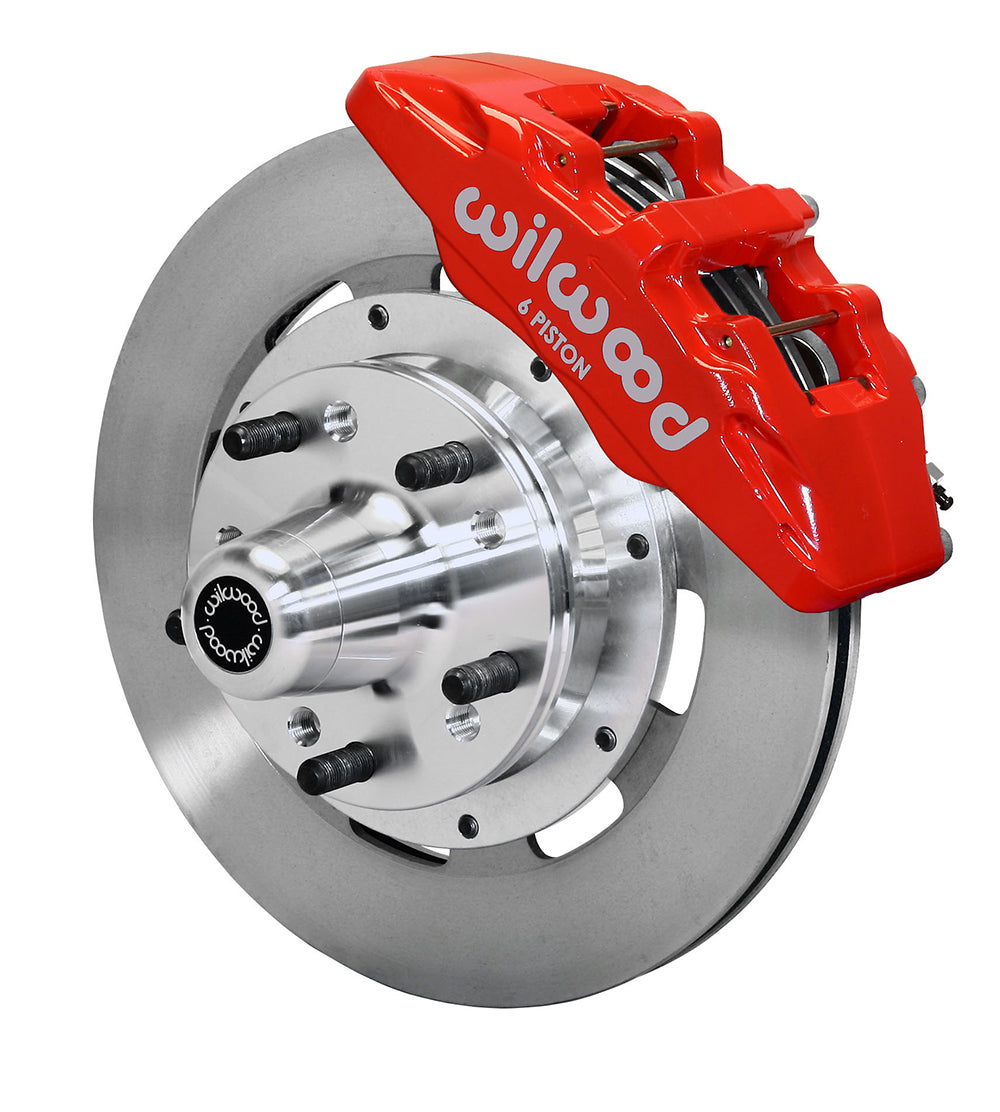

Red six-piston Dynapro calipers and plain 12.19-inch rotors form this Wilwood early-Ford front conversion. The package supplies replacement hubs for the specified original drum-spindle geometry. It does not establish compatibility with every aftermarket axle simply because that axle is installed in an early Ford body. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10739-R
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub)
• Calipers: Dynapro 6; 6 pistons; Red Powder Coat.
• Bores: 1.62, 1.38, 1.38 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
• Hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

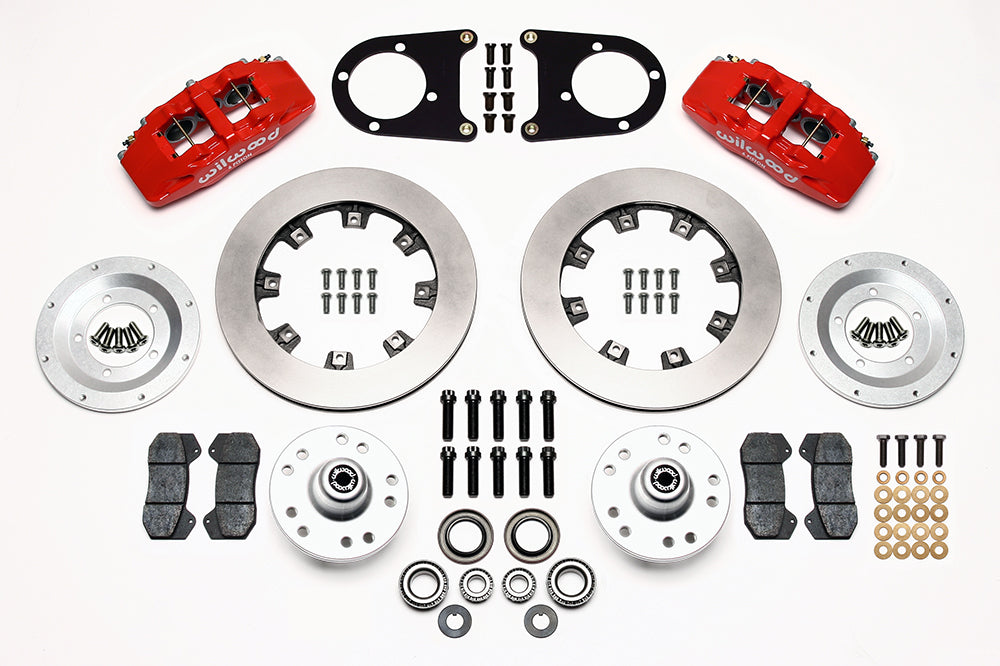

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Match the exact model/year and body-style entry, then inspect the spindle and bearing fit against DS641. Confirm wheel-stud pattern and hub registration before installation. Choose suitable hydraulic hoses and evaluate the existing master-cylinder/pedal pushrod arrangement. Check radial and axial clearance with the wheel drawing, and verify rotor centering before the brake test.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
