Wilwood Front Red Dynapro 6 SRP Hub Conversion for GM 11-Inch Rotor Spindles (1970–1978), 12.19-Inch

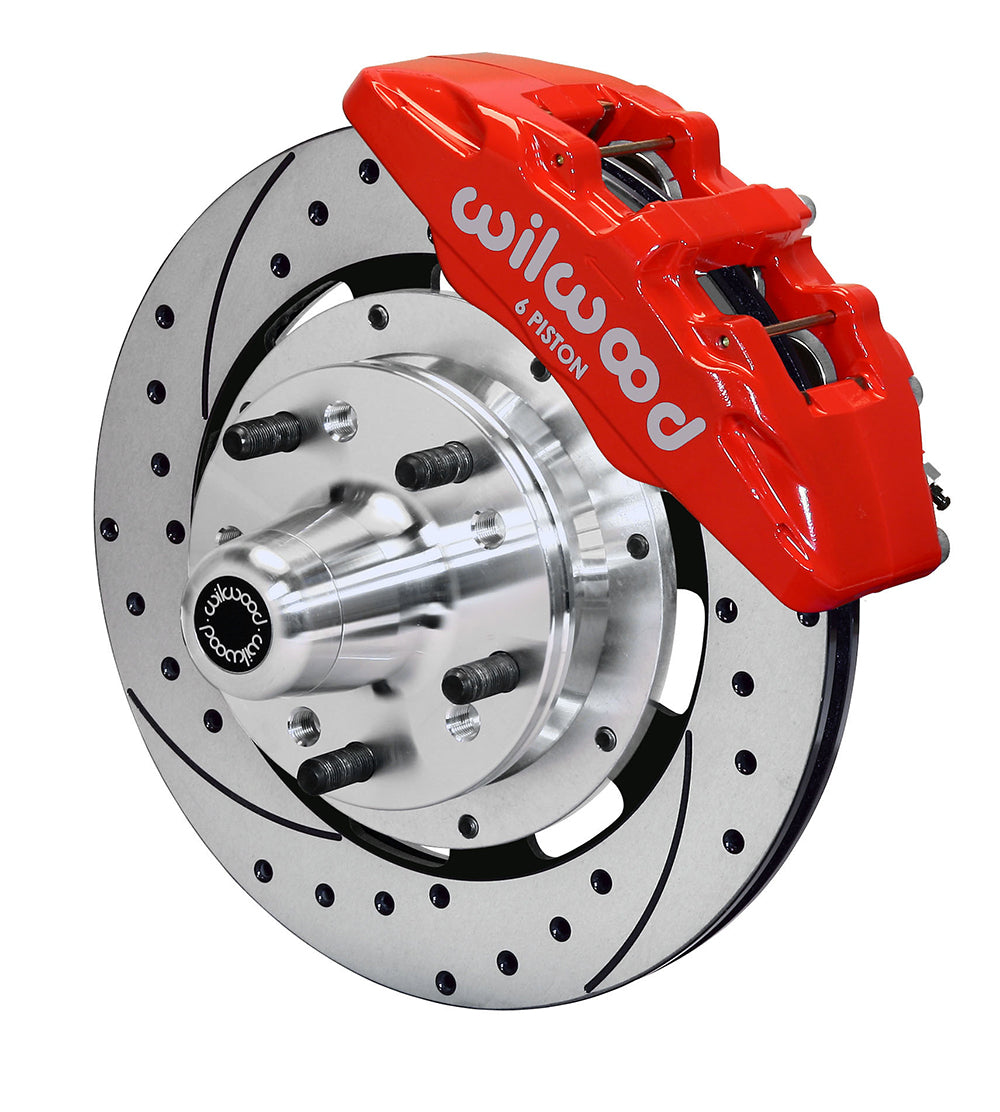

Red six-piston Dynapro calipers and drilled/slotted rotors distinguish this Wilwood GM front package. The 12.19-inch vented rings mount on replacement hubs for the specified factory disc-spindle layout. Wheel mounting moves -0.28 inches relative to the original reference, affecting tire clearance independently of the rotor diameter. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10738-DR
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub)
• Calipers: Dynapro 6; 6 pistons; Red Powder Coat.
• Bores: 1.62, 1.38, 1.38 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 32 vanes.
• Wheel mounting change from OE: -.28 inches per side.
• Hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

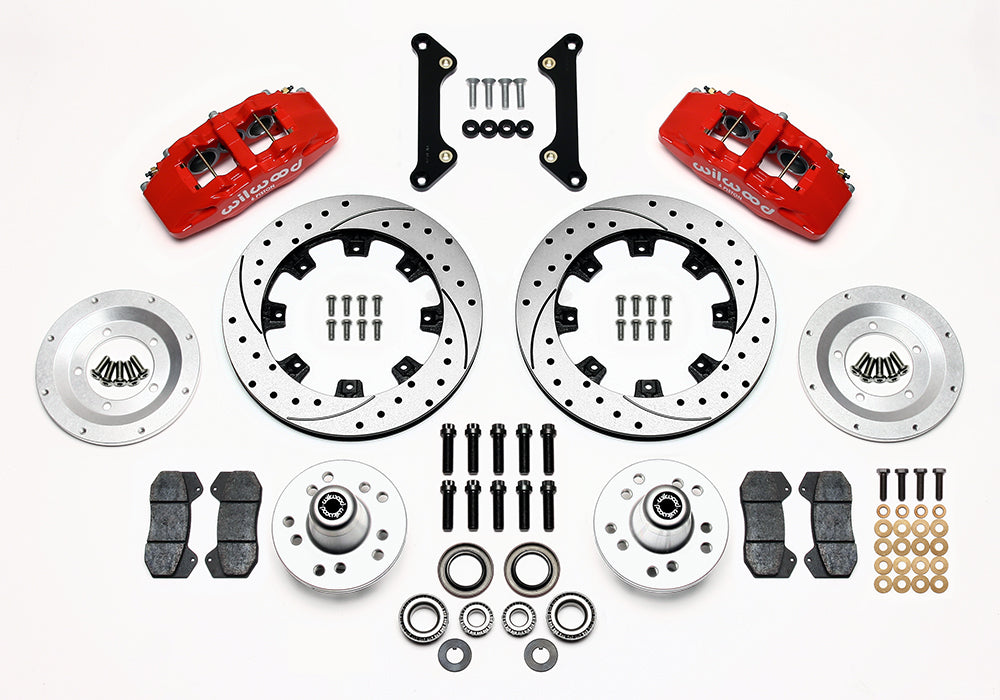

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Match the exact application and the spindle originally carrying an 11-inch rotor. DS640 describes the spindle preparation and bracket alignment needed for the conversion. Check wheel studs and hub registration, provide hydraulic hoses separately and verify both caliper-to-spoke clearance and the tire's position inside the wheel well before assembly.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
