Wilwood Front Black 12.19-Inch SRP Dynapro Kit, GM Passenger-Car Disc Spindles (1970–1978), Replacement Hubs

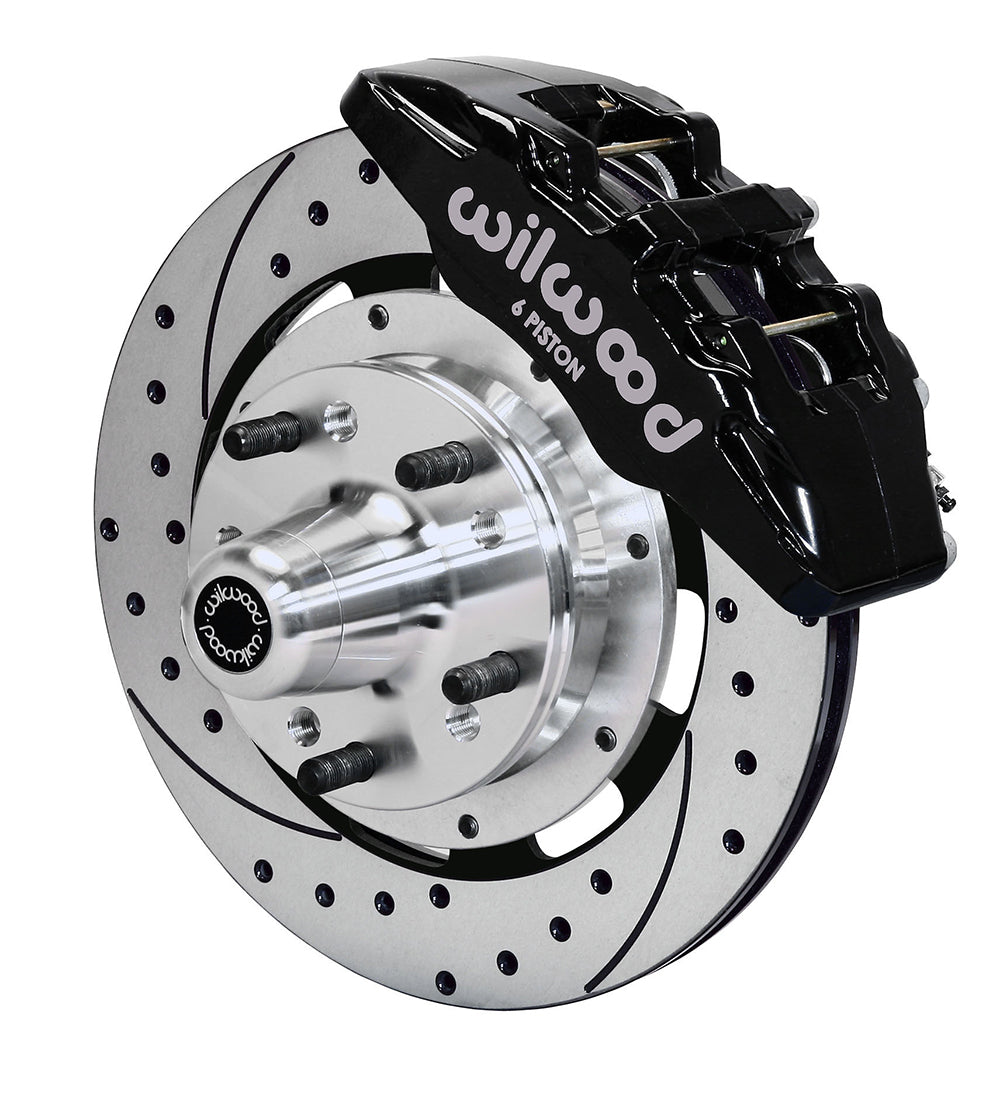

This Wilwood front conversion uses black Dynapro 6 calipers over drilled/slotted 12.19-inch rotors. The replacement hubs and brackets are configured for the original GM 11-inch-rotor disc spindle. Its -0.28-inch wheel mounting change is separate from the space required by the new six-piston brake assembly. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10738-D
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub)
• Calipers: Dynapro 6; 6 pistons; Black Powder Coat.
• Bores: 1.62, 1.38, 1.38 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 32 vanes.
• Wheel mounting change from OE: -.28 inches per side.
• Hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

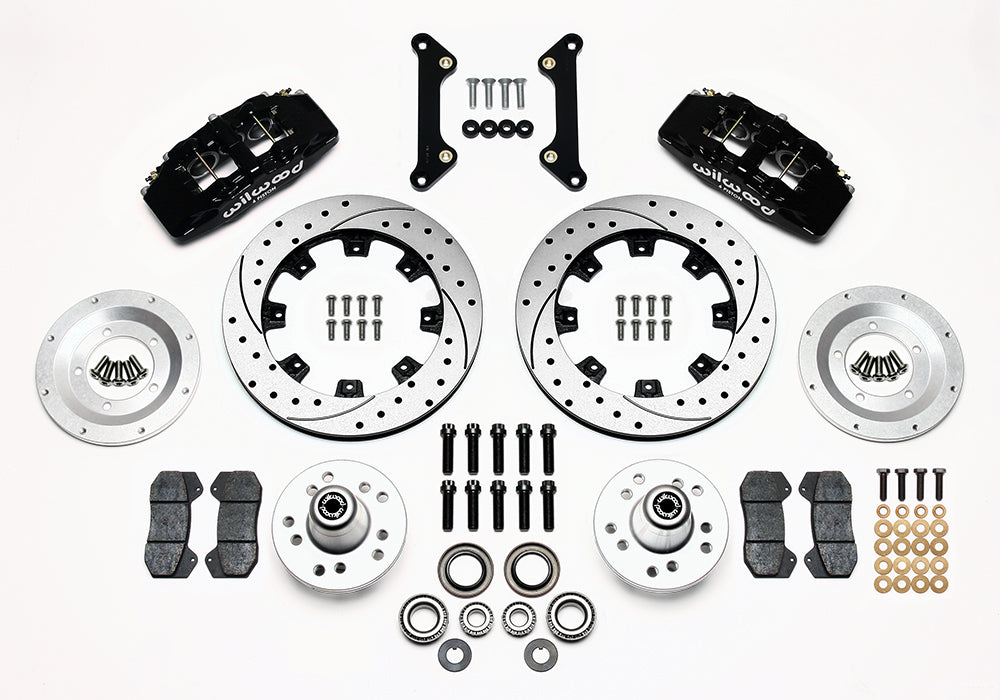

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Verify the model/year and actual spindle against DS640, including the required spindle modifications. Confirm bearing fit, stud pattern and wheel registration before final tightening. Select hydraulic lines for the car separately. Compare the intended wheel's inner barrel and spoke depth with the template, then check tire position for the hub-offset change.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
