Wilwood Front Plain-Rotor Brake and Hub Conversion for Chevrolet Bel Air/Nomad/One-Fifty Series/Two-Ten Series/Sedan Delivery/Del Ray (1955–1957 Drum Spindles), Black Dynapro 6

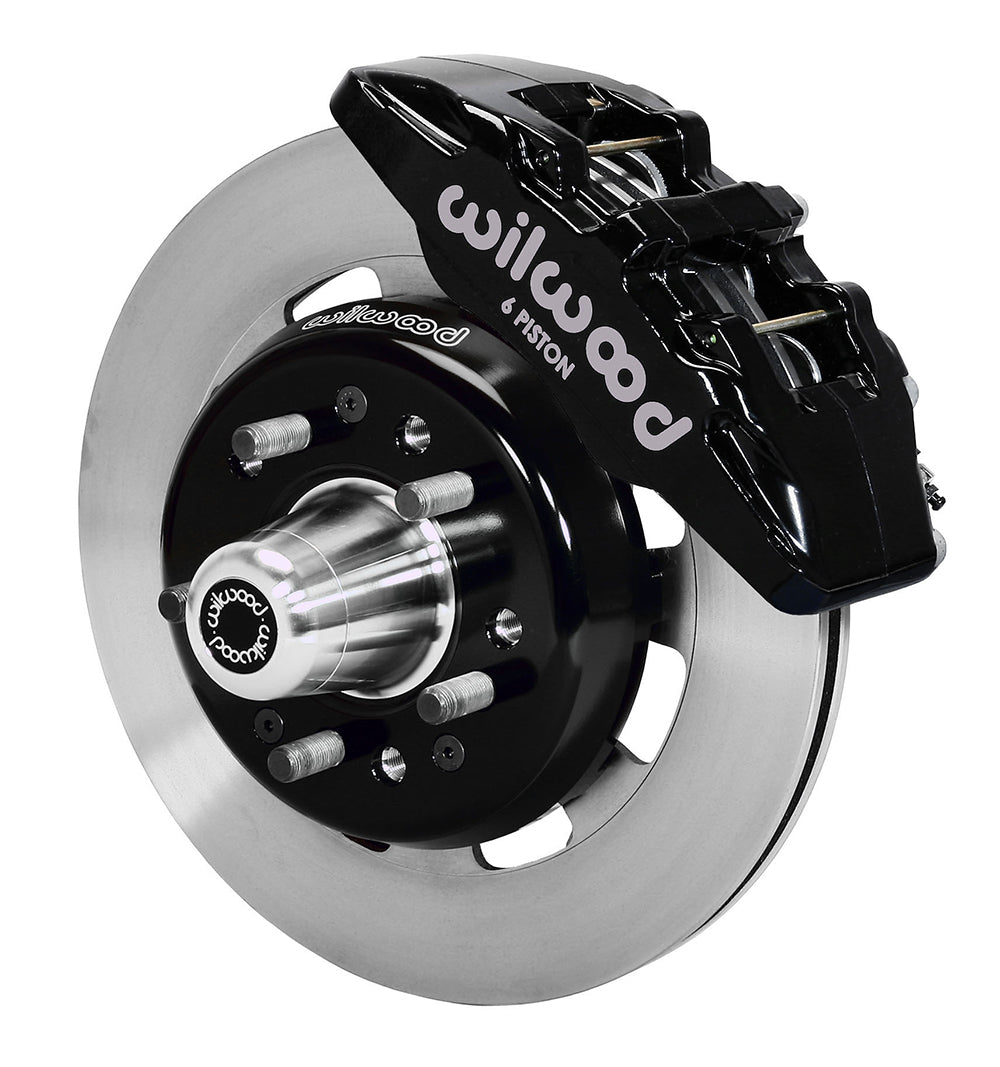

Wilwood's black Dynapro 6 hub conversion uses plain 12.19-inch vented rotors on the specified 1955–1957 Chevrolet drum spindle. Replacement aluminum hubs and separate hats carry the friction rings. The six-piston calipers are a hydraulic disc conversion for the original spindle arrangement, not a claim for later steering knuckles. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-10737
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub)
• Calipers: Dynapro 6; 6 pistons; Black Powder Coat.
• Bores: 1.62, 1.38, 1.38 inches. Pads: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
• Wheel mounting change from OE: +.23 inches per side.
• Hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

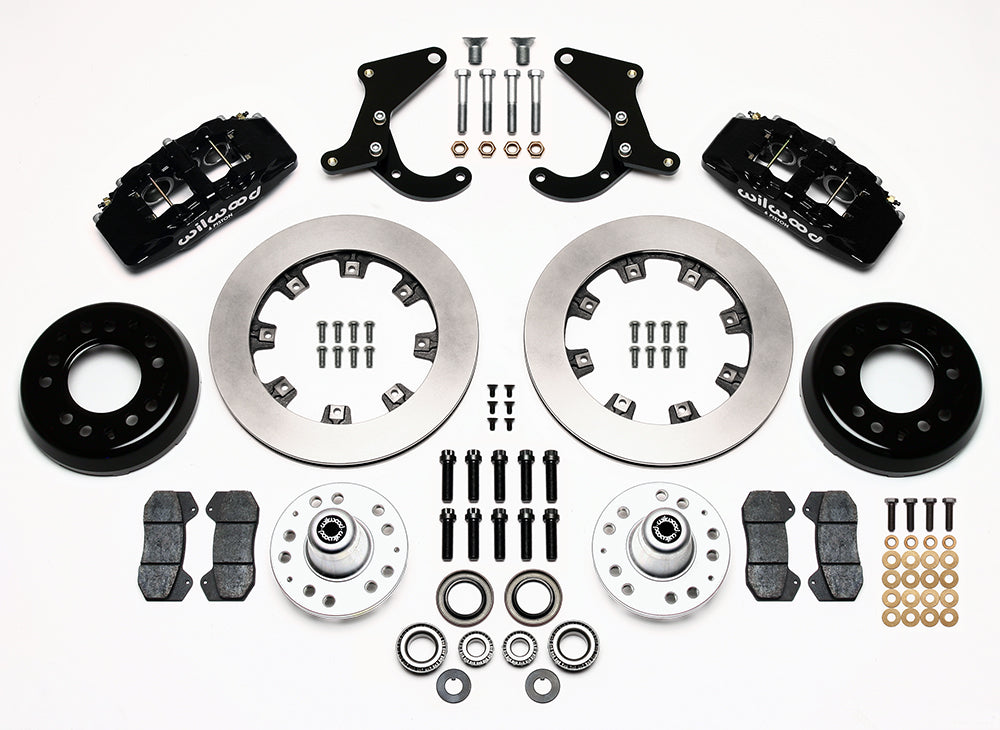

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs, rotor hats.
• Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
• Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Confirm the individual Chevrolet model and year row and inspect the original drum spindle against DS639. The replacement hubs change the wheel mounting position +0.23 inches from the stated reference. Check the bolt circle, register and tire/fender clearance before choosing wheels. Hydraulic hoses are separate, and the complete wheel template must be checked around the caliper and behind the spokes.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
