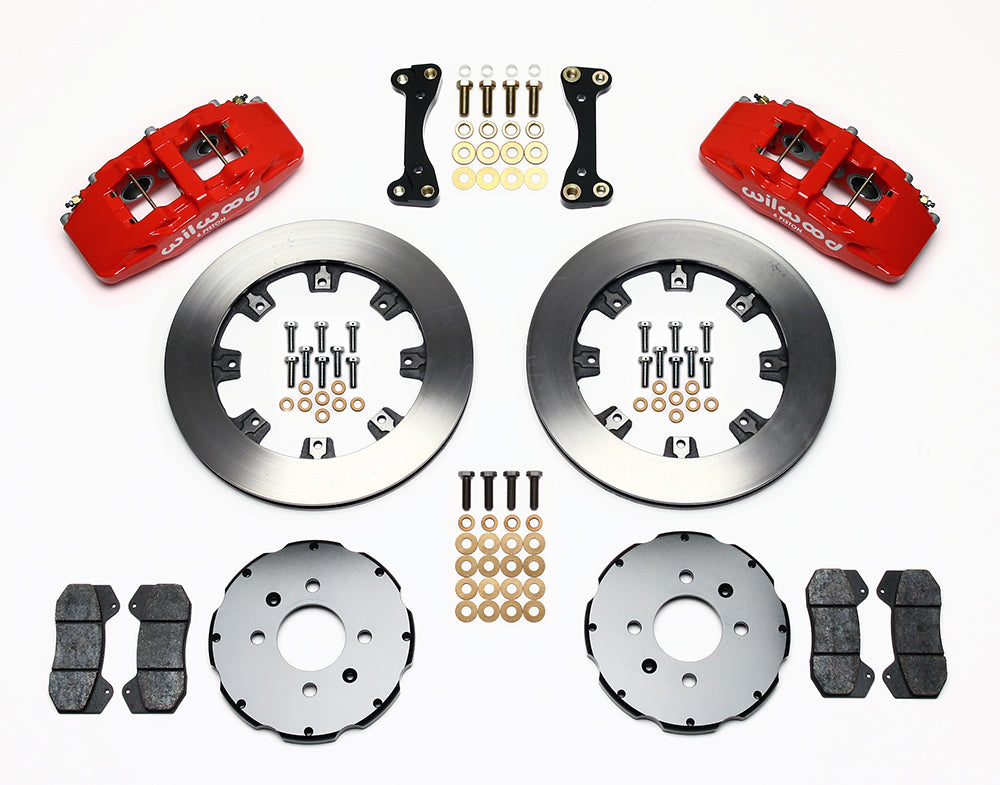

Wilwood front Dynapro 6 kit for Honda 240 mm factory spindle: red calipers and 12.19-inch plain-face rotor pieces laid out

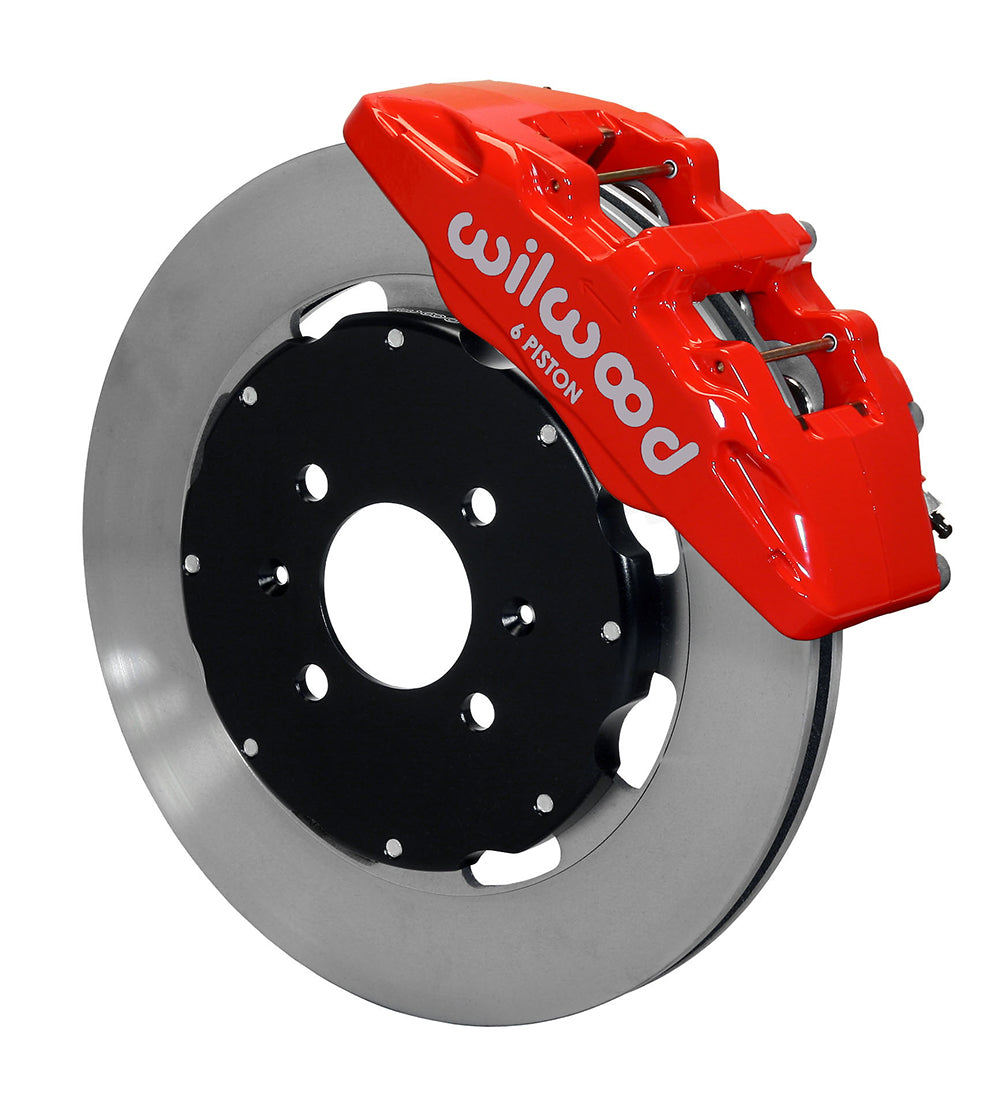

Wilwood front red Dynapro 6 caliper beside a 12.19-inch plain-face rotor, angled assembly for Honda 240 mm factory spindle
Wilwood front Dynapro 6 kit for Honda 240 mm factory spindle: red calipers and 12.19-inch plain-face rotor pieces laid out
Wilwood front red Dynapro 6 caliper beside a 12.19-inch plain-face rotor, angled assembly for Honda 240 mm factory spindle

Wilwood Front Plain Vented Rotor Package with Red Six-Piston Calipers, Civic/CRX/Civic del Sol (1988–2000), Factory 240 mm Spindle

SKU: 140-10736-R

$1,131.65 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This red-caliper Wilwood front conversion uses plain 12.19-inch vented rotors and six-piston Dynapro units. The hat and bracket dimensions correspond to the original 240 mm Honda disc-spindle arrangement with four-lug hubs. It is not interchangeable with the 262 mm spindle kit despite the common Wilwood rotor size. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-10736-R
  • Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hat)
  • Calipers: Dynapro 6; 6 pistons; Red Powder Coat.
  • Bores: 1.38, 1.00, 1.00 inches. Pads: BP-10.
  • Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
  • Wheel bolt circles: 4 x 3.93 inches.
  • Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
  • Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
  • Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Match the individual Civic, CRX or Civic del Sol application and inspect the actual spindle where trim or ABS equipment differs. DS638 shows the required mounting geometry and wheel envelope. Select hydraulic lines separately, verify the rotor sits squarely on the hub and check that the wheel clears the caliper in both radius and axial depth.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1988 Honda Civic Sedan w/ AT Disc Drum Front Kit 1, 2, 3, 4
1988 Honda Civic Sedan w/ MT Disc Drum Front Kit 1, 2, 3, 4
1988-1991 Honda Civic Base HB Base Disc Drum Front Kit 1, 2, 3, 4
1988-1989 Honda CRX DX & SI Disc Drum Front Kit 1, 2, 3, 4
1988-1991 Honda CRX HF HF Disc Drum Front Kit 1, 2, 3, 4
1989-1991 Honda Civic HB DX Disc Drum Front Kit 1, 2, 3, 4
1989-1991 Honda Civic Sedan DX / LX Models Disc Drum Front Kit 1, 2, 3, 4
1989-1991 Honda Civic Si HB SI Disc Drum Front Kit 1, 2, 3, 4
1990-1991 Honda CRX DX Disc Drum Front Kit 1, 2, 3, 4
1990-1991 Honda CRX Si SI Disc Disc Front Kit 1, 2, 3, 4
1992-1995 Honda Civic HB Auto Excludes SI Model Disc Drum Front Kit 1, 2, 3, 4
1992-1995 Honda Civic HB Manual Excludes SI Model Disc Drum Front Kit 1, 2, 3, 4
1992-1993 Honda Civic Sedan DX / LX Models w/ AT Disc Drum Front Kit 1, 2, 3, 4
1992-1993 Honda Civic Sedan DX / LX Models w/ MT Disc Drum Front Kit 1, 2, 3, 4
1992-1993 Honda Civic Si HB SI Disc Disc Front Kit 1, 2, 3, 4
1993-1995 Honda Civic Coupe DX w/ Auto Disc Drum Front Kit 1, 2, 3, 4
1993-1995 Honda Civic Coupe DX w/ Manual Disc Drum Front Kit 1, 2, 3, 4
1993 Honda Civic del Sol w/ Rear Disc Disc Disc Front Kit 1, 2, 3, 4
1993 Honda Civic del Sol w/ Rear Drum Disc Drum Front Kit 1, 2, 3, 4
1994-1995 Honda Civic HB SI w/ out ABS Disc Disc Front Kit 1, 2, 3, 4
1994-1995 Honda Civic Sedan DX w/ MT Disc Drum Front Kit 1, 2, 3, 4
1994 Honda Civic Sedan DX Models w/ AT Disc Drum Front Kit 1, 2, 3, 4
1994-1995 Honda Civic Sedan LX w/ AT w/ out ABS Disc Drum Front Kit 1, 2, 3, 4
1994-1995 Honda Civic Sedan LX w/ MT w/ out ABS Disc Drum Front Kit 1, 2, 3, 4
1994-1997 Honda Civic del Sol W/ Rear Drum Disc Drum Front Kit 1, 2, 3, 4
1995 Honda Civic Sedan DX w/ AT Disc Drum Front Kit 1, 2, 3, 4
1995-1997 Honda Civic del Sol W/ Rear Disc S Disc Disc Front Kit 1, 2, 3, 4
1996-2000 Honda Civic Coupe DX / HX Models Disc Drum Front Kit 1, 2, 3, 4
1996-2000 Honda Civic HB Disc Drum Front Kit 1, 2, 3, 4
1996, 1998 Honda Civic Sedan w/ out ABS Disc Drum Front Kit 1, 2, 3, 4
1996 Honda Civic EX Coupe EX w/out ABS Disc Drum Front Kit 1, 2, 3, 4
1997 Honda Civic Sedan Excludes EX Disc Drum Front Kit 1, 2, 3, 4
1998-1999 Honda Civic GX Sedan GX Disc Drum Front Kit 1, 2, 3, 4
1999-2000 Honda Civic Sedan Disc Drum Front Kit 1, 2, 3, 4
