Product details

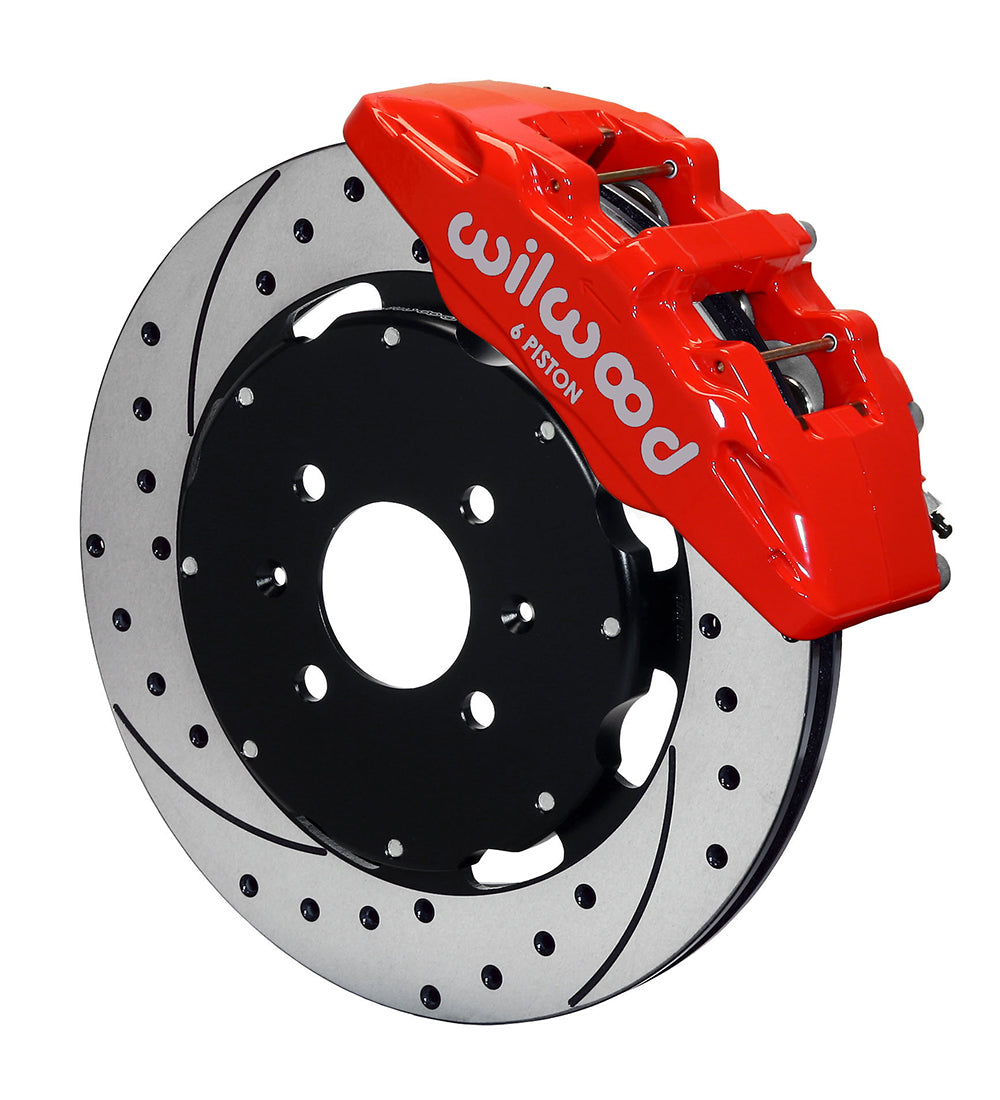

Red Dynapro 6 calipers and drilled/slotted rotors make up this Wilwood Honda front package. Its 12.19-inch friction rings mount to hats on the existing four-lug hub, with brackets for the spindle originally used with 240 mm discs. The smaller original spindle remains the selection criterion after the rotor size is increased. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 140-10736-DR
- Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hat)
- Calipers: Dynapro 6; 6 pistons; Red Powder Coat.
- Bores: 1.38, 1.00, 1.00 inches. Pads: BP-10.
- Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted, Iron, Black Electro Coat. 32 vanes.
- Wheel bolt circles: 4 x 3.93 inches.

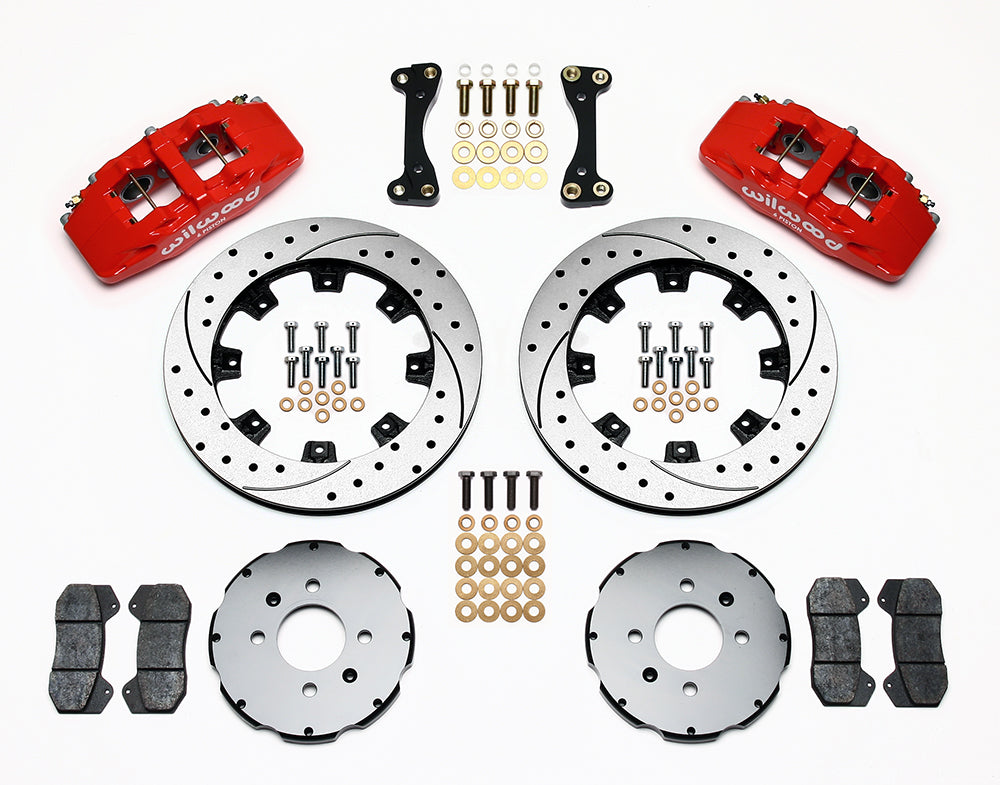

- Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
- Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
- Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.
Fitment & Compatibility
Check the exact Civic, CRX or Civic del Sol row, including gearbox, ABS and body-style conditions. A 262 mm factory disc spindle requires the other mounting package. Compare the installed hardware with DS638, provide appropriate hydraulic hoses and use the wheel template to check spoke depth and barrel clearance before final tightening.
Match the individual model, year, submodel and brake configuration in the fitment table below.
PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.
California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 1988 | Honda | Civic | Sedan w/ AT | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1988 | Honda | Civic | Sedan w/ MT | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1988-1991 | Honda | Civic | Base | HB Base | Disc | Drum | Front Kit | 1, 2, 3, 4 |
| 1988-1989 | Honda | CRX | DX & SI | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1988-1991 | Honda | CRX | HF | HF | Disc | Drum | Front Kit | 1, 2, 3, 4 |
| 1989-1991 | Honda | Civic | HB DX | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1989-1991 | Honda | Civic | Sedan DX / LX Models | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1989-1991 | Honda | Civic | Si | HB SI | Disc | Drum | Front Kit | 1, 2, 3, 4 |
| 1990-1991 | Honda | CRX | DX | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1990-1991 | Honda | CRX | Si | SI | Disc | Disc | Front Kit | 1, 2, 3, 4 |
| 1992-1995 | Honda | Civic | HB Auto Excludes SI Model | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1992-1995 | Honda | Civic | HB Manual Excludes SI Model | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1992-1993 | Honda | Civic | Sedan DX / LX Models w/ AT | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1992-1993 | Honda | Civic | Sedan DX / LX Models w/ MT | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1992-1993 | Honda | Civic | Si | HB SI | Disc | Disc | Front Kit | 1, 2, 3, 4 |
| 1993-1995 | Honda | Civic | Coupe DX w/ Auto | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1993-1995 | Honda | Civic | Coupe DX w/ Manual | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1993 | Honda | Civic del Sol | w/ Rear Disc | Disc | Disc | Front Kit | 1, 2, 3, 4 | |
| 1993 | Honda | Civic del Sol | w/ Rear Drum | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1994-1995 | Honda | Civic | HB SI w/ out ABS | Disc | Disc | Front Kit | 1, 2, 3, 4 | |
| 1994-1995 | Honda | Civic | Sedan DX w/ MT | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1994 | Honda | Civic | Sedan DX Models w/ AT | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1994-1995 | Honda | Civic | Sedan LX w/ AT w/ out ABS | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1994-1995 | Honda | Civic | Sedan LX w/ MT w/ out ABS | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1994-1997 | Honda | Civic del Sol | W/ Rear Drum | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1995 | Honda | Civic | Sedan DX w/ AT | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1995-1997 | Honda | Civic del Sol | W/ Rear Disc S | Disc | Disc | Front Kit | 1, 2, 3, 4 | |
| 1996-2000 | Honda | Civic | Coupe DX / HX Models | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1996-2000 | Honda | Civic | HB | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1996, 1998 | Honda | Civic | Sedan w/ out ABS | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1996 | Honda | Civic | EX | Coupe EX w/out ABS | Disc | Drum | Front Kit | 1, 2, 3, 4 |
| 1997 | Honda | Civic | Sedan Excludes EX | Disc | Drum | Front Kit | 1, 2, 3, 4 | |
| 1998-1999 | Honda | Civic | GX | Sedan GX | Disc | Drum | Front Kit | 1, 2, 3, 4 |
| 1999-2000 | Honda | Civic | Sedan | Disc | Drum | Front Kit | 1, 2, 3, 4 |
