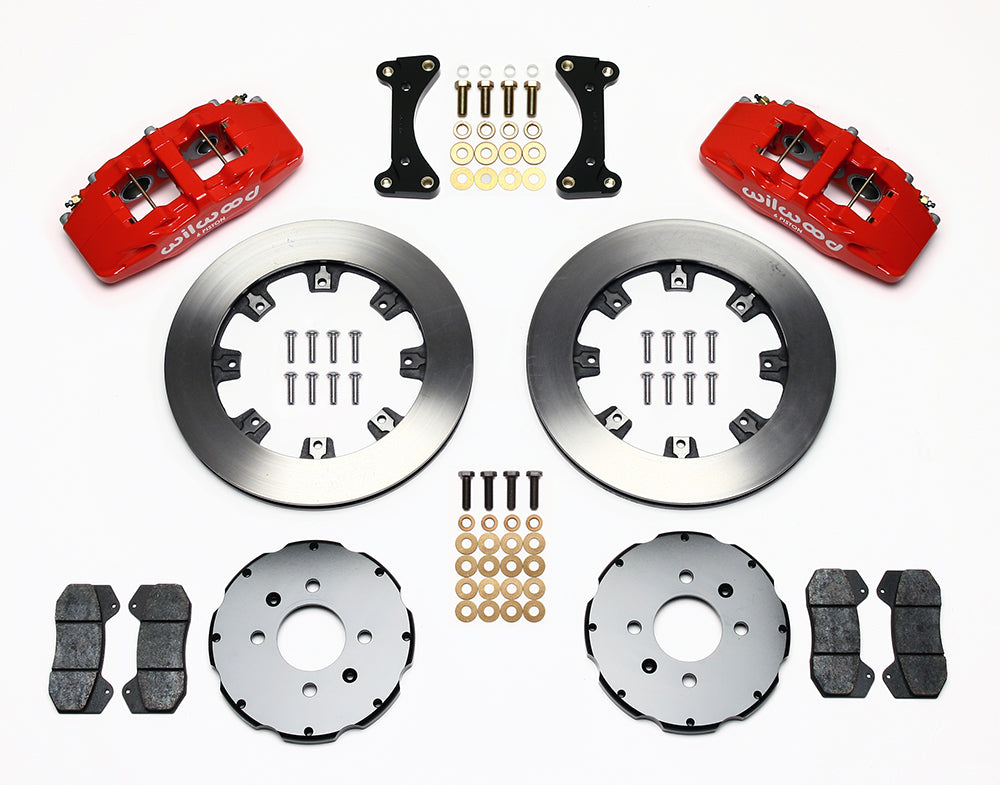

Wilwood front Dynapro 6 kit for Honda/Acura 262 mm factory spindle: red calipers and 12.19-inch plain-face rotor pieces laid out

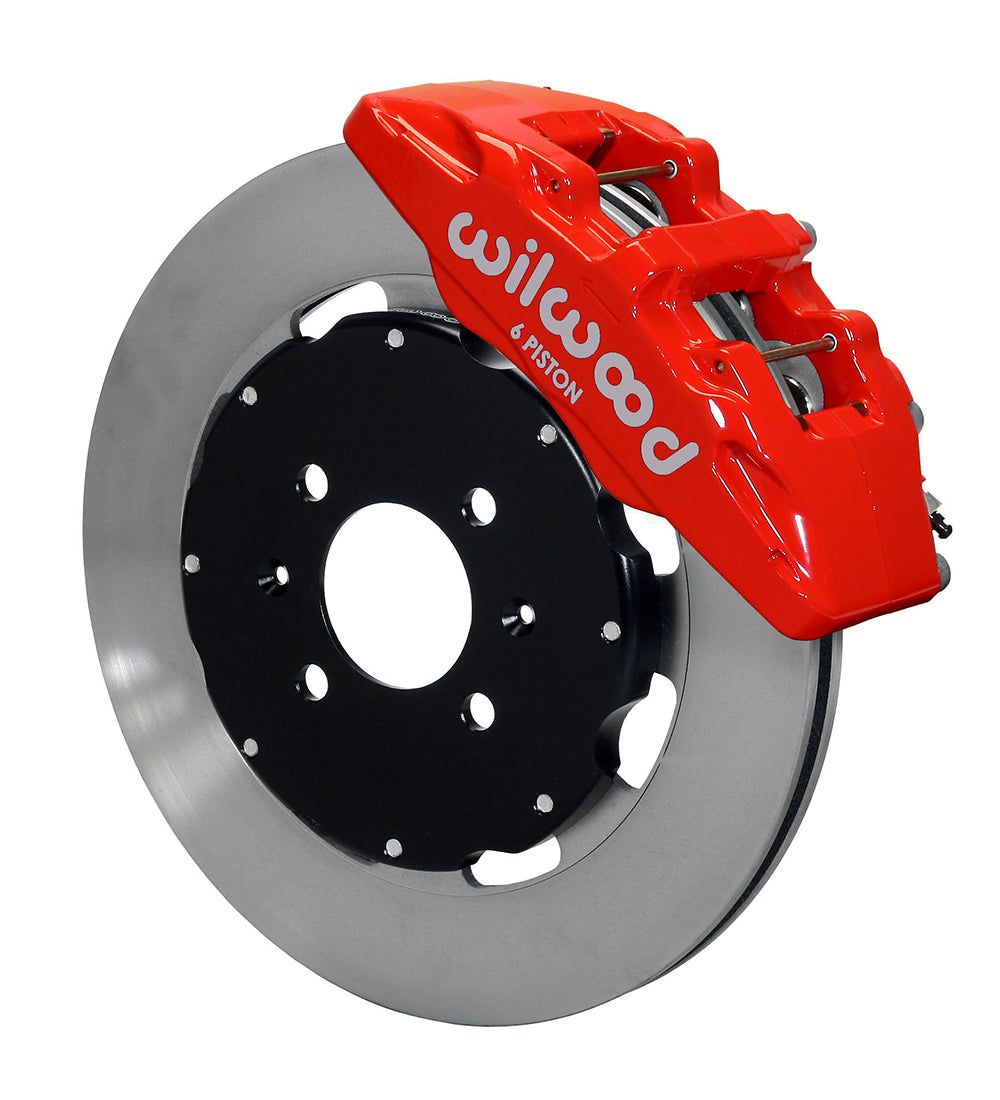

Wilwood front red Dynapro 6 caliper beside a 12.19-inch plain-face rotor, angled assembly for Honda/Acura 262 mm factory spindle
Wilwood front Dynapro 6 kit for Honda/Acura 262 mm factory spindle: red calipers and 12.19-inch plain-face rotor pieces laid out
Wilwood front red Dynapro 6 caliper beside a 12.19-inch plain-face rotor, angled assembly for Honda/Acura 262 mm factory spindle

Wilwood Front Red Plain-Rotor Dynapro Kit, Acura Integra/EL and Honda Civic/Civic del Sol/Fit (1990–2013)

SKU: 140-10735-R

$1,131.65 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Plain 12.19-inch vented rotors and red Dynapro 6 calipers distinguish this Wilwood Honda/Acura package. The hats and brackets are dimensioned for the four-lug hub and factory 262 mm disc spindle. The conversion changes the friction and caliper assembly while retaining the verified existing hub interface. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-10735-R
  • Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hat)
  • Calipers: Dynapro 6; 6 pistons; Red Powder Coat.
  • Bores: 1.38, 1.00, 1.00 inches. Pads: BP-10.
  • Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face, Iron, Plain. 32 vanes.
  • Wheel bolt circles: 4 x 3.93 inches.
  • Included: paired calipers, pads, rotors, brackets and assembly hardware, rotor hats.
  • Not included: hydraulic lines, master cylinder, booster or spindles. Reuse suitable matching components.
  • Conditional wheel minimum: 15 inches. Check the clearance drawing for barrel and spoke offset.

Fitment & Compatibility

Check the exact Integra, EL, Civic, Civic del Sol or Fit application row instead of applying the combined year envelope to every model. Original 240 mm brake spindles require the other kit. Follow DS637 to verify the mounting layout, select hydraulic lines separately and inspect wheel clearance using the complete profile drawing before assembly.

Match the individual model, year, submodel and brake configuration in the fitment table below.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for fitment help.

California Proposition 65 warning — brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1990-1996 Acura Integra All Disc Disc Front Kit 1, 2, 3, 4
1990-1991, 1996-2000 Honda Civic EX Sedan EX Disc Drum Front Kit 1, 2, 3, 4
1992-1995 Honda Civic EX Sedan EX w/ Rear Disc Disc Disc Front Kit 1, 2, 3, 4
1993-1995 Honda Civic Coupe EX AT Disc Drum Front Kit 1, 2, 3, 4
1993-1995 Honda Civic EX Coupe EX Manual Disc Drum Front Kit 1, 2, 3, 4
1994-1995 Honda Civic Sedan LX w/ Auto Disc Drum Front Kit 1, 2, 3, 4
1994-1995 Honda Civic Sedan LX w/ Manual Disc Drum Front Kit 1, 2, 3, 4
1994-1995 Honda Civic EX Coupe EX w/ Rear Disc Disc Disc Front Kit 1, 2, 3, 4
1994-1995 Honda Civic Si Hatchback SI Disc Disc Front Kit 1, 2, 3, 4
1994 Honda Civic del Sol W/ Rear Disc VTEC Disc Disc Front Kit 1, 2, 3, 4
1995-1997 Honda Civic del Sol W/ Rear Disc SI Disc Disc Front Kit 1, 2, 3, 4
1995-1997 Honda Civic del Sol W/ Rear Disc w/ ABS VTEC Disc Disc Front Kit 1, 2, 3, 4
1996-2000 Honda Civic EX Coupe EX Disc Drum Front Kit 1, 2, 3, 4
1996 Honda Civic LX Sedan LX Disc Drum Front Kit 1, 2, 3, 4
1997-2001 Acura Integra All, Except Type-R Disc Disc Front Kit 1, 2, 3, 4
1999-2000 Honda Civic Si Coupe SI Disc Disc Front Kit 1, 2, 3, 4
2001-2005 Acura EL Base All (Canada) Disc Disc Front Kit 1, 2, 3, 4
2001-2003 Honda Civic DX / HX / LX Models Disc Drum Front Kit 1, 2, 3, 4
2001-2003 Honda Civic EX / GX Models Disc Drum Front Kit 1, 2, 3, 4
2002-2003 Honda Civic Si / SiR Disc Disc Front Kit 1, 2, 3, 4
2004 Honda Civic DX / HX Models Disc Drum Front Kit 1, 2, 3, 4
2004-2005 Honda Civic EX / GX / LX Disc Drum Front Kit 1, 2, 3, 4
2005 Honda Civic DX / HX / VP Models Disc Drum Front Kit 1, 2, 3, 4
2007-2013 Honda Fit Base Base Disc Drum Front Kit 1, 2, 3, 4
2007-2013 Honda Fit Sport Sport Disc Drum Front Kit 1, 2, 3, 4
2008-2013 Honda Fit DX DX Disc Drum Front Kit 1, 2, 3, 4
2008-2013 Honda Fit LX LX Disc Drum Front Kit 1, 2, 3, 4
2012 Honda Fit DX-A DX-A Disc Drum Front Kit 1, 2, 3, 4
2012-2013 Honda Fit EX EX Disc Drum Front Kit 1, 2, 3, 4
